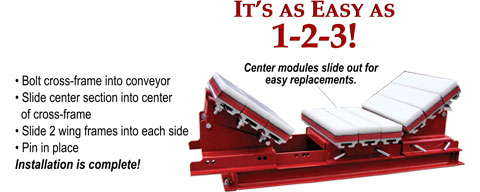

ASGCO’s Modular Impact Beds are 18" long by belt width and are designed for easy change out and maintenance. By simply loosening two pins per segment you can remove the center portion of the bed from either side of the conveyor. ASGCO's impact bars allow tightest segment fit in the industry, eliminating potential material from getting caught.

• Modular impact beds - provide for load support, while helping to eliminate spillage in the load zone.


• ASGCO is the only manufacturer - that provides super absorbent ORG rubber that is 40 durometer and can really take the shock of large material.


• All impact beds - have two 3” channel cross support members for superior resistance against impact.


• Multiple 18” beds - can be assembled to make 18” beds, 36”, 54”, etc.


• Fast delivery - match us against the competition!


• Available with steel or impact rolls as an option

	Download the Modular Impact Beds Brochure
	Download Modular Impact Bed Installation Instructions
