ASGCO Safe-Guard

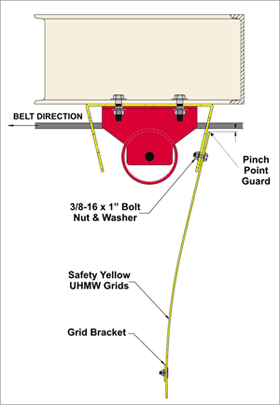

ASGCO has long recognized the importance of ensuring safety in the workplace. The ASGCO Return Idler Guard was designed to prevent injuries from pinch points and to catch the return idler if it should fall.

• Mounting Hardware - made from powder coated A-36 steel.


• Complies with MSHA Title 30;
  • MSHA accepted # IC-174/3
  • 56.14110 (Flying or falling material)
  • 56.14112 (Guard Construction)
  • 56.14107 (Moving machine parts)
  • 75.1722 (Mechanical equipment guards)
  • 77.400 (Mechanical equipment guards)



• Durable UHMW slotted cage - helps prevent material buildup and is easy to clean out using stainless steel fast pins to be able to drop and open side of the cage for maintenance.


• Universal mounting brackets - can be used with CEMA B, C, D and E idlers up to 7” in diameter with either 1 ½” to 6” drop brackets.

Fully adjustable for full range of idler sizes.

Full access for roller replacement and cleaning by removing just 2 pins.

Eliminates potential pinch point.

	ASGCO Safe-Guard Brochure
	ASGCO Safe-Guard Installation Instructions

IMPORTANT: THE SAFE-GUARD RETURN IDLER GUARD IS DESIGNED TO RESTRICT CONTACT WITH THE RETURN IDLER WHILE THE CONVEYOR IS RUNNING. INSTALLATION OF THIS GUARD DOES NOT SUPERSEDE ANY OTHER SAFETY PROCEDURES OR SAFETY PRACTICES. FAILURE TO OBSERVE ALL INSTRUCTIONS COULD RESULT IN SERIOUS INJURY. IT IS THE OWNER'S RESPONSIBILITY THAT THE OWNER AND EACH OPERATOR READ AND BE FAMILIAR WITH THIS MANUAL.

CAUTION: IT IS THE OWNER'S RESPONSIBILITY TO ADJUST THE SAFE-GUARD RESTRICTING ALL CONTACT WITH THE TURNING IDLER.
