ASGCO Wear Liner Products
- ASGCO Armorite™ 700 skirtboard liner is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite provides mazimum protection in high water areas, with the mild steel backing cushioning the white iron enabling it to withstand impact. Armorite is easily weldable with minimal preparation.
- ASGCO X-WEAR™ wear liner sets new standards of performance in the toughest industrial applications. Operating cost reductions of 25-90% are typical when X-WEAR is used to replace steels, chromium carbide overlays, rubber and urethane.
- ASGCO MINE DUTY X-WEAR™ wear liner is made of extremely hard ceramics that provide unsurpassed resistance to abrasive wear while the rubber effectively dampens the impact forces that can crack the ceramic rods. The resilient rubber matrix that surrounds the ceramic rods is hot vulcanized for superior adhesion.
|
|
ASGCO X-Wear
Wear and impact resistant alternative that makes steel and chromium carbide obsolete
|
ASGCO Mine Duty X-Wear
Made of extremely hard ceramics that provide unsurpassed resistance to abrasive wear
|
X-Wear™ (AR) Angled & Straight Hardox 400 Steel Available
|

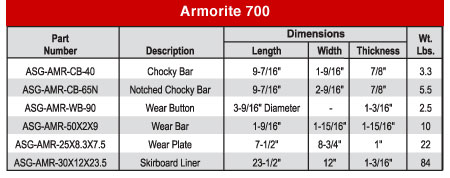

ARMORITE™ 700
TYPICAL BOND ZONE
Product Features:
- White Iron: Modified AS2027 15/3 Cr Mo
- Vacuumed brazed and liquid nitrogen cooled to achieve a high strength joint
- Mild steel backing offers strength, machinability, and impact resistance
- Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
- Ease if fitment, very versitile

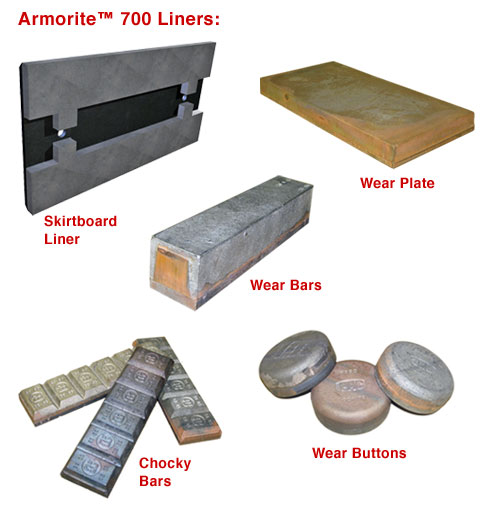

Armorite™ Product
Benefits:
- Lower operating costs
- Longer Service when compared to conventional materials
- Increased production
- Improved product efficeincy
- Increased equipment availability
Armorite™ Applications:
- CHUTE LININGS
- ROCK-BOX EDGES
- GRIZZLY CAPS/SCREENS
- TRANSFER POINTS
- IMPACT PLATES
- DISTRIBUTOR PLATES
- ARM/HUB LINERS
- BIN LINERS
- HOPPER WEAR PLATES
- DIVDER/SPLITTER BARS
- GENERAL WEAR PROTECTION
- LINER PANELS
|
