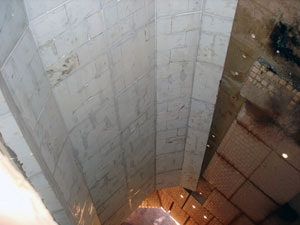

ASGCO's Chute Linings and Skirtboard are designed to be an integral part of a conveyor system. Our pre-engineered chute lining protects and cushions the chute from the material being handled; Skirtboard prevents fugitive materials from escaping and damaging the conveyor loading areas. We can build, design, fabricate and install chutes, and also repair and re-align existing chutes.

• Ceramic liners - delivers ultimate performance where extreme heat is a problem. Also protects against most acids, solvents, salt and alkaline solutions.

• A-R 400 steel liners - highly abrasion resistant material used for skirtboard liners in medium sized aggregate hoppers and chutes.

• P-88 - high release UMHW material, with a low friction factor to resist sticking. Primarily used in coal bunkers and hoppers.

• Rubber Chute/Tank liners - superior protection against impact, noise, and abrasive materials.

Armorite™ 700 is an extremely hard, laminated bi-metalic, wear resistant composite, which has a normal hardness of 700 BHN (63Rc) produced by combining a highly alloyed chromium-molybdenum white iron (to AS 2027 15/3 Cr/Mo) and metallurgically bonding it to a mild thick steel backing plate. The resultant bond possesses high shear strength of over 250 Mpa and will not separate.

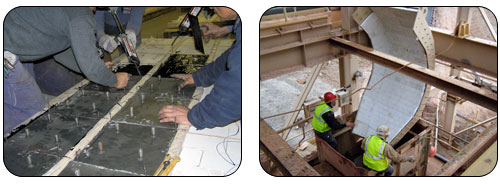

These techniques are easily applied to both existing and new installations, resulting in significant cost improvements and system efficiencies. Combined with our conveyor and material handling knowledge, engineering capabilities and complete turn-key installation services, we are able to make transfer point problems a thing of the past.
