Dual Tru-Trainer Conveyor Belt Tracker

  • SetWidth260-dualreturn-inapp03 Dual Return Tru-Trainer belt tracker in application.
  • SetWidth260-dual-return-tt-in-app05 Dual Return Tru-Trainer belt tracker in application in a underground coal mine.
  • SetWidth260-dual-return-tt-in-app06 Dual Return Tru-Trainer belt tracker in application in a Phosphate mine.

Dual Tru-Trainer Conveyor Belt Tracker

The Tru-Trainer series of conveyor belt tracking idlers are a patented design that offers the most reliable and re-active tracking idlers available today.

The Dual Return Tru-Trainer was developed to accommodate the excessive forces encountered with wide conveyor belts and heavy loads. An external central pivot mechanism was designed, obviating the need for a single, large drum, and enabling a concentric and balanced rotation to be achieved. This results in extended bearing life and a very fast and effective conveyor belt tracking system.

Two separate tapered rolls are mounted into the pivot mechanism, which can be individually replaced as wear occurs.

  • Specifically designed for high speed, aggressive conveyor belts having a high capital cost
  • Trainer rolls - can be individually replaced
  • Easy installation
  • Low maintenance
  • Vibration free rolling action
  • Minimum force to activate training mechanism
  • No contact with edge of belt
  • Operates in all conditions - wet and dry conveyors

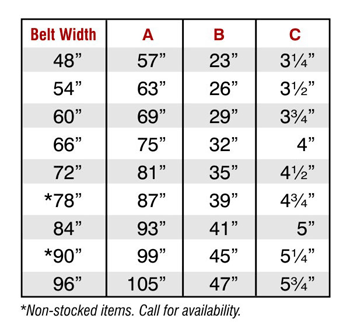

Dual Return Tru-Trainer Chart

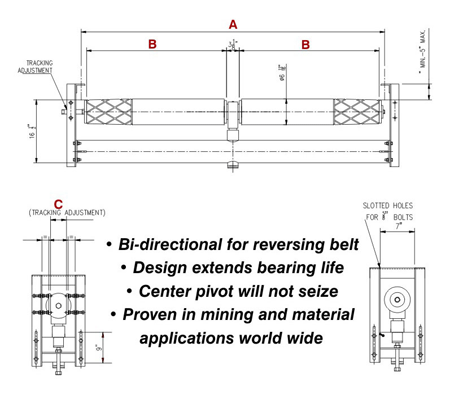

Dual Return Tru-Trainer Diagram
