Dura-Sleeve Return Idler

• Quote Request
• Contact Us

• PRODUCT BROCHURE

• ASGCO Dura-Sleeve Idler, in steel plant operation.
• Patented Replaceable Sleeves are also available for both CEMA D and E idlers.
• Our Dura-Sleeves prevent the conveyor belt from getting caught between conventional style rubber and urethane disc idlers.

Dura-Sleeve Return Idler

Dura-Sleeve return idlers are a patented abrasion resistant urethane sleeve that is easily clamped on any existing or new rubber or urethane disc return idler shaft.

• Patented Design- of our idler sleeve clamping system utilizes you to replace worn out rubber or other urethane disc return idlers.


• Abrasion Resistant Urethane- compounds provide wear ability that exceeds 5 times the wear life of standard rubber disc return idlers.


• Meets all CEMA Standards - and available in any conveyor belt width and inside and outside roller diameter.

Replace your existing rubber and urethane disc return idlers with our individual sleeves, without replacing the entire idler.

• ASGCO - Thane construction for extra long wear.
• 5 year warranty
• Perfect concentricity promotes better belt tracking
• Long wearing life in abrasive environments
• No material build-up

Patented Replaceable Sleeves are also available for both CEMA D and E Idlers.

3 Year Guarantee - ASGCO offers the longest warranty on any Dura-Sleeve idler.

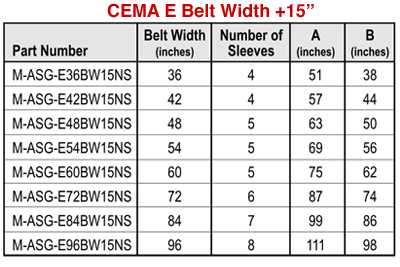

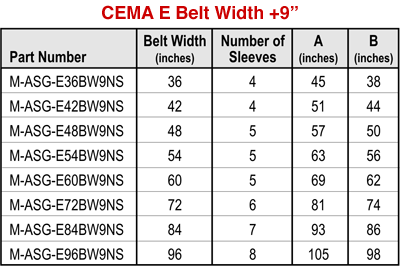

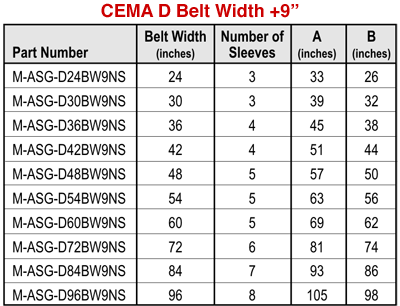

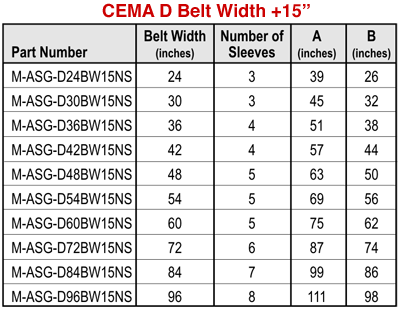

Dura-Sleeve Part Numbers
