Tru-Trainer Dual V-Return Conveyor Belt Tracking System

Tru-Trainer Dual V-Return Conveyor Belt Tracking System

The Tru-Trainer Dual V-Return was developed to accommodate the excessive forces encountered with V-Return idler conveyors, systems and structures.

  • Two Separate Tapered Rollsare mounted into the pivot mechanism and can be individually replaced as wear occurs

  • Designed for High Speed/PIW Conveyors- to operate and last in severe conditions, wet and dry, and aggressive mining conditions

  • Accommodates Excessive Force - encountered with wide belts and heavy loads

  • Enhanced Sealing/Bearing System - needle thrust and tapered roller bearings and enhanced sealing system for the most aggressive mining conditions

  • Individual Rollers for Easy Replacement - separate tapered rolls are mounted onto the pivot mechanism, which can be individually replaced as wear occurs

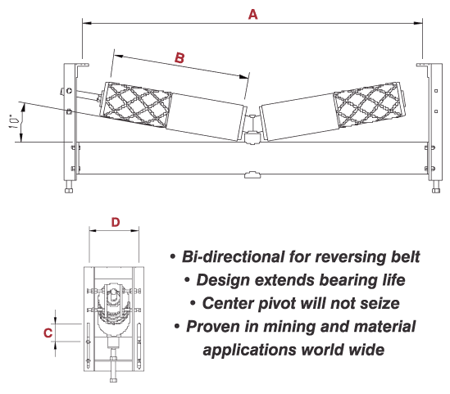

V-Return Conveyor Belt Idler Diagram
