Safe-Guard® Conveyor Belt Lifter

The Safe-Guard® Conveyor Belt Lifter  is designed and built for the highest safety rating available. This device is designed to lift a tensioned trough or return side of a conveyor belt to be able to remove and install idlers on the conveyor system safely.

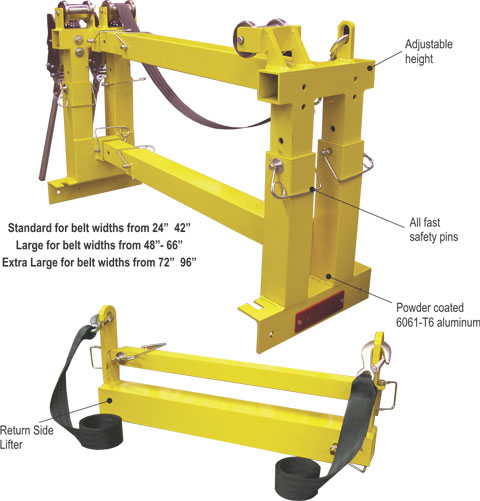

SG Conveyor Belt Lifter_2_web Design Feature

• Allows workers to safely remove/install both
trough and return side idlers without the weight
of the tensioned conveyor belt.

• Powder coated and manufactured from
lightweight 6061-T6 aircraft grade aluminum.

• Versatile mounting allows one model to
accommodate several standard CEMA and
common underground conveyor structure
and idler types.

• Safely lift conveyor belts under tension from
flat to trough belts up to 45° and belts for flat
and v-returns idlers.

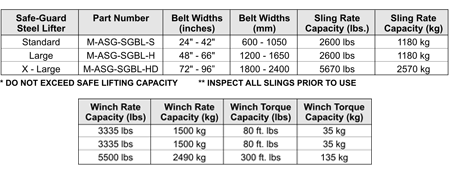

SG Conveyor Belt Lifter_chart1_web
*
Do not exceed safe lifting capacity of 5000 lbs/2268kg.

** Inspect all slings prior to use.
*** See vertical lift capacity on page 2 of installation guide
(This is different from sling capacity)



ImportantSG Conveyor Belt Lifter_3_web

The Safe-Guard® Belt Lifter is designed to lift
a tensioned trough or return side of a conveyor
belt to be able to remove and install idlers on
the conveyor system safely. Installation of this
belt lifter does not supersede any other safety
procedures of safety practices. Failure to
observe all instructions could result in serious
injury. It is the owner’s responsibility that the
owner and each operator read and be familiar
with the ASGCO® Installation Guide.

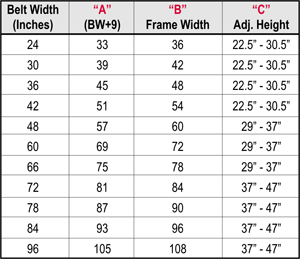

SG Conveyor Belt Lifter_chart2_web
