Safe-Guard® Return Roll Changer


Safe-Guard® Return Roll Changer

The Safe-Guard® Return Roll Changer allows you to remove and replace a roller from a single side of the conveyor and/or from whichever side of the catwalk is located.

Design FeatureSG_Belt_Roll Changer_AP2_web

• For universal mounting, Safe-Guard® Return Roll
Changer can be mounted on either side of the
conveyor system.

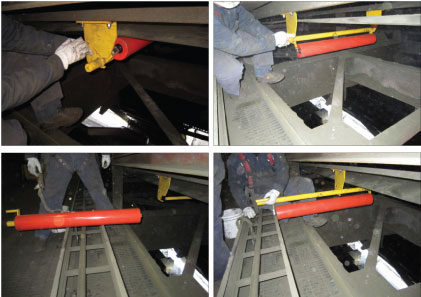

One Side Return Roller Access allows removal and
replacement from a single side of the conveyor.

Provides pinch point protection to prevent injuries.

Reduces maintenance time for roller replacement.

Eliminates need for high lift equipment.

All steel construction coated finish with industrial
grade powder.

Can be customized to fit any manufacturer’s roller.

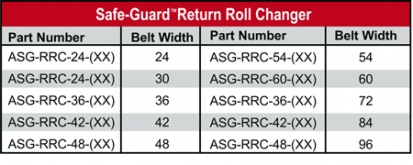

SG Return Roll Changer Chart
(XX) = 1.5 or 4.5 (drop Bracket Height)

NOTE: We need the idler manufacturer and part number at time of order.


The Safe-Guard® Return Roller Changer is designed to allow you to remove and replace a roller from a single side of a conveyor and whichever side the catwalk is located. Installation of this Safe-Guard® Roller Changer does not supersede any other safety procedures of safety practices. Failure to observe all instructions could result in serious injury. It is the owner’s responsibility that the owner and each operator read and be familiar with the ASGCO® Installation Guide.


It is the owner’s responsibility to adjust the Safe-Guard® restricting all contact with the turning idler.
U.S. Patent #8,387,781
