Impact Bed/Slide-N-Seal Conveyor Slider Bed

  • SetWidth260-Slide-N-Seal-diagram Slide-N-Seal and ASGCO Clamp-Mount Skirting System

Impact Bed/Slide-N-Seal Conveyor Slider Bed

Slide-N-Seal load zone support impact beds provide effective conveyor belt support utilizing bars with most usable depth available, while helping to eliminate spillage in the load zone. Every bed is designed around solving the problem of any given mining application.

  • Load Zone Supported - by heavy-duty steel frames and our standard 3” (75mm) high, by 4” (100mm) wide UHMW rails.
  • Skirting Sealed - by the low friction UHMW bars that provide a flat surface for the skirting material to seal effectively.
  • Modular Designed - custom-built beds can be made into 2' (600mm), 4' (1200mm) or 5' (1500 mm) long and to match any troughing angle.

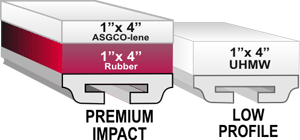

Impact Bed graph

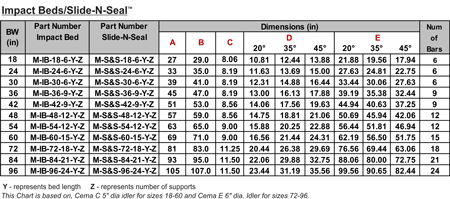

Slide-N-Seal diagram

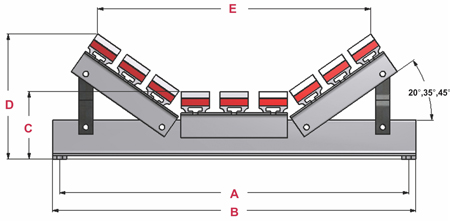

Slide-N-Seal diagram

Read the case study on our blog "ASGCO Conveyor Impact Beds Provide Spillage Solutions for a Coal Peparation Plant."
