B&R Dura-Seal Conveyor Skirtboard Sealing Compounds

Back

Provides Optimum Sealing and Minimum Wear

For optimum sealing and minimum wear on the conveyor belt, engineered for harsh environments.


  • A blend of natural rubber – with high tensile and tear resistance. The lower half is the same compound as used with Dura-Seal (ORG)(45) for its excellent sealing ability, and the upper half is the same as used with Dura-Seal (60) for its cut and abrasion resistance.
  • Dura-Seal (ORG 45) – compound for optimum sealing and minimum wear on the conveyor belt. Engineered to meet harsh conveyor environments.
  • Dura-Seal (60) – compound for best wear and impact resistance in the load zone. Exceptional Sealing – in abrasive and impact area conditions where cut and gauge is a problem, as seen in hard rock mining.

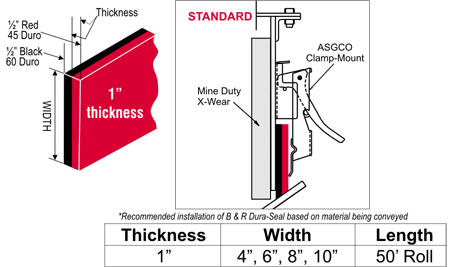

Dura-Seal Diagram

duraseal-br-diagram

duraseal-org-wclampmnt_2

ASGCO B&R Dura-Seal with Clamp-Mount
on angled support plate
