X-Wear (AR) Conveyor Wear Liners

  • SetWidth260-xwear-in-app Armorite X-Wear in Application

X-Wear (AR) Conveyor Wear Liners

ASGCO X-Wear (AR), conveyor wear liners protect your skirtboard and extend the life and effectiveness of your sealing compound. Use the straight design where belts are fully loaded and full chute width needs to be maintained. The angled deflector plate wear liner wil force larger material to the center of the belt.

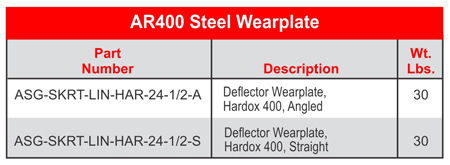

X-Wear (AR) Skirtboards

Angled & Straight Hardox 400 Steel

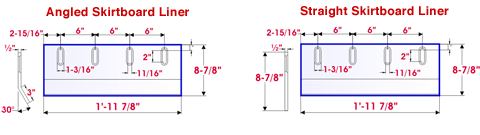

X-Wear (AR) Skirtboard diagram

ASGCO Armorite™ is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite provides maximum protection in high water areas, with the mild steel backing cushioning the white iron enabling it to withstand impact. Armorite is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

Product Features:

  • White Iron: Modified AS2027 15/3 Cr Mo
  • Vacuumed brazed and liquid nitrogen cooled to achieve a high strength joint
  • Mild steel backing offers strength, machinability, and impact resistance
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
  • Ease if fitment, very versitile

Bond Zone Layers

Armorite™ Product Benefits:

  • Lower operating costs
  • Longer Service when compared to conventional materials
  • Increased production
  • Improved product efficeincy
  • Increased equipment availability

Armorite™ Applications:

  • CHUTE LININGS
  • ROCK-BOX EDGES
  • GRIZZLY CAPS/SCREENS
  • TRANSFER POINTS
  • IMPACT PLATES
  • DISTRIBUTOR PLATES
  • ARM/HUB LINERS
  • BIN LINERS
  • HOPPER WEAR PLATES
  • DIVDER/SPLITTER BARS
  • GENERAL WEAR PROTECTION
  • LINER PANELS
