Armorite Star Conveyor Wear Plate

Armorite Star Plate multi-shaped wear resistant plate, offers a cost effective, long wearing alternative  to the standard sheets and AR wear plate that must be cut and fitted using special tools and equipment.

  • Standard size 400mm square, 23mm thick to suit most linings
  • Beveled edges for to reduce hanging of material and chipping of edges
  • Cast notches on wear surface and slotted backs allow for ease of breaking using pressure
  • A standard plate creates many different shapes and sizes
  • Easy to use and install with no pre or post heating
  • Shapes and designs can be modified to suit specific needs

Armorite Star Plate is ideal for conveyor systems, including; chutes, bins, buckets, hoppers and truck bed linings.

Star Plate features:

  • Reduced weight (compared to AR plates).
  • Easy to use and install.
  • Can replace worn, individual sections rather than whole plate or sheet
  • Longer wear life - more cost effective

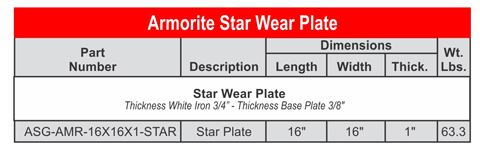

Wear Button Spec Chart

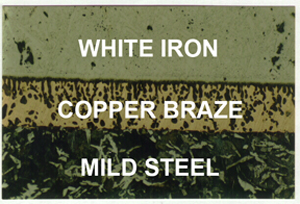

ASGCO Armorite™ is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite provides maximum protection in high water areas, with the mild steel backing cushioning the white iron enabling it to withstand impact. Armorite is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

Product Features:

  • White Iron: Modified AS2027 15/3 Cr Mo
  • Vacuumed brazed and liquid nitrogen cooled to achieve a high strength joint
  • Mild steel backing offers strength, machinability, and impact resistance
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
  • Ease if fitment, very versitile



Armorite™ Product Benefits:

  • Lower operating costs
  • Longer Service when compared to conventional materials
  • Increased production
  • Improved product efficeincy
  • Increased equipment availability

Armorite™ Applications:

  • CHUTE LININGS
  • ROCK-BOX EDGES
  • GRIZZLY CAPS/SCREENS
  • TRANSFER POINTS
  • IMPACT PLATES
  • DISTRIBUTOR PLATES
  • ARM/HUB LINERS
  • BIN LINERS
  • HOPPER WEAR PLATES
  • DIVDER/SPLITTER BARS
  • GENERAL WEAR PROTECTION
  • LINER PANELS
