Mine Duty X-Wear Conveyor Wear Liners

ASGCO Mine Duty X-WEAR in application.
Unique zigzag pattern prevents wear channeling.

Mine Duty X-Wear Conveyor Wear Liners

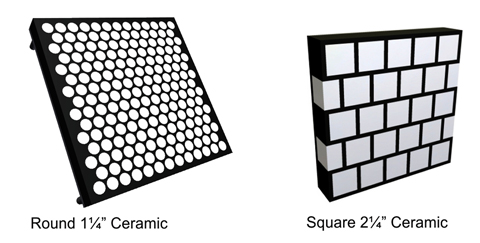

ASGCO Mine Duty X-Wear™ is made of extremely hard ceramics that provide unsurpassed resistance to abrasive wear while the rubber effectively dampens the impact forces that can crack the ceramic rods. The resilient rubber matrix that surrounds the ceramic rods is hot vulcanized for superior adhesion.

Advanced Hard Ceramic Wearplate
Easy To Install
Reduces Noise
Unsurpassed Resistance
Impact Resistant
Smooth Surface
Longest Wear Life Available

Wide Range of Use - Mine Duty X-Wear is mainly used in the mining and quarrying industries, where severe abrasion occurs and the angles of impact are low.

Excellent Wear Protection for tough mining conditions were there is a need for both wear protection and low noise materials.

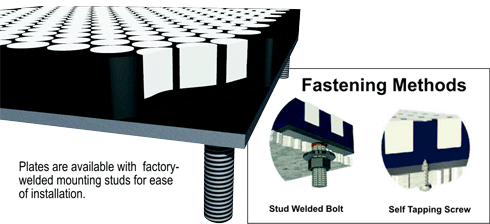

1/4" Steel Backing is suitable for stud welding, plug welding or self-tapping screws.

Plates are available with factory-welded mounting studs for ease of installation.

Typical Examples:

Transfer points in conveyor systems
Screen chutes
Deflectors / Feeders
