Armorite™ Grizzly Screen Cap Conveyor Wear Bars

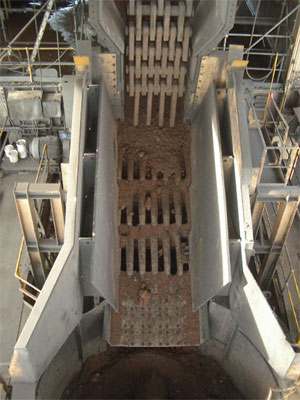

Armorite Grizzly Screen Cap Wear Bars in application.

Armorite™ Grizzly Screen Cap Conveyor Wear Bars

Armorite™ Grizzly Screens will reduce wear and increase the life of a crusher. By removing fines upstream of the crusher as well as spreading bulk material so it is distributed over the width of the crusher, it wears evenly and the life is greatly extended.

Ideal for aggregates and coal mining applications
Reduces wear and extends the life of crushers
Reduced conveyor downtime & maintenance costs.
Simple rugged designs

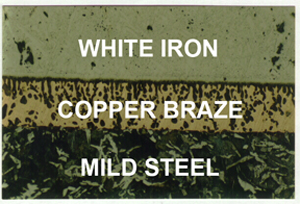

ASGCO Armorite™ is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite provides maximum protection in high water areas, with the mild steel backing cushioning the white iron enabling it to withstand impact. Armorite is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

Product Features:

White Iron: Modified AS2027 15/3 Cr Mo
Vacuum brazed and liquid nitrogen cooled to achieve a high strength joint
Mild steel backing offers strength, machinability, and impact resistance
Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
Ease of fitting, very versatile

Armorite™ Product Benefits:

Lower operating costs
Longer Service when compared to conventional materials
Increased production
Improved product efficeincy
Increased equipment availability

Armorite™ Applications:

CHUTE LININGS
ROCK-BOX EDGES
GRIZZLY CAPS/SCREENS
TRANSFER POINTS
IMPACT PLATES
DISTRIBUTOR PLATES
ARM/HUB LINERS
BIN LINERS
HOPPER WEAR PLATES
DIVDER/SPLITTER BARS
GENERAL WEAR PROTECTION
LINER PANELS
