Armorite™ Skirtboard Conveyor Wear Liners

  • SetWidth260-Armorite30 This Armorite Skirtboard Wear Liner has been in service in hard rock mining for 1 year and has handled 12 million tons. Previously, AR400 lasted only 6 to 8 weeks in this same application.

Armorite™ Skirtboard Conveyor Wear Liners

ASGCO Armorite™ Skirt Wear Liners protect your skirtboard and provide a significantly longer wear life. Armorite™ is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite provides maximum protection in high water areas, with the mild steel backing cushioning the white iron enabling it to withstand impact. Armorite is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

  • Reduces conveyor downtime and maintenance costs.
  • Designed to be rotated 180º for long wear life.
  • Custom designs to meet customer requirements.

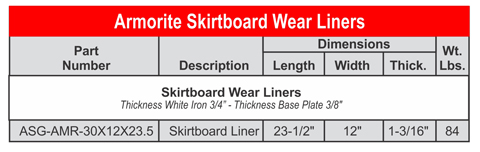

  • The skirt wear liner is produced from 20mm thick Armorite that is enhanced with a 10mm thick mild steel producing a product that is 700 BHN with a high impact resistance.
  • For all conveyors and transfer points where the eradication of spillage or centralization of load is required.

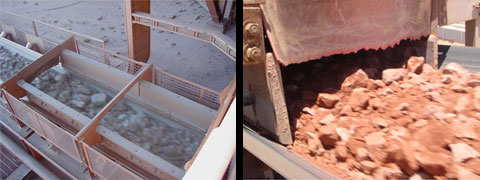

Armorite conveyor wear liners in application

ASGCO Armorite™ is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite provides maximum protection in high water areas, with the mild steel backing cushioning the white iron enabling it to withstand impact. Armorite is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

Product Features:

  • White Iron: Modified AS2027 15/3 Cr Mo

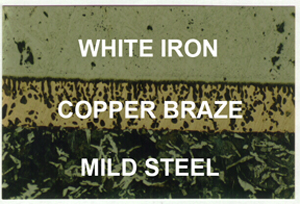

  • Vacuumed brazed and liquid nitrogen cooled to achieve a high strength joint
  • Mild steel backing offers strength, machinability, and impact resistance
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
  • Ease if fitment, very versitile



Armorite™ Product Benefits:

  • Lower operating costs
  • Longer Service when compared to conventional materials
  • Increased production
  • Improved product efficeincy
  • Increased equipment availability

Armorite™ Applications:

  • CHUTE LININGS
  • ROCK-BOX EDGES
  • GRIZZLY CAPS/SCREENS
  • TRANSFER POINTS
  • IMPACT PLATES
  • DISTRIBUTOR PLATES
  • ARM/HUB LINERS
  • BIN LINERS
  • HOPPER WEAR PLATES
  • DIVDER/SPLITTER BARS
  • GENERAL WEAR PROTECTION
  • LINER PANELS
