Armorite™ Smooth Conveyor Wear Plates

The Armorite Smooth Conveyor Wear Plate in application.

Armorite™ Smooth Conveyor Wear Plates

Armorite™ Wear Plates present a very cost effective method of extending wear life within the conveyor system including; chutes, hoppers, bins, impact walls and screen plates. Extreme abrasion resistance across a range of industrial mining applications.

Custom designs available to meet customer requirements.
Rubber backing available to reduce noise and vibration.
Optional Nelson studs supplied ex works.
Liner size allows for localized replacement in high wear areas.
Reduced conveyor downtime & maintenance costs.
3/4" Armorite (white iron) molded to a mild steel backing plate.

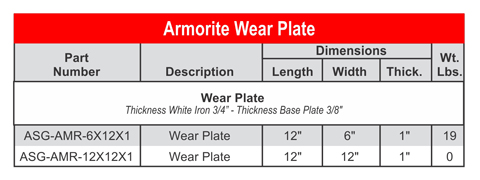

Wear Plate Spec Chart

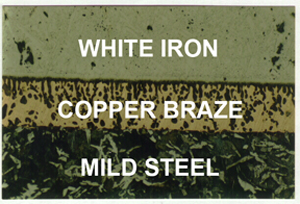

ASGCO Armorite™ is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite provides maximum protection in high water areas, with the mild steel backing cushioning the white iron enabling it to withstand impact. Armorite is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

Product Features:

White Iron: Modified AS2027 15/3 Cr Mo
Vacuumed brazed and liquid nitrogen cooled to achieve a high strength joint
Mild steel backing offers strength, machinability, and impact resistance
Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
Ease if fitment, very versitile

Armorite™ Product Benefits:

Lower operating costs
Longer Service when compared to conventional materials
Increased production
Improved product efficeincy
Increased equipment availability

Armorite™ Applications:

CHUTE LININGS
ROCK-BOX EDGES
GRIZZLY CAPS/SCREENS
TRANSFER POINTS
IMPACT PLATES
DISTRIBUTOR PLATES
ARM/HUB LINERS
BIN LINERS
HOPPER WEAR PLATES
DIVDER/SPLITTER BARS
GENERAL WEAR PROTECTION
LINER PANELS
