E-Z Skalper® Belt Cleaner


Effective Carry-back Removal In The Toughest Environments

The E-Z Skalper® conveyor belt pre-cleaner provides effective carry-back removal in the toughest environments. The patented blade is designed to remove high volumes of material and carry back from the conveyor belt for for optimal conveyor performance.

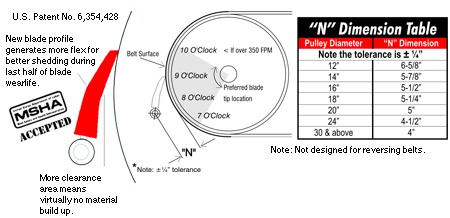

Features & BenefitsE-Z Skalper_Chart

Excellent Performance – of our patented E-Z Skalper® blade design
is available in a 1-piece blade or segmented blades that can be
changed for the optimum in a blade coverage across the belt’s material
carry path for better cleaning efficiency.

Advanced Composites – using ASGCO®’s experience with urethane
composites, provides belt cleaner blades that can handle the toughest
environments; Aggregate, Cement, Coal, Gypsum, Potash, Pulp
and Paper and Coal industries.

E-Z Torque® Tensioner – (lifetime warranty) patented – made of all
304 stainless steel mounting plates, collars and springs allows the
blades to self adjust throughout the entire life of the blade and is the
most robust and accurate belt cleaner tensioner in the industry.

Combined with the E-Z Torque® tensioner, the Skalper® primary
belt cleaning system provides our customers with a belt cleaner
that can handle the most extreme corrosive and weather conditions.

Blade AngleE-Z Skalper_Angle Blade

A flat pulley surface side of the blade
ensures a sharp point contact and
material clearance.

  • More Aggressive
  • Self-Sharpening
  • Less Abrasion Between Blade and Belt
  • Less Chance of Blade Feathering

E-Z Skalper_Available Blades








Product Specifications
  • Maximum Belt Speed – 1000 fpm (5.0 m/sec)
  • Pulley Diameter – 16″ – 36″ (400 – 900mm)
  • Applications – Cement, Wood Processing, Recycling, Hard Rock Mining,
    Steel Mills, Iron Ore, Aggregate and Mineral (Phosphate, Potash, Salt) Mining

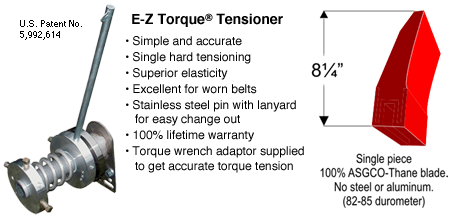

E-Z Skalper_EZ Torque
E-Z Skalper® with E-Z Torque® Tensioner

Also available with Force-1™ Tensioner

  • Simple and Accurate
  • Superior Elasticity
  • Excellent for worn belts
  • Stainless steel pin with lanyard
    for easy change-out
  • Single hand tensioner
  • Torque wrench adaptor supplied
    to get accurate torque tension.
  • 100% Lifetime warranty
  • US Patent Number 5,992614
