Read More >PERFECT FOR SMALL DIAMETER PULLEYS WHERE SPACE IS AN ISSUE
Design Features
- Excellent Performance – of our patented Mini-Skalper® blade design maintains an effective cleaning edge throughout the life of the blade and can be changed for the optimum in blade coverage across the belt’s material carry path for better cleaning efficiency.
- Blade Cartridge – allows for easy change out of scraper blades from either side of the conveyor.

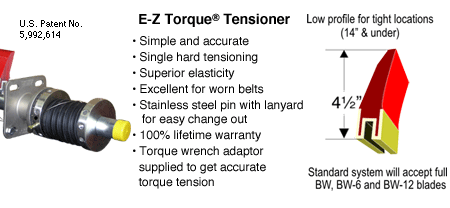

- E-Z Torque® Tensioner – (lifetime warranty) patented- made of all 304 stainless steel mounting plates, collars and springs allows the blades to self adjust throughout the entire life of the blade and is the most robust and accurate belt cleaner tensioner in the industry.
- One-Time Tensioning – the patented E-Z Torque® tensioner maintains constant tension throughout the life of the blade.
- Combined with the E-Z Torque® tensioner – the Mini-Skalper® primary belt cleaning system provides our customers with a belt cleaner that can handle the most extreme corrosive and weather conditions.

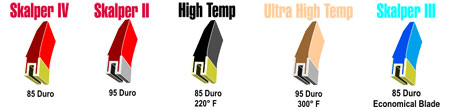

Skalper® Blade Options and Specifications

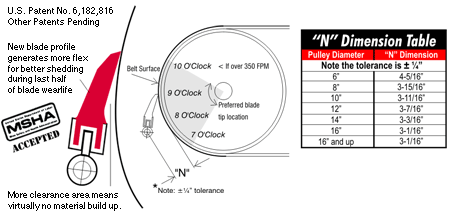

BLADE ANGLE
A flat pulley surface side of the blade ensures a sharp point contact and material clearance.
- More Aggressive
- Self-Sharpening
- Less Abrasion Between Blade and Belt
- Less Chance of Blade Feathering
Part Numbers
Mini-Skalper® IV Systems with E-Z Torque® Tensioner (Full Belt Width)
| Part Number | Belt Width in. | Belt Width mm. | Blade Width in. | Blade Width mm. | Weight lbs |
|---|---|---|---|---|---|
| M-SK4-MSYS-12-EZT-1 | 12 | 300 | 12 | 300 | 40 |
| M-SK4-MSYS-18-EZT-1 | 18 | 450 | 18 | 450 | 43 |
| M-SK4-MSYS-24-EZT-1 | 24 | 600 | 24 | 600 | 46 |
| M-SK4-MSYS-30-EZT-1 | 30 | 750 | 30 | 750 | 49 |
| M-SK4-MSYS-36-EZT-1 | 36 | 900 | 36 | 900 | 52 |
| M-SK4-MSYS-42-EZT-1 | 42 | 1500 | 42 | 1500 | 56 |
| M-SK4-MSYS-48-EZT-1 | 48 | 1200 | 48 | 1200 | 61 |
Part Numbers
Mini-Skalper® IV Systems with E-Z Torque® Tensioner (BW-6)
| Part Number | Belt Width in. | Belt Width mm. | Blade Width in. | Blade Width mm. | Weight lbs |
|---|---|---|---|---|---|
| M-SK4-MSYS-12-EZT-6-1 | 12 | 300 | 6 | 150 | 40 |
| M-SK4-MSYS-18-EZT-12-1 | 18 | 450 | 12 | 300 | 42 |
| M-SK4-MSYS-24-EZT-18-1 | 24 | 600 | 18 | 450 | 44 |
| M-SK4-MSYS-30-EZT-24-1 | 30 | 750 | 24 | 600 | 46 |
| M-SK4-MSYS-36-EZT-30-1 | 36 | 900 | 30 | 750 | 48 |
| M-SK4-MSYS-42-EZT-36-1 | 42 | 1500 | 36 | 900 | 50 |
| M-SK4-MSYS-48-EZT-42-1 | 48 | 1200 | 42 | 1050 | 52 |
