Skalper III ® with Force-1 ® Quarry Duty Conveyor Belt Cleaner

• Quote Request
• Contact Us

• PRODUCT BROCHURE
• INSTALLATION INSTRUCTIONS

• Skalper III conveyor belt cleaner in operation at a sand and gravel plant
• Good primary conveyor cleaner for less aggressive applications.

Skalper III ® with Force-1 ® Quarry Duty Conveyor Belt Cleaner

The Skalper III conveyor belt pre-cleaner features the Skalper blade design and an effectively simple and accurate Force-1 tensioner with an economical price tag. The urethane composites used in the Skalper III blade are designed for the sand and aggregate industries.

• Excellent Performance - of our patented Skalper Blade design maintains an effective belt cleaning edge throughout the life of the blade and can be changed for the optimum in blade coverage across the belt’s material carry path for better cleaning efficiency.


• Quick-Change Blade - stainless steel pin blade change-out system is a one-minute, no-tool operation on the conveyor.


• Force-1 Tensioner - (lifetime warranty) all stainless steel tensioner provides the effective tension to the Skalper blade as it self-adjusts and can be easily reset to optimal blade tension.


• Skalper III System - can be upgraded to the E-Z Torque or Roto-Twist belt cleaning systems.

---

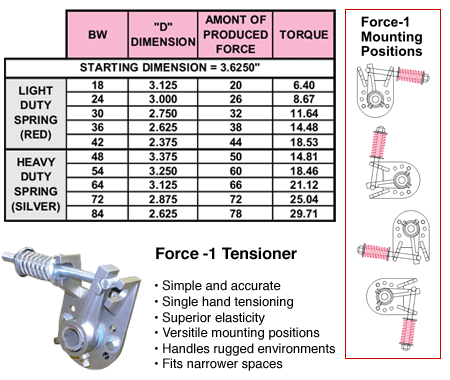

Tensioner Compression Calculation Chart

---

Skalper System also available with these blades:

---

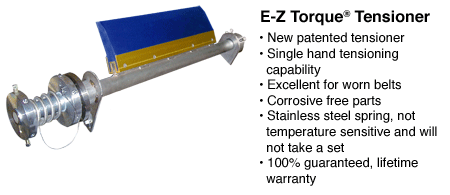

Skalper III Belt Cleaning System also available with E-Z Torque Tensioner:
