Chevron™ Belt Cleaner

Back

Speed and Force Of Belt Rolling

The Chevron secondary conveyor belt cleaner uses the speed and force of the belt rolling over our patented rubber disks. The unique rotary fingers are forced against the base of the chevrons to dislodge material from the belt.



Features & BenefitsChevron_part number chart_web

Patented – concave shaped rubber discs perform a sweeping action
to clean Chevron, raised top or grooved conveyor belts

Sweeping Action – unique rotary fingers remove the carry-back and
is designed to work only when the conveyor belt is running

Easy Maintenance – no motors, air nozzles, or other problematic equipment to maintain

Works Great – in the pulp and paper, fertilizer, potash, and other bulk
material industries where chevron style belts are heavily used

Solid or Notched – 8” (200mm) diameter abrasion resistant rubber disks
are available depending on the spacing of the chevrons and the conveyor
belt speed

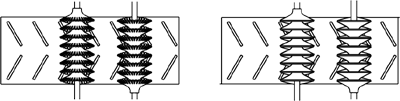

System – Single or dual system for better cleaning

Available – in rubber, urethane, solid or notched disks



Product Specifications

  • Maximum Belt Speed – 500 (1.5 m/sec)
  • Applications – Wood Processing, Mineral (Phosphate, Potash, Salt) Mining, Recycling


Chevron™ Urethane Discs

Unique rotary fingers are forced against the base of the
chevrons to dislodge material from the belt.

  • 8” abrasion resistant urethane discs provide a gentle, thorough
    squeegee action for very effective cleaning
  • Disks are independently flexible so each disk rapidly adjusts
    to belt variation, wear and cupping
  • Disks work well on vulcanized or mechanical splices
  • Disk life is one to four years depending on material and
    operating conditions
  • Handles corrosive and abrasive materials – wet or dry
  • Notched disk for 1’ foot pitched Chevron™ or less
  • Solid disks for 2’ foot pitched Chevrons™ or more
