Chevron Conveyor Belt Cleaner

  • SetWidth260-ChevronAppOne
  • SetWidth260-ChevronApp+TWO Chevron Conveyor Belt Cleaner in Application at a pulp and paper mill.

Chevron Conveyor Belt Cleaner

The Chevron secondary conveyor belt cleaner uses the speed and force of the belt rolling over our patented rubber disks.  The unique rotary fingers are forced against the base of the chevrons to dislodge material from the belt.

  • Sweeping Action - of each disk cleans in front of and behind each and every chevron.
  • Easy Maintenance - no motors, air nozzles, or other problematic equipment to maintain.
  • Works Great - in the pulp and paper, fertilizer, potash, and other bulk material industries where chevron style belts are heavily used.
  • Solid or Notched  - 8” (200mm) diameter abrasion resistant rubber disks are available depending on the height of the chevrons and the conveyor belt speed.




Unique rotary fingers are forced against the base of the chevrons to dislodge material from the belt.

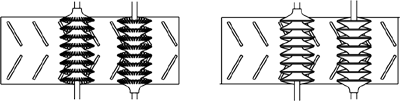

Notched Chevron Blade
Notched disks for one foot pitched chevrons or lessSolid Chevron Blade
Solid disks for two foot pitched chevrons or more
