MECHANICAL SPLICES? NO PROBLEM.

Design Features

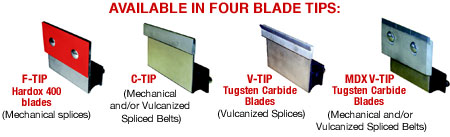

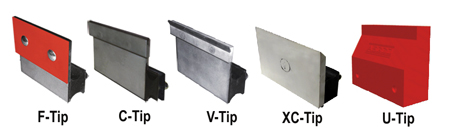

  • Longwearing Abrasion Resistant Blades – available with replaceable V-Tips for vulcanized conveyor belts or C-Tips or F-Tips for conveyor belts with mechanical fasteners. Also available with Urethane and AR™ 400 blades.
  • Impact Absorbing Tension Cushions – each individual blade to the belt for a controlled and effective belt cleaning across the entire width of the belt.
  • Compact Design – allows for an installation that requires less then 9” of clearance to be installed and maintained.
  • Mechanical Splices? No Problem – The Razor-Back® can be installed on belts with mechanical splices, due to the laid-back wiping blade angle and impact- absorbing tensioning cushions, allowing the mechanical splices to pass without damaging the belt cleaner or the splice.
  • Blade Cartridge – allows for easy change out of scraper blades from either side of the conveyor

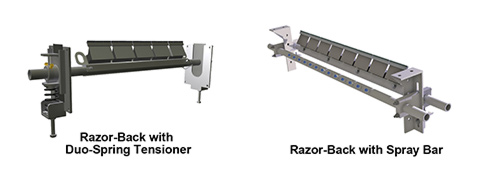

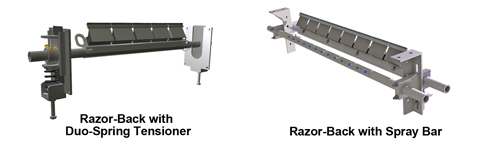

  • Available Tensioning Systems – Bolt-Up™, Duo-Spring™, or Spring-Shoc™
  • Available Optional Spray-Bar – Spray nozzle sizes can be customized for any desired spray pattern and water pressure.

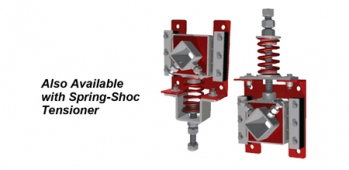

Spring-Shoc™ Tensioner

Utilizes a unique patent pending mounting plate that allows the cleaning blade to be spring tensioned in either a pull-up or push-up position. This specially designed configurability features two different mounting options that leave extra clearance above or below the bracket where necessary.

  • Single spring tensioner for easy and consistent tensioner adjustments while maintaining constant cleaning pressure between the belt and blade tips.
  • Equal tensioning force in either tensioning configuration.
  • Integrated dust shield keeps dust and fugitive material within the conveyor chute.
  • Rugged construction for years of reliable cleaning.
  • Optional Bolt-Up™ and Duo-Spring™ Tensioner available

PRODUCT SPECIFICATIONS

  • Maximum Belt Speed – 1000 fpm (5.0 m/sec)
  • Application – Coal Fired Power Plants, Hard Rock Mining, Steel Mills, Iron Ore, Aggregate and Mineral (Phosphate, Potash, Salt) Mining.

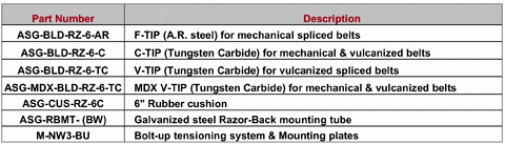

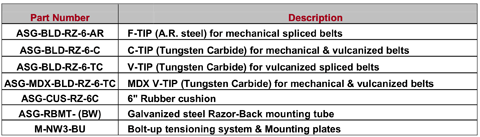

Part Numbers

Razor-Back® with Spring-Shoc™ Tensioner System with F-Tips

F-Tips: Belt Speed: <1000 fpm <5m/sec / -20-400°F  -28 to 204°C

Part Number Belt Width in. Belt Width mm. Weight lbs
M-RBAR-SYS-18-ST 18 450 76
M-RBAR-SYS-24-ST 24 600 85
M-RBAR-SYS-30-ST 30 750 94
M-RBAR-SYS-36-ST 36 900 103
M-RBAR-SYS-42-ST 42 1070 112
M-RBAR-SYS-48-ST 48 1200 121
M-RBAR-SYS-54-ST 54 1350 130
M-RBAR-SYS-60-ST 60 1500 148
M-RBAR-SYS-66-ST 66 1600 148
M-RBAR-SYS-72-ST 72 1800 157
M-RBAR-SYS-84-ST 84 2100 175

Part Numbers

Razor-Back® with Spring-Shoc™ Tensioner System with C-Tips

C-Tips: Belt Speed: <1000 fpm <5m/sec / -20-400°F  -28 to 204°C

Part Number Belt Width in. Belt Width mm. Weight lbs
M-RBC-SYS-18-ST 18 450 75
M-RBC-SYS-24-ST 24 600 85
M-RBC-SYS-30-ST 30 750 94
M-RBC-SYS-36-ST 36 900 103
M-RBC-SYS-42-ST 42 1050 112
M-RBC-SYS-48-ST 48 1200 121
M-RBC-SYS-54-ST 54 1350 130
M-RBC-SYS-60-ST 60 1350 130
M-RBC-SYS-66-ST 66 1600 148
M-RBC-SYS-72-ST 72 1800 157
M-RBC-SYS-84-ST 84 2100 175

Part Numbers

Razor-Back® with Spring-Shoc™ Tensioner System with V-Tips

V-Tips: Belt Speed: <1000 fpm <5m/sec / -20-400°F  -28 to 204°C

Part Number Belt Width in. Belt Width mm. Weight lbs
M-RBTC-SYS-18-ST 18 450 76
M-RBTC-SYS-24-ST 24 600 85
M-RBTC-SYS-30-ST 30 750 94
M-RBTC-SYS-36-ST 36 900 103
M-RBTC-SYS-42-ST 42 1070 112
M-RBTC-SYS-48-ST 48 1200 121
M-RBTC-SYS-54-ST 54 1350 130
M-RBTC-SYS-60-ST 60 1500 139
M-RBTC-SYS-66-ST 66 1800 148
M-RBTC-SYS-72-ST 72 1800 157
M-RBTC-SYS-84-ST 84 2100 175
