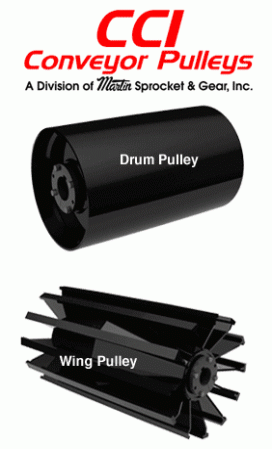

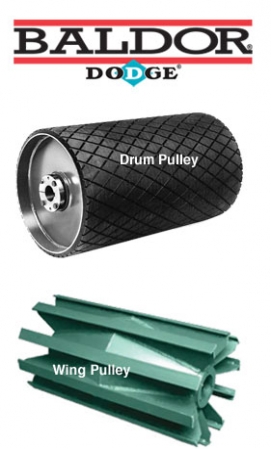

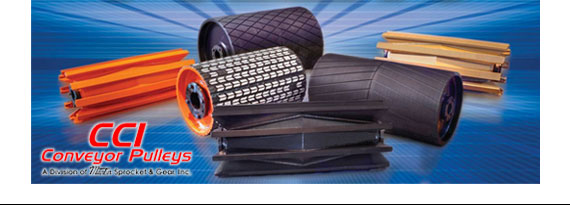

Conveyor Drum and Wing Pulleys

CEMA Drum
CEMA Wing

Arrowhead Ceramic Pulley Lagging
Arrowhead Rubber Pulley Lagging

Mine duty and engineered class pulleys are available in a complete range for your conveyor needs. CEMA pulleys are designed to give you full conveyor capacity with a long service life.

Design features a double sub-arc welded construction on both the front and back of the hub and end discs, as well as at the rim to the end disc.
Each pulley features a minimum 3/8" rim and 1” end disc
Heavier materials on 24" diameter pulleys and larger.

Standard crown face or straight face available
Diameters to 60", face widths exceeding 78"
Available from stock
HE bushings standard
Also available with QD and TAPER-LOCK® bushings on special order

Available in a wide variety of MTO sizes

Meet or exceed CEMA standards

Superior Strength

Pulleys for anyindustry

- Plain
- Diamond Grooved
- Chevron
- Herringbone
- Holz with Replaceable Slide Lagging
- Ceramic Lagging
- WING-LAG

conveyor belt

ASGCO Arrowhead Pulley Lagging

Ceramic, Drive and Non-Drive Rubber Arrowhead Pulley Lagging eliminates slippage
and increases belt traction.

Arrowhead Ceramic Pulley Lagging
Arrowhead ceramic pulley lagging provides the solution when conventional rubber lagging fails to correct belt slippage and wears prematurely. Our unique Arrowhead ceramic is designed for the highest drive factors unlike the conventional square tiles. Learn More >>

Arrowhead Drive and Non-Drive Rubber Pulley Lagging
Arrowhead Drive and Non-Drive Pulley Lagging is the solution, in an application where rubber is the answer, to help eliminate slippage, increase pulley life and to improve production. Learn More >>
