Lightweight Conveyor Belting

ASGCO’s lightweight belts are designed to meet the demanding requirements for a wide variety of industries and applications. From bakeries and package handling to airport baggage handling, our lightweight conveyor belt is made to order to meet your specifications in size, fabric, compounds, colors and top cover profiles. With quality built into every belt, they’re made to last. ASGCO distributes conveyor belting and accessories from leading industry manufacturers to end-user customers in our local and Mid-Atlantic territories.

Belt Styles

ASGCO offers a broad range of belting styles consisting of many different cover materials, patterns, and tension members to optimize your conveyor system. Please see our full product brochure and belt charts for more information.

Fabrication

ASGCO combines our innovation, engineering and experience to provide custom fabrication solutions to improve conveyor efficiencies.

Accessories and Equipment

ASGCO's Excalibur food grade belt cleaner and our Tru-Trainer food grade belt training idler, are both designed and proven for lightweight conveyor belting in the food and material handling industries.

Perforation Capabilities

Hole sizes range from 1/16” to 1¼”. Send us a drawing. Competitive prices and fast turnaround from our automated system, which produces highly accurate hole size and placement.

perforation capabilities

wide belt sanders Wide Belt Sanders

Our A30W2F belt with our hot covered splice and our perforation is a sure success for any sanding application.
curved conveyor belts Curved Belts

Curved belts for all radiuses for industrial and food grade applications.
conveyor belt applicaitons other uses for conveyor belts

 Accessories and Equipment

EXCALIBUR

Conveyor Belt Cleaner

Excalibur belt cleaner

 Features:
  • Snap on Blade Easily Installed
  • No Tools to Install / Replace Blade
  • Electro-polished Stainless Steel
  • Precise Pressure Tensioning System
  • Complete Dissasembly in Seconds
  • For Light Duty Termoplastic Belts
  • FDA/USDA Accepted Materials
  • Meets all Sanitary Requirements


TRU-TRAINER

Training Idlers

Tru-Trainer conveyor idler

 Features:
  • Easy Installation
  • No contact with edge of belt
  • No Maintenance
  • Vibration free rolling action
  • Simple design, few moving parts
  • Finger tip movement under load
  • Manufactured according to CEMA standards
  • Operates in all conditions, wet and dry
  • Operates on reversible belt
  • Mounts on clean side of conveyor belt

 Fabrication

Hinged Lace

A great alternative to an endless splice, plastic spiral or riveted lacing.

This fastener is ideal for applications:

  • When you would like a vulcanized splice, but don't have the space, time or difficult and costly to install.
  • Where the thickness of the belt and the coefficient off friction have to be the same between the belt and the splice.

Hinged lace for vulcanized belt splicing

Strength: 110 lbs per inch of width
Low Profile, vulcanized nonmetallic lacing
FDA / USDA approved
Easy and simple to install and maintain



Applications:

  • Emergency Spare Belts
  • Metal detectors
  • Wide Belt Sanders
  • Inspection Tables
  • Accumulation conveyors


Types of Endless Splices


single finger belt splice

Single Finger
Used on 1 ply or sometimes 2 ply belts.

double finger belt splice

Double Finger
Used on belts with 2 plies where additional strength or small pulleys are present.

lap belt splice

Lap Splice
20 degree step splice.

bias finger belt splice

Bias Finger Splices
A great splice where strength and flexibility are needed for demanding applications.

*All splices can be prepared ends.

Lacing Methods


Lacing Methods

Felt Belts
Wool felt belts, woven edges. Also, natural white felt belts. Great release properties for wet sticky products and croissant molders. Available in 2 or 4 mm thickness.

Longitudinal Splicing
Longitudinal splicing available up to 200" depending on belting material. Not available for 1-ply belt.

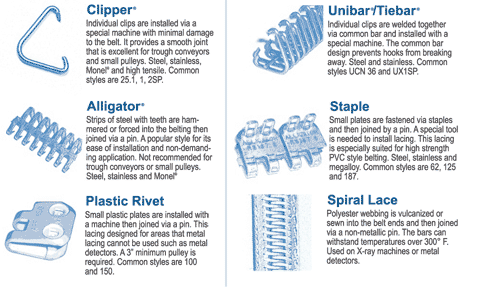

Lacing Types

Lacing types

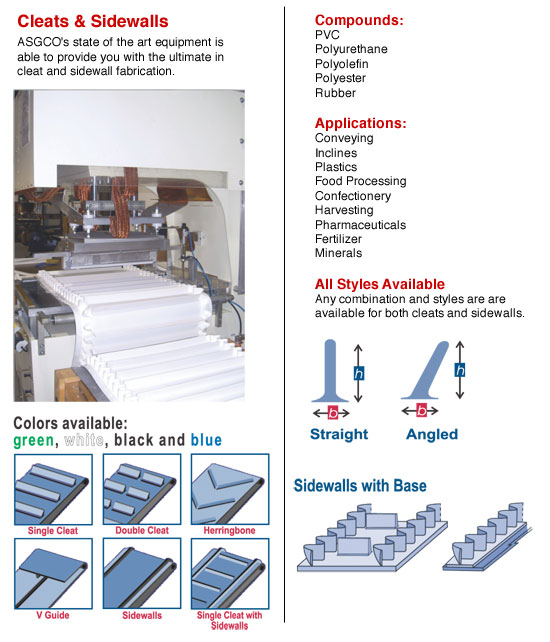

Cleats & Sidewalls

Cleats & Sidewalls

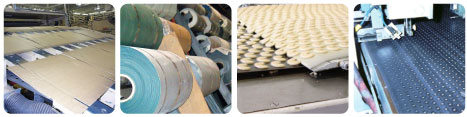

Conveyor Belting Division Images
