ASGCO Dura-Sleeve Return Idler
Dura-Sleeve return idlers are a patented abrasion resistant urethane sleeve that is easily clamped on any existing or new rubber or urethane disc return idler shaft.
- Patented Design- of our idler sleeve clamping system utilizes you to replace worn out rubber or other urethane disc return idlers.
- Abrasion Resistant Urethane- compounds provide wear ability that exceeds 5 times the wear life of standard rubber disc return idlers.
- Meets all CEMA Standards - and available in any belt width and inside and outside roller diameter.
Replace your existing rubber and urethane disc return idlers with our individual sleeves, without replacing the entire idler.
- ASGCO - Thane construction for extra long wear.
- 5 year warranty
- Perfect concentricity promotes better belt tracking
- Long wearing life in abrasive environments
- No material build-up
Patented Replaceable Sleeves
are also available for both CEMA
D and E Idlers.
3 Year Guarantee
ASGCO offers the longest warranty on any Dura-Sleeve idler.
|
 |
CEMA D Dura-Sleeve Idlers
Bearings
- 30 mm (1,1811 inch bore) precision ball bearing with seals on both sides
Seals
- Quad horizontal labyrinth outer seal and dual lip nitrile rubber inner seal
- Delrin outer labyrinth member
- Bearings feature contact seals on both sides
Shaft
- Solid 30 mm (1,1811-inch) ASTM A-108 C1018 CD materiall
- 2 OD
Dura-Sleeves
- 6" OD x 7" long
CEMA E Dura-Sleeve Idlers
Bearings
- 40 mm (1,5748 inch bore) precision ball bearing with seals on both sides
Seals
- Quad horizontal labyrinth outer seal and dual lip nitrile rubber inner seal
- Delrin outer labyrinth member
- Bearings feature contact seals on both sides
Shaft
- Solid 40 mm (1,5748-inch) ASTM A-108 C1018 CD material
- 2 3/4" OD
Dura-Sleeves
- 6" OD x 7" long

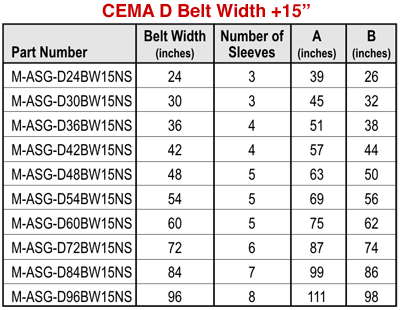

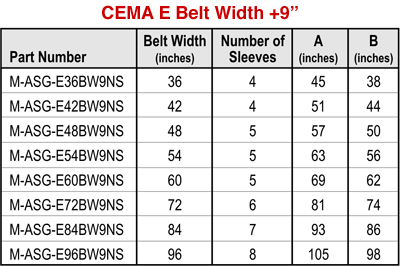

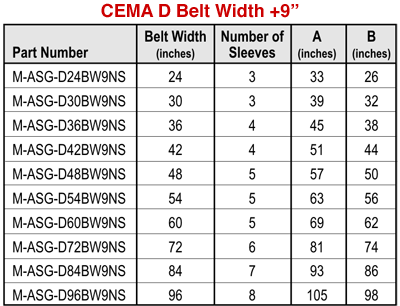

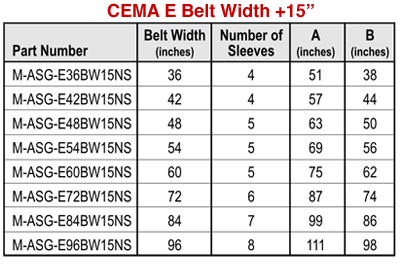

Dura-Sleeve Part Numbers
|
