ASGCO Chute Inspection Doors

Chute Inspection and Access Doors are a necessary part of any transfer point to allow for safe inspection and access to maintain the belt cleaner systems.

Saftey - inspection screen guard standard on every door for the ability to safely inspect equipment while it's running.
Redesigned Frame - has a 45 degree flange to shed fines from accumulating on the interior of the door.
Low Profile Steel Construction - with a dual EPDM dust seal that can withstand temperatures from 40 degrees F to 200 degrees F.
Available in 3 Standard sizes - 12" x 12", 12" x 18" and 18" x 24".
Belted - hinged inspection screen.

	ASGCO Chute Inspection Doors Brochure
	ASGCO Chute Inspection Door Installation Instructions
	Request A Quote for ASGCO Chute Inspection Doors
	Ask A Question about ASGCO Chute Inspection Doors

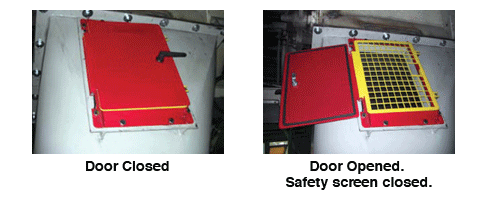

ASGCO Chute
Inspection Door
Access Door For Belt Cleaner
Inspections and Blade Change Outs

45 degree flange on interior of door prevents fines from accumulating.
