Razor-Back, Secondary Belt Cleaner System

The Razor-Back secondary belt cleaner features tough self-adjusting replaceable tungsten carbide blades (non-carbide also available) for extremely effective belt cleaning. Once you try the Razor-Back, it will be the only secondary belt cleaner you’ll ever buy again.

Longwearing Abrasion Resistant - tungsten carbide blades provides and maintains a great cleaning edge against the belt.
Impact Absorbing Tension Cushions - tension each individual blade to the belt for a controlled and effective belt cleaning across the entire width of the belt.
Compact Design -allows for an installation that requires less then 9” of clearance to be installed and maintained.

Mechanical Splices? No Problem. The Razor-Back can be installed on belts with mechanical splices, due to the laid-back wiping blade angle and impact-absorbing tensioning cushions, allowing the mechanical splices to pass without damaging the belt cleaner or the splice.

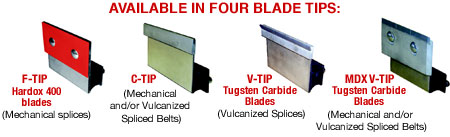

Razor-Back Blade Chart

	Download the Razor-Back Belt Cleaner Brochure
	Download Razor-Back Belt Cleaner Installation Instructions
	Download Razor-Back with Duo-Spring Tensioner Installation Instructions

Razor-Back Belt Cleaner, Superior Secondary Cleaner

Razor-Back with V-tips installed on this coal handling conveyor at a major coal-fired power plant.

Razor-Back is also available
with Duo-Spring Secondary Tensioner
