Dual Tru-Trainer, conveyor belt tracking system

The Tru-Trainer series of conveyor belt tracking idlers are a patented design that offers the most reliable and re-active tracking idlers available today.

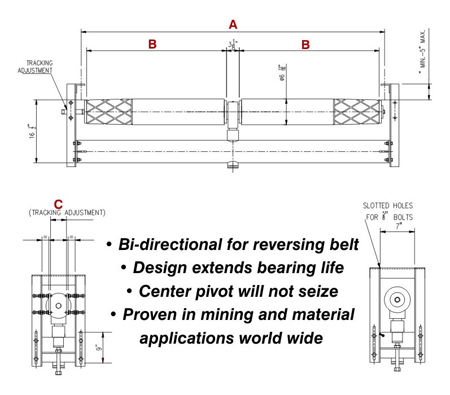

The Dual Return Tru-Trainer was developed to accommodate the excessive forces encountered with wide belts and heavy loads. An external central pivot mechanism was designed, obviating the need for a single, large drum, and enabling a concentric and balanced rotation to be achieved. Obviously, this results in extended bearing life and a very fast and effective tracking system.

Two separate tapered rolls are mounted into the pivot mechanism, which can be individually replaced as wear occurs.

• Specifically designed for high speed, aggressive belts having a high capital cost

• Trainer rolls - can be individually replaced

• Easy installation

• Low maintenance

• Vibration free rolling action

• Minimum force to activate training mechanism

• No contact with edge of belt

• Operates in all conditions - wet and dry

Tru-Trainer Brochure
