SAFE-GUARD® RETURN IDLER CAGE

The Safe-Guard® Return Idler Cage was designed to restricts contact with the return idler while the conveyor is running. The durable steel cage helps prevent injuries from falling idlers onto unsuspecting workers or equipment.

MSHA

Complies with MSHA Title 30 mechanical equipment guards.

  • MSHA accepted# IC-174/3
  • 56.14110 (Flying or Falling Material)
  • 56.14112 (Guard Construction)
  • 56.14107 (Moving Machine Parts)
  • 75.1722 (Mechanical Equipment Guards)
  • 77.400 (Mechanical Equipment Guards)

OSHA

  • 1910.219 (Mechanical Power Transmission Apparatus )
  • 56.14107 (Moving Machine Parts)

PROTECT WORKERS FROM INJURY

  • No Welding Required
  • UV Resistant – made from steel, will not corrode, or wear from abrasion.

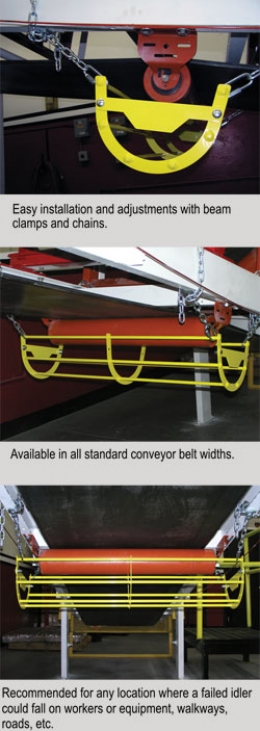

  • Easy to Install and Remove – for fast installation and belt maintenance using beam clamp, links and adjustable chain.



Gallery

PRODUCT SPECIFICATIONS

Mounting Hardware – made from powder coated A-36 steel.

Belt Width – 18″ to 96″

Design – fits most belt conveyors, 4″ – 7″ diameter rolls.

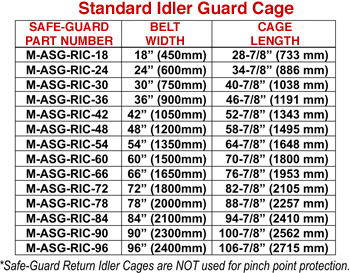

Part Numbers

Part Number Belt Width in. Belt Width mm. Weight Lbs
M-ASG-RIC-18 18 450 13
M-ASG-RIC-24 24 600 15
M-ASG-RIC-30 30 750 17
M-ASG-RIC-36 36 900 19
M-ASG-RIC-42 42 1070 21
M-ASG-RIC-48 48 1200 23
M-ASG-RIC-54 54 1350 25
M-ASG-RIC-60 60 1500 27
M-ASG-RIC-72 72 1800 31
M-ASG-RIC-84 84 2100 35
M-ASG-RIC-96 96 2400 39
