ARMORITE® CONVEYOR WEAR KNIFE EDGE & SHREDDER TIPS

Design Features
  • White Iron: Modified AS2027 15/3 Cr Mo
  • Vacuumed brazed and liquid nitrogen cooled to achieve a high strength joint
  • Mild steel backing offers strength, machinability, and impact resistance
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
  • Ease if fitment, very versatile
  • Lower operating costs
  • Longer Service when compared to conventional materials
  • Increased production
  • Improved product efficiency
  • Increased equipment availability

PROVIDE MAXIMUM IMPACT AND ABRASION PROTECTION

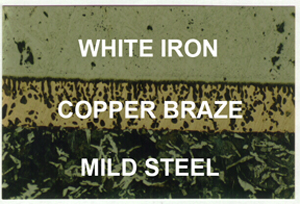

ASGCO Armorite® is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite® provides maximum protection in high wear areas, with the mild steel backing bonded to the white iron enabling it to withstand impact. Armorite® is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

PRODUCT FEATURES
  • White Iron: Modified AS2027 15/3 Cr Mo
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed
  • Ease if fitment, very versatile

PRODUCT SPECIFICATIONS

Applications – designed for the sugar and re-cycling industries

Custom sizes available at customer request

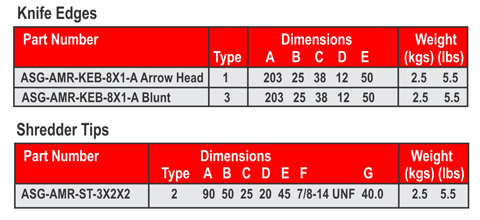

Part Numbers

Armorite® Knife Edge & Shredder Tips

Custom Sizes available at Customers Request

Thickness White Iron 3/4″ – Thickness Base Plate 1/4″

Part Number Description Weight lbs
ASG-AMR-ST-3X2X2 Shredder Tip 5
ASG-AMR-KEB-8X1-A Knife Edges - Arrowhead 3
ASG-AMR-KEB-8X1-B Knife Edges - Blunt 4
