Bronco™ Brush Conveyor Belt Cleaner (Self-Driven)

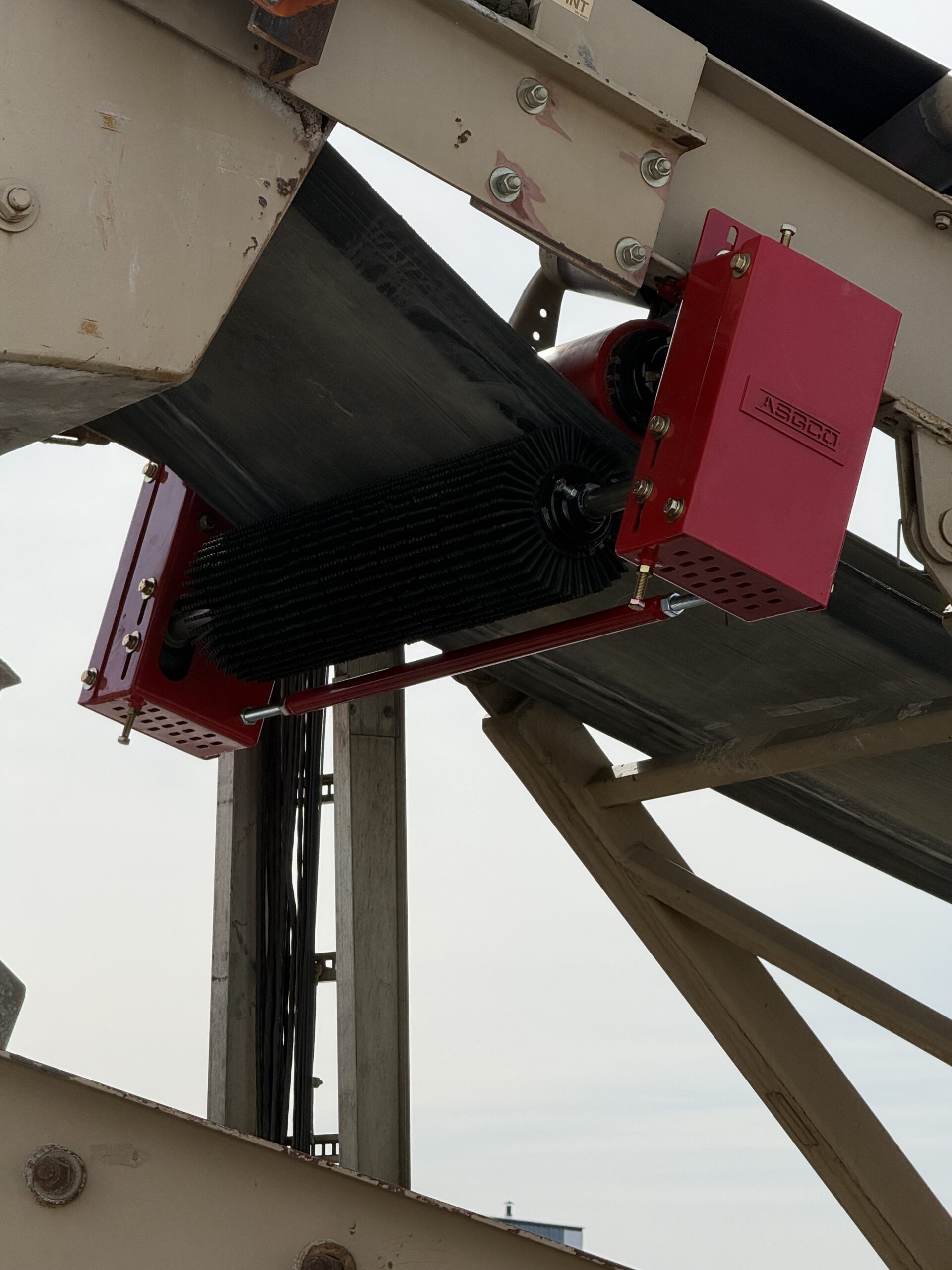

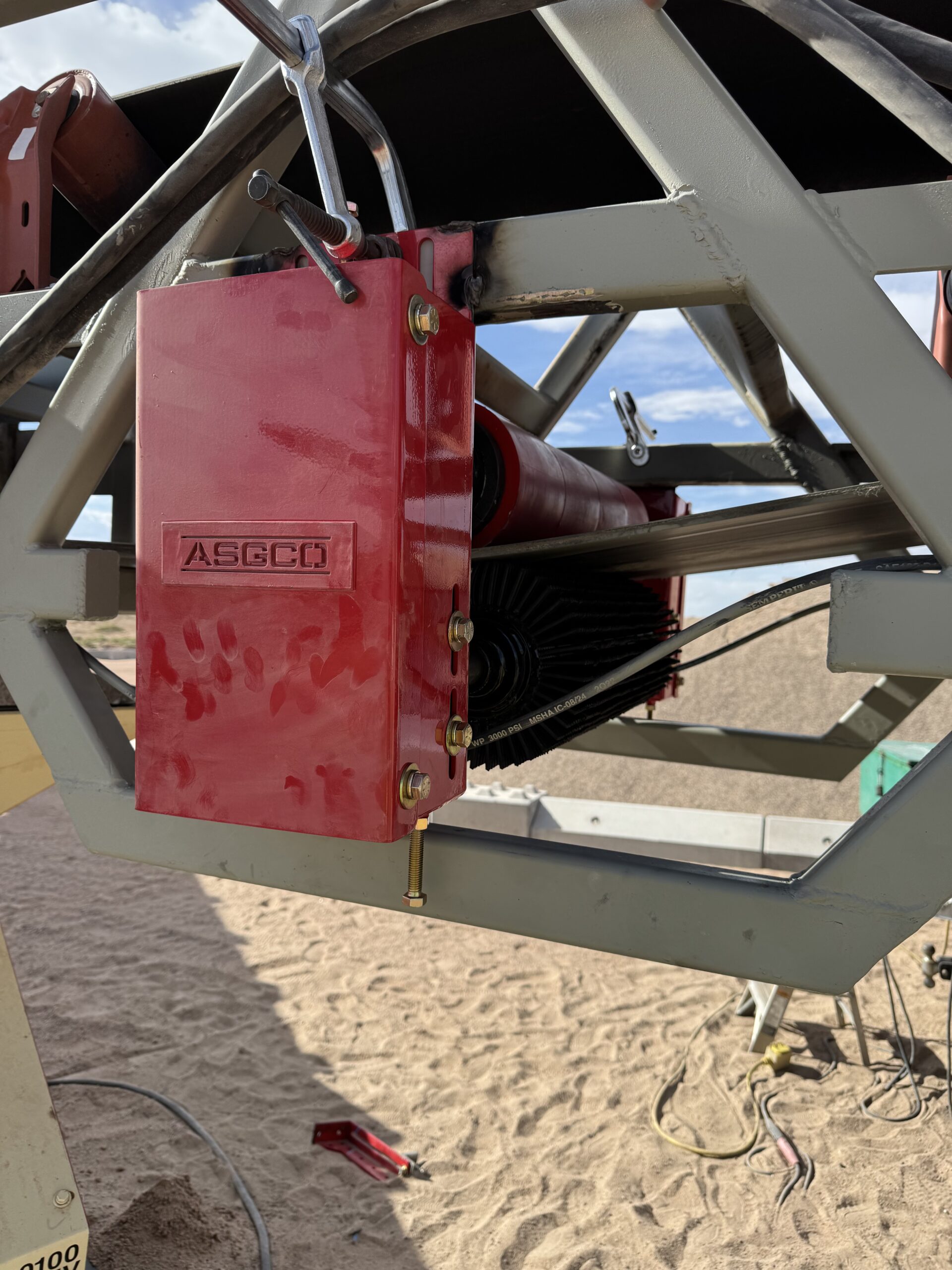

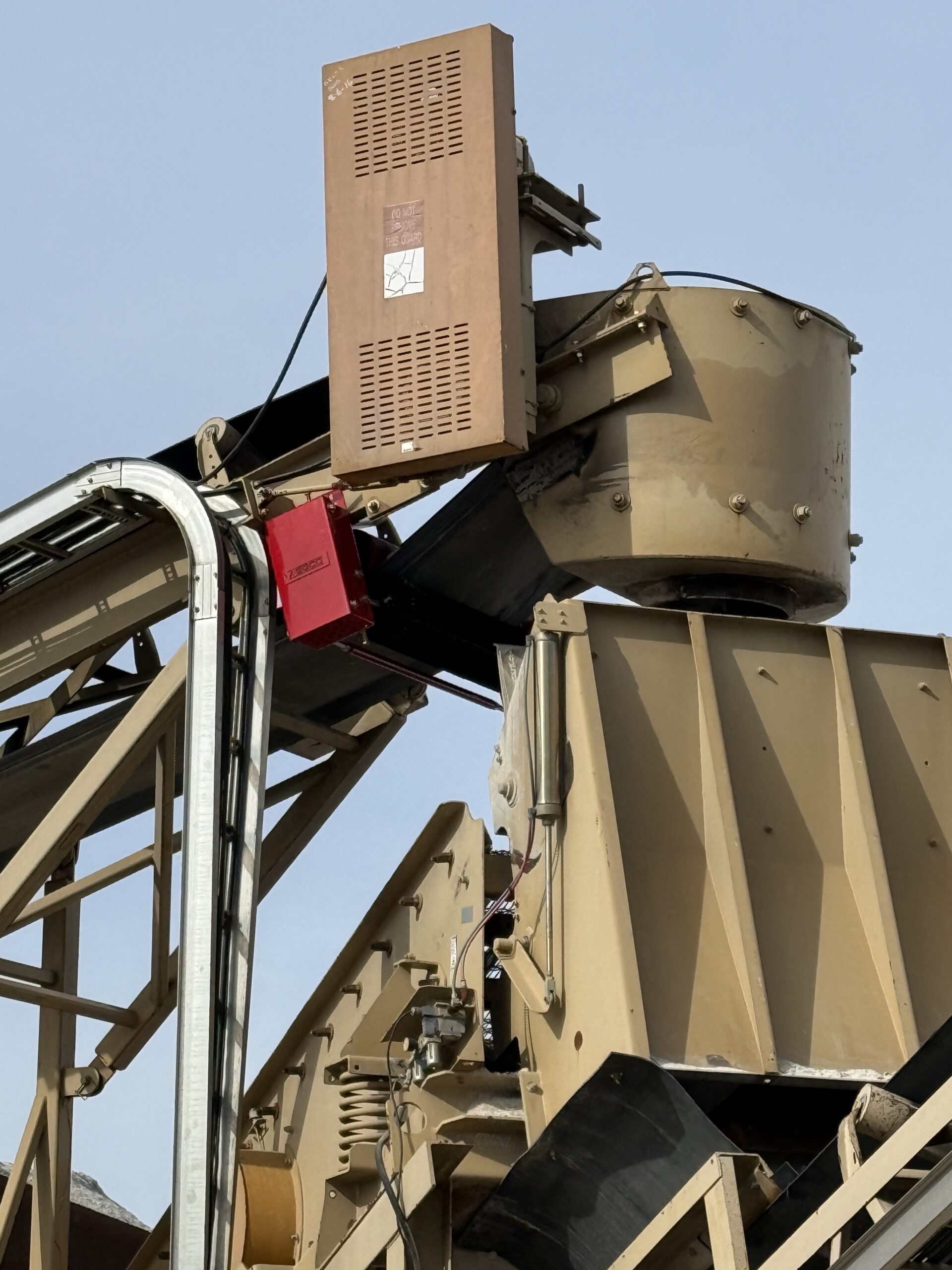

The Bronco™ Brush Self-Driven secondary conveyor belt cleaner utilizes its unique abrasion resistant rubber fingers that spin in the opposite direction of the conveyor belt efficiently cleaning materials that cling to the belts surface. This secondary belt cleaner was engineered and designed for difficult industrial applications such as: wet or dry sand, aggregate fines, wood particles, limestone fines, soda ash, fertilizers, sugar, salt and other fi ne materials.

Bronco™ Brush Conveyor Belt Cleaner (Self-Driven)

The Bronco™ Brush Self-Driven secondary conveyor belt cleaner utilizes its unique abrasion resistant rubber fingers that spin in the opposite direction of the conveyor belt efficiently cleaning materials that cling to the belts surface. This secondary belt cleaner was engineered and designed for difficult industrial applications such as: wet or dry sand, aggregate fines, wood particles, limestone fines, soda ash, fertilizers, sugar, salt and other fi ne materials.

ELIMINATE MATERIAL ACCUMULATION AND DUST

FEATURES & BENEFITS
  • Excellent Cleaning – Abrasion resistant rubber fingers spin in the opposite direction of the conveyor belt efficiently removing any materials that adhere to the belt surface, reducing carry-back and housekeeping issues.
  • Reduces Maintenance Costs – The motorized brush system reduces carryback, which results in lower cleanup costs and less unplanned downtime.
  • Efficiency – The safe design of the system eliminates the requirement of electricity. The momentum of the belt powers a hold down roll allowing for the brush to spin in the opposite direction of the conveyor belt.

ECONOMICAL SOLUTION THAT PROVIDES HIGH-PERFORMANCE

The Bronco™ Brush Self-Driven secondary conveyor belt cleaner utilizes its unique abrasion resistant rubber fingers that spin in the opposite direction of the conveyor belt efficiently cleaning materials that cling to the belts surface.

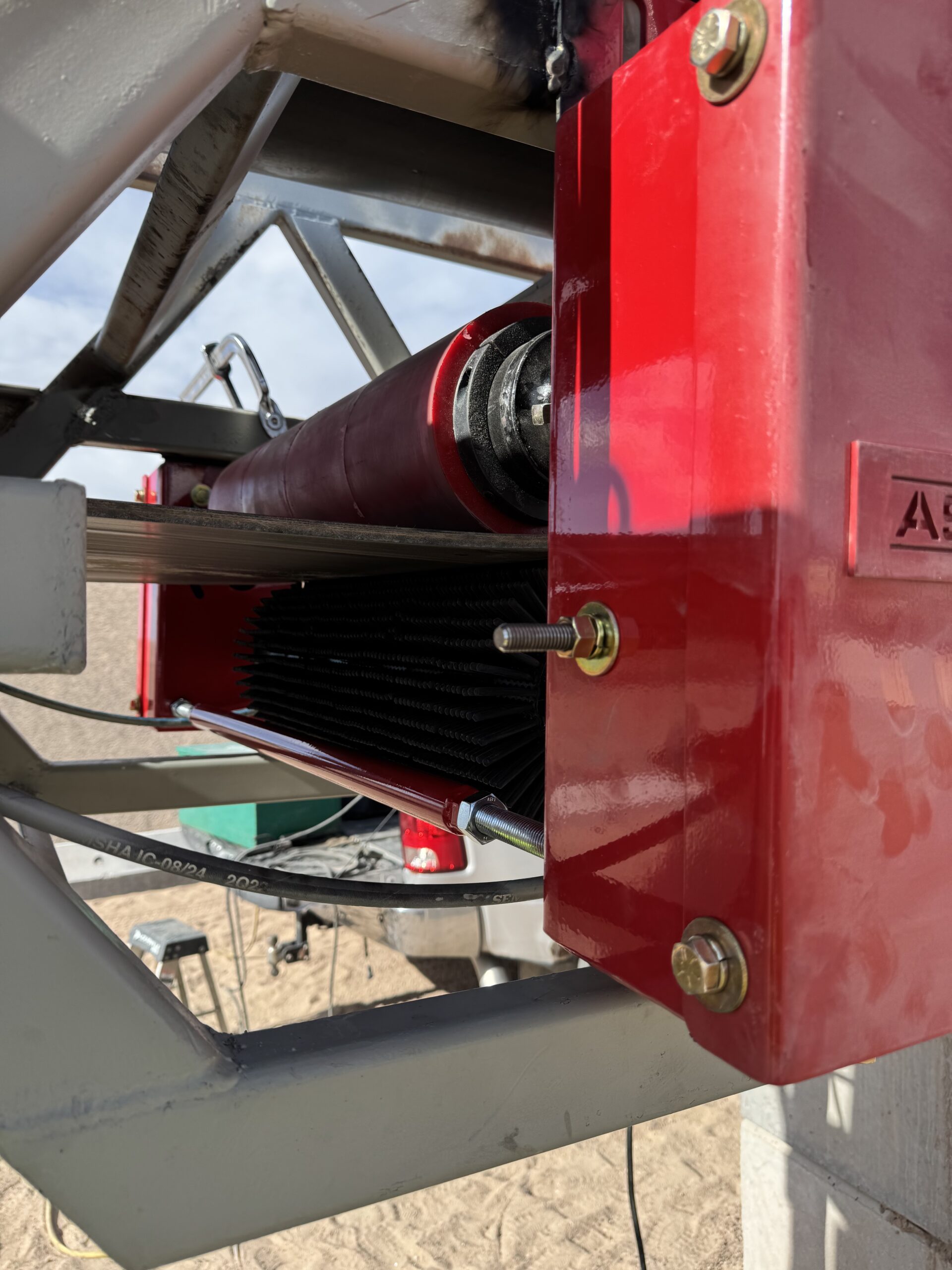

  • Mounting Brackets – allows for adjustability based on belt thickness.

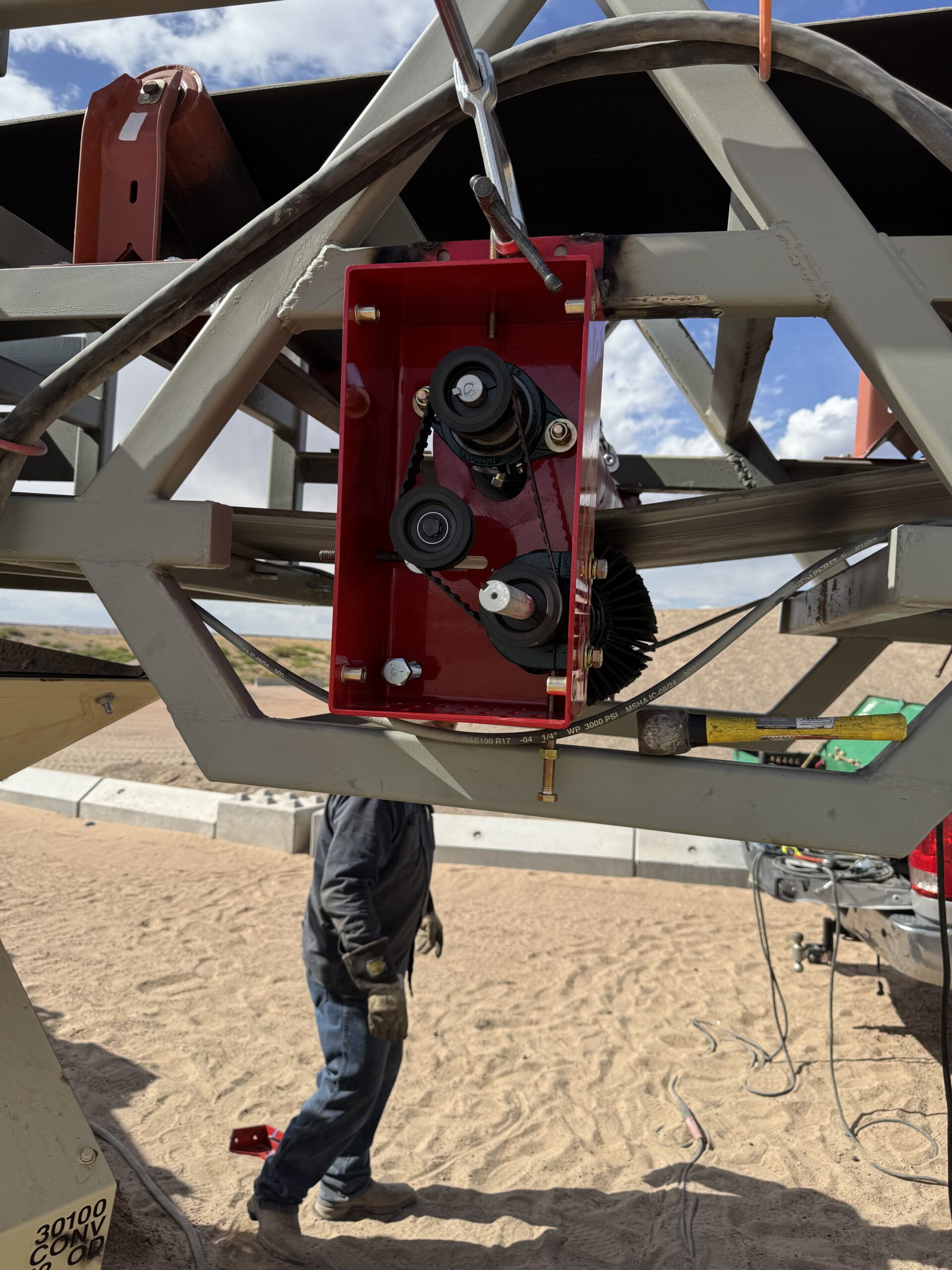

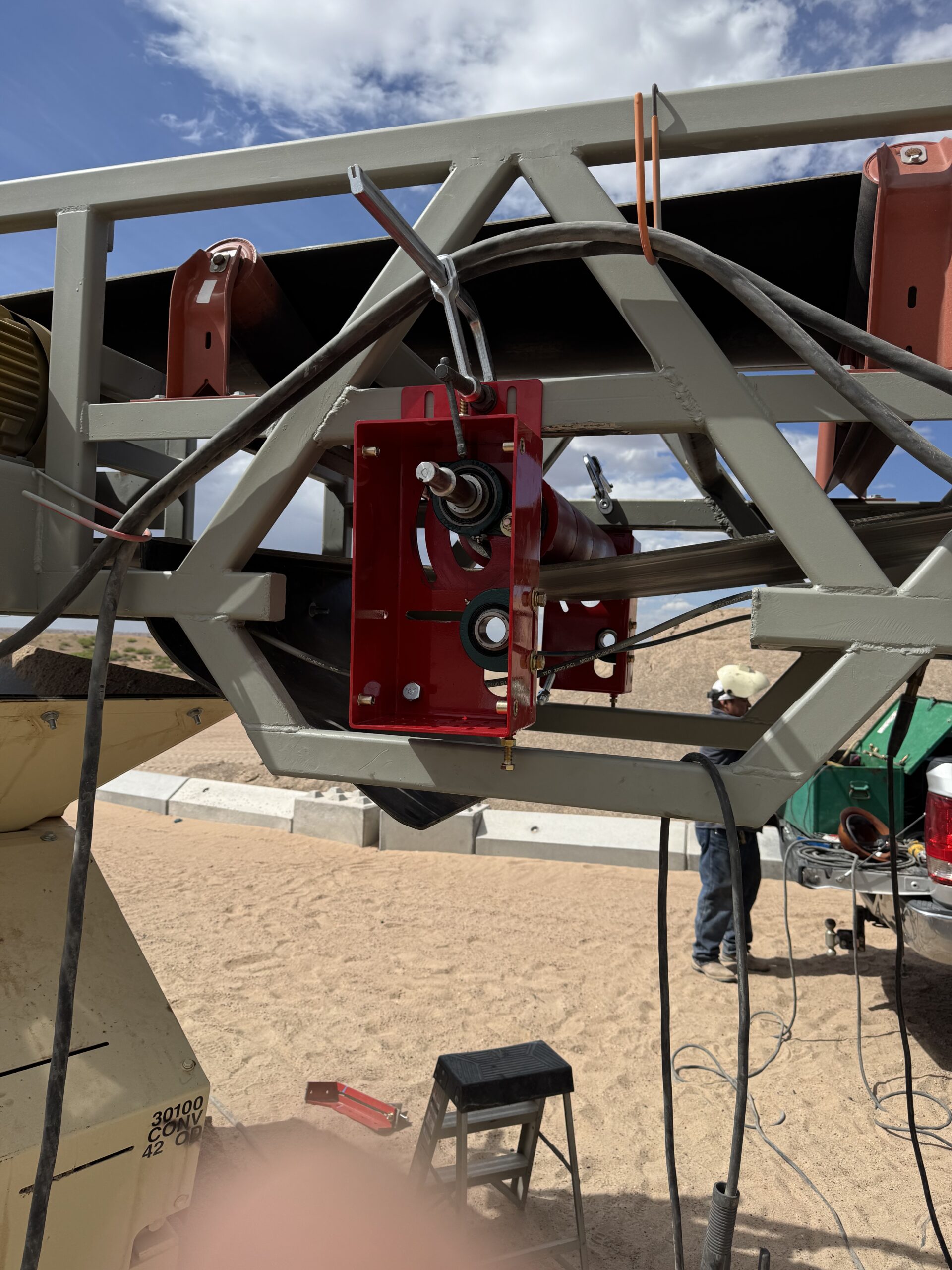

  • Hold Down Roll – utilizes belt momentum to drive the brush cleaner removing the need for electricity.
  • Abrasion Resistant Rubber Fingers – provides excellent cleaning with minimum wear or buildup.

PRODUCT SPECIFICATIONS

  • Maximum Belt Speed – 700 fpm (3.5 m/sec)
  • Temperature Rating: –20°F to 180° F (-30° C to 82° C)
  • CEMA Cleaner Rating: Class 4
  • Overall Brush Diameter: 9” (230mm)
  • Bristle Material: SBR
  • Bristle Length: 2” (50mm)
  • Brush RPM: 180
  • Shaft Diameter: 1 1/2” (38mm)
  • Motor Voltage and HP Options:
    • 208-230/460VAC 3 Phase*: 1HP (Cleaners 18-84”)(450mm-2150mm)
    • 110/220VAC Single Phase*: 1HP (Cleaners 18-84”)(450mm-2150mm)
    • 575V 3 Phase*: 1HP (Cleaners 18–84”)(450mm-2150mm) *other motors available upon request
  • Available for Belt Widths: 18” to 84” (450 to 2100mm)
  • Horizontal Clearance Required: 12” (305mm)

Part Numbers

Brush Cleaner (Self-Driven) System

Part Number Belt Width in. Belt Width mm. Brush Diameter Shaft Weight lbs
M-ASG-RBC-18-SD 18 450 8" 1.5" 140
M-ASG-RBC-24-SD 24 600 8" 1.5" 152
M-ASG-RBC-30-SD 30 750 8" 1.5" 163
M-ASG-RBC-36-SD 36 900 8" 1.5" 175
M-ASG-RBC-42-SD 42 1050 8" 1.5" 185
M-ASG-RBC-48-SD 48 1200 8" 1.5" 197
M-ASG-RBC-54-SD 54 1350 8" 1.5" 205
M-ASG-RBC-60-SD 60 1500 8" 1.5" 216
M-ASG-RBC-72-SD 72 1800 8" 1.5" 230
M-ASG-RBC-84-SD 84 2100 8" 1.5" 242
