Read More >DESIGNED FOR THE TOUGHEST MINING ENVIRONMENTS
Design Features

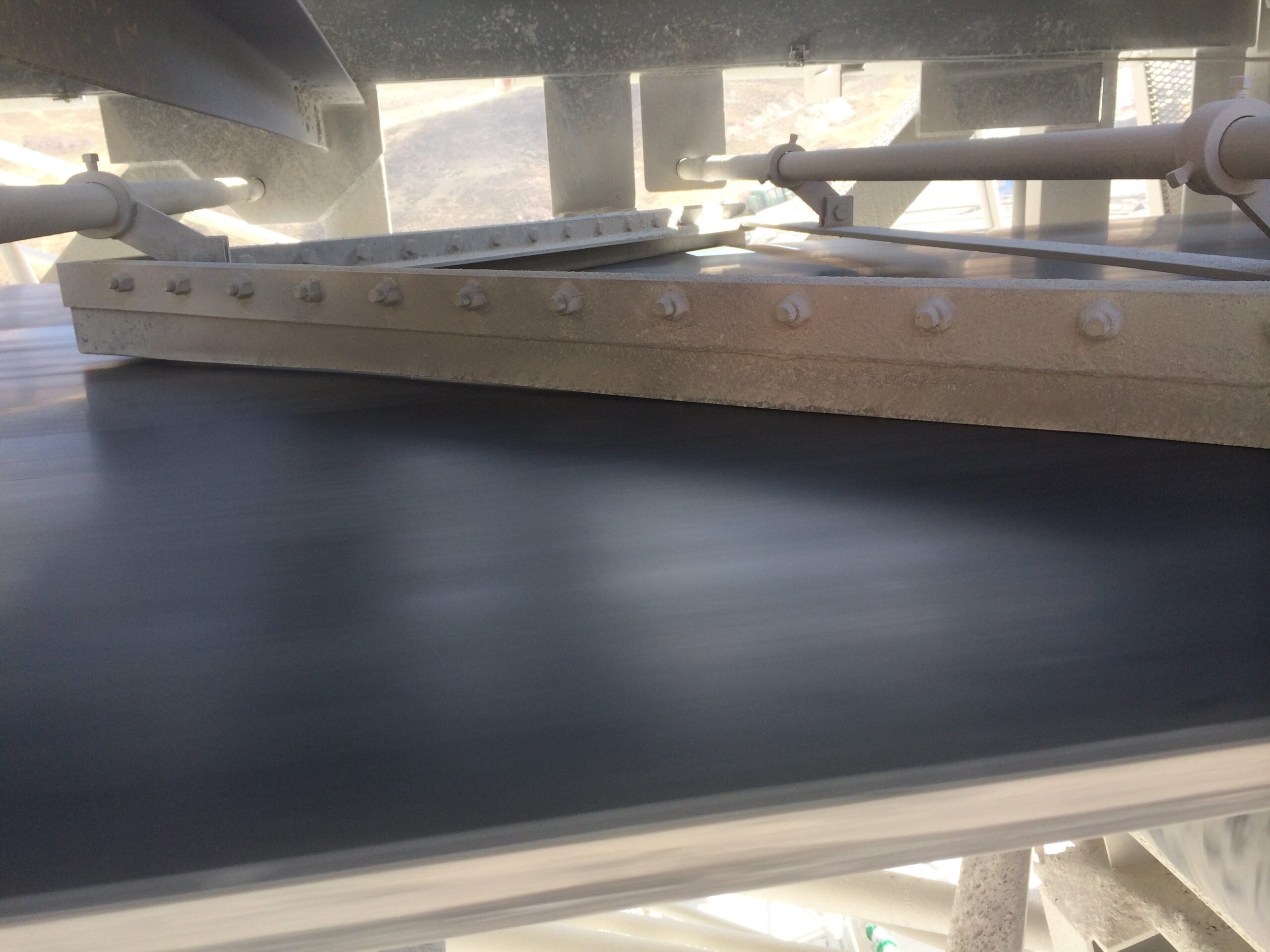

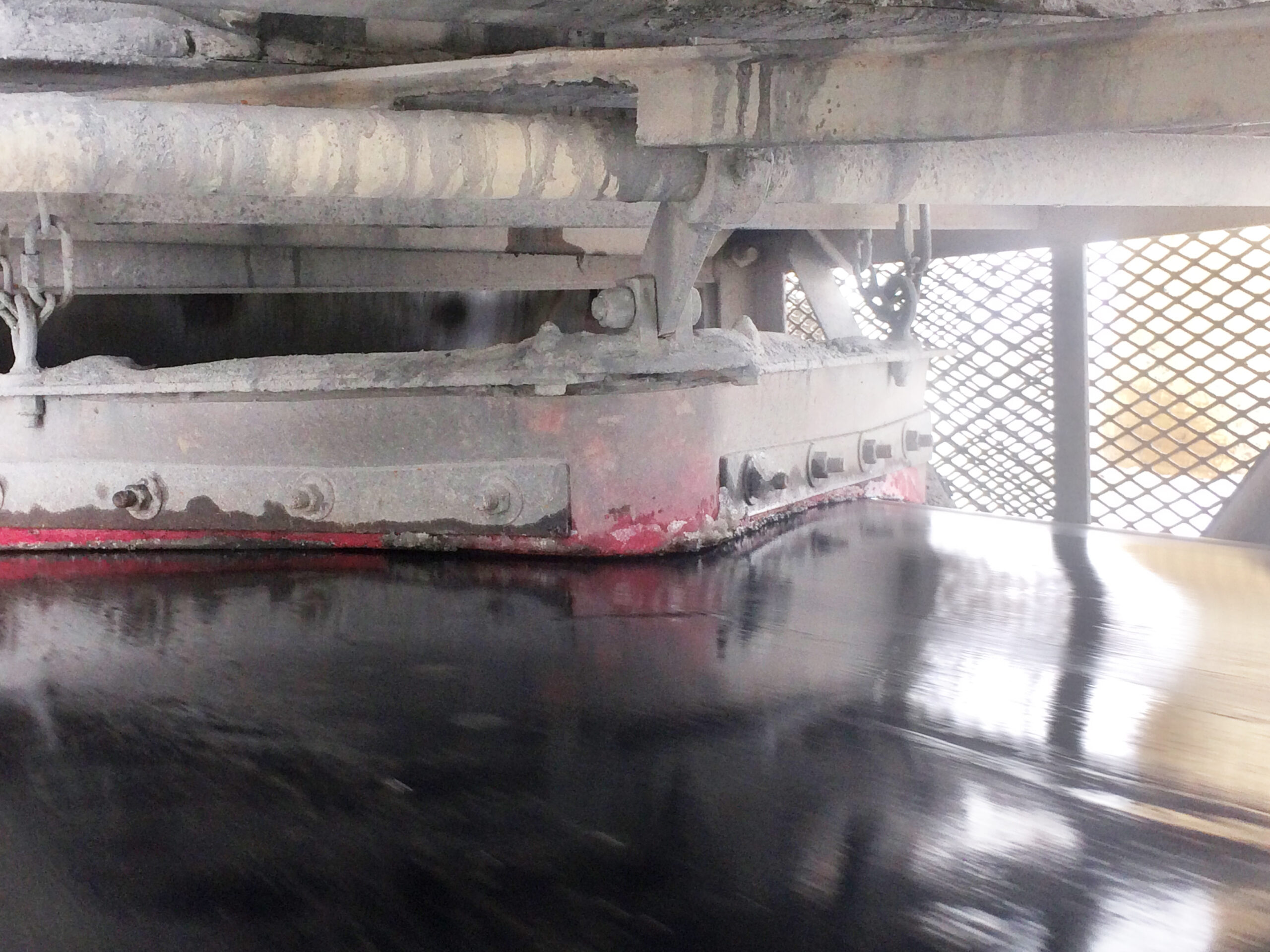

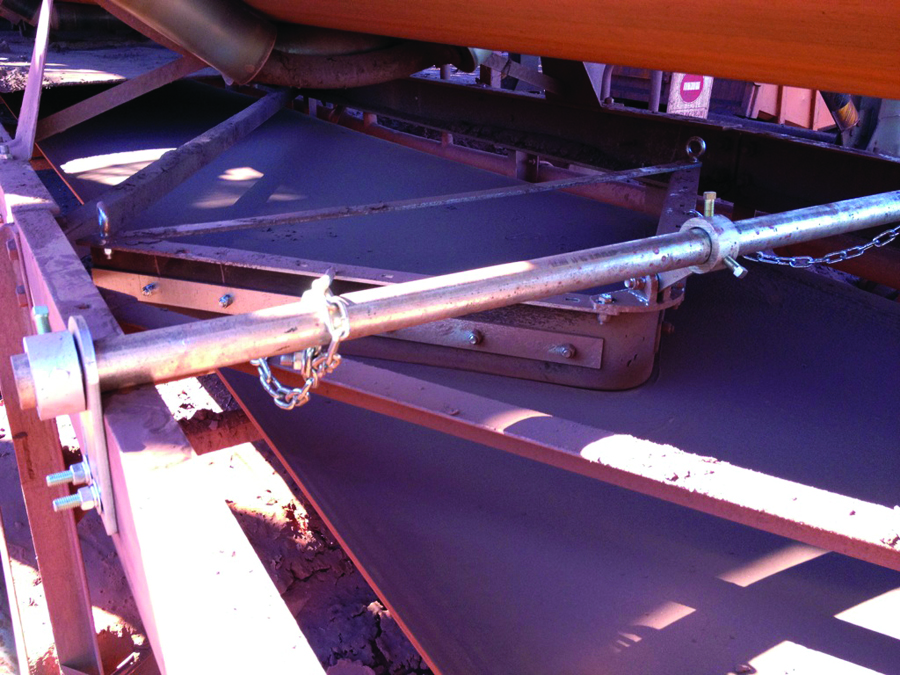

- Hinged V-Plow™ – installs flat and then the wings are spread out to the optimum angle to remove material traveling on the return side of the belt.
- Protects and Reduces – the conveyor belt from puncture damage and its three-point suspension keeps the plow parallel to the belt.
- Easy Maintenance – simple and easy to install and maintain.
- Mine-Duty – plows are also available.
- Safety Chains – standard on hinged plows.
TOUGHEST MINING ENVIRONMENTS
- Rugged Steel Structure
- Grease and Chemical Resistant
- Replacement Blade available in Rubber and Urethane
- Belt Width 18″-96″
- 3 point mounting system
- Temperature rating is 200° degree max
- 30, 40 or 60-degree angle
Product Specifications
Maximum Belt Speed – 1000fpm (5.0 m/sec) Applications – Coal Fired Power Plants, Hard Rock Mining, Underground Mining, Coal Preparation Plants, Steel Mills, Iron Ore, Aggregate, Metals (copper/gold) Mining, Mineral (Phosphate, Potash, Salt) Mining, Bulk Shipping Shipping TerminalsPart Numbers
Premium Hinged V-Plow™ (Rubber)
| Part Number | Belt Width in. | Belt Width mm. | Weight lbs |
|---|---|---|---|
| M-ASG-VP-18-H | 18 | 450 | 46 |
| M-ASG-VP-24-H | 24 | 600 | 54 |
| M-ASG-VP-30-H | 30 | 750 | 62 |
| M-ASG-VP-36-H | 36 | 900 | 69 |
| M-ASG-VP-42-H | 42 | 1200 | 78 |
| M-ASG-VP-48-H | 48 | 1200 | 86 |
| M-ASG-VP-54-H | 54 | 1350 | 95 |
| M-ASG-VP-60-H | 60 | 1500 | 103 |
| M-ASG-VP-66-H | 66 | 1600 | 120 |
| M-ASG-VP-72-H | 72 | 1800 | 136 |
| M-ASG-VP-84-H | 84 | 2100 | 152 |
Part Numbers
Premium Hinged V-Plow™ (Urethane)
| Part Number | Belt Width in. | Belt Width mm. | Weight lbs |
|---|---|---|---|
| M-ASG-VP-18-H-URE | 18 | 450 | 46 |
| M-ASG-VP-24-H-URE | 24 | 600 | 54 |
| M-ASG-VP-30-H-URE | 30 | 750 | 62 |
| M-ASG-VP-36-H-URE | 36 | 900 | 69 |
| M-ASG-VP-42-H-URE | 42 | 1050 | 78 |
| M-ASG-VP-48-H-URE | 48 | 1200 | 86 |
| M-ASG-VP-54-H-URE | 54 | 1350 | 95 |
| M-ASG-VP-60-H-URE | 60 | 1500 | 103 |
| M-ASG-VP-66-H-URE | 66 | 1650 | 120 |
| M-ASG-VP-72-H-URE | 72 | 1800 | 136 |
| M-ASG-VP-84-H-URE | 84 | 2100 | 152 |
