DESIGNED FOR THE TOUGHEST MINING ENVIRONMENTS

Design Features

Keeps material from becoming trapped – between a tail or take-up pulley and the conveyor belt.
Protects your belt – from puncture damage.
Reduces bulk material build-up – on tail and take-up pulleys to improve belt alignment problems and thus reduce belt edge damage.
Simple installation – softens the bulk material carry-back and provides gentle cleaning.
Equal Pressure – and no maintenance needed, adjusts by gravity.

DESIGNED FOR HEAVY MATERIAL APPLICATIONS

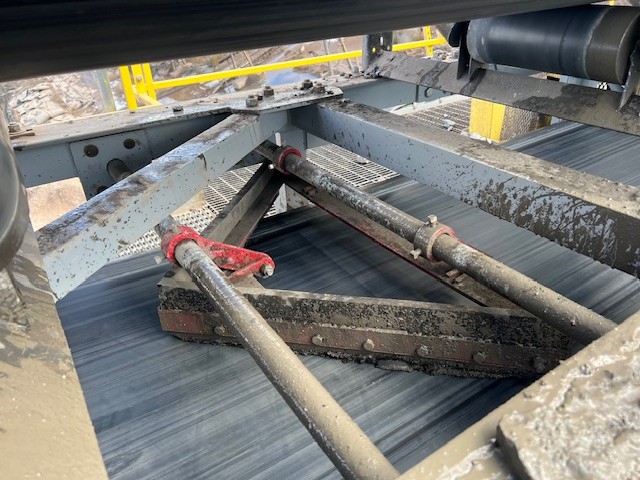

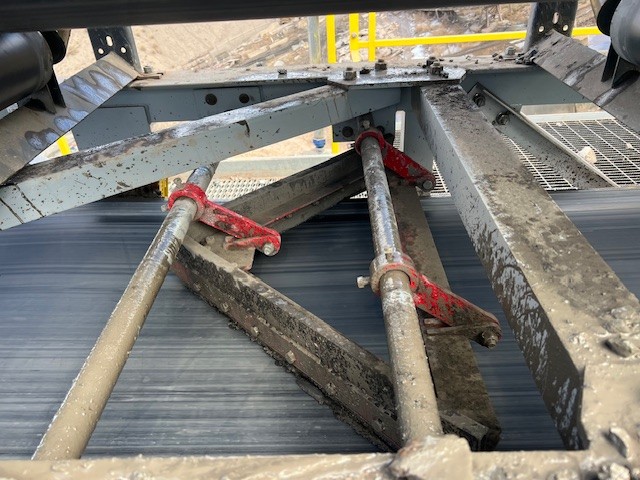

V-Plow XD™s a patented design for tough mine duty applications that can be flipped to maximize results.

Rugged steel structure
Grease and chemical resistant
Replacement Blade available in rubber and urethane
Belt Width 18″-96″

Product Specifications
Maximum Belt Speed – 1000fpm (5.0 m/sec)
Applications – Coal Fired Power Plants, Hard Rock Mining, Underground Mining, Coal Preparation Plants, Steel Mills, Iron Ore, Aggregate, Metals (copper/gold) Mining, Mineral (Phosphate, Potash, Salt) Mining, Bulk Shipping Terminals

Part Numbers

V-Plow™ Mine Duty XD (Rubber)

Part Number	Belt Width in.	Belt Width mm.	Weight lbs
M-ASG-VP-18-1	18	450	36
M-ASG-VP-24-1	24	600	39
M-ASG-VP-30-1	30	750	50
M-ASG-VP-36-1	36	900	60
M-ASG-VP-42-1	42	1050	70
M-ASG-VP-48-1	48	1200	80
M-ASG-VP-54-1	54	1350	90
M-ASG-VP-60-1	60	1500	100
M-ASG-VP-66-1	66	1650	115
M-ASG-VP-72-1	72	1800	140
M-ASG-VP-84-1	84	2100	170

Part Numbers

V-Plow™ Mine Duty XD (Urethane)

Part Number	Belt Width in.	Belt Width mm.	Weight lbs
M-ASG-VP-18-1-URE	18	450	36
M-ASG-VP-24-1-URE	24	600	39
M-ASG-VP-30-1-URE	30	750	50
M-ASG-VP-36-1-URE	36	900	60
M-ASG-VP-42-1-URE	42	1050	70
M-ASG-VP-48-1-URE	48	1200	80
M-ASG-VP-54-1-URE	54	1350	90
M-ASG-VP-60-1-URE	60	1500	100
M-ASG-VP-66-1-URE	66	1650	115
M-ASG-VP-72-1-URE	72	1800	140
M-ASG-VP-84-1-URE	84	2100	170
