Skalper MDX Belt Cleaner
The Skalper MDX pre-cleaner is designed for high speed and high tonnage conveyor systems in above and underground mining. The heavy-duty urethane blade mounts against the head pulley for efficient cleaning, and our unique torque cam action lever adjusts itself to remove high volumes of carry-back while minimizing blade wear and wear from mechanical fasteners. Guaranteed mine tough!
- Extremely Rugged - Heavy-Duty structural steel, 3/8" x 3" diameter square mounting frame with a massive 14" abrasion resistant urethane blade segments individually adjust to the imperfections in the conveyor belt cover.

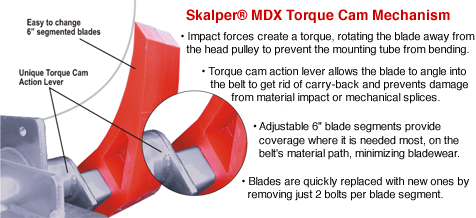

- Impact Torque Cam Action - offset mounting tube allows the blade to angle up and into the belt to remove carry-back and as mechanical splices come by the cleaner the offset cam allows the mounting tube and blades to move downward away from the belt, therefore improving the life of the cleaner blades and not damaging/bending the mounting tubes.

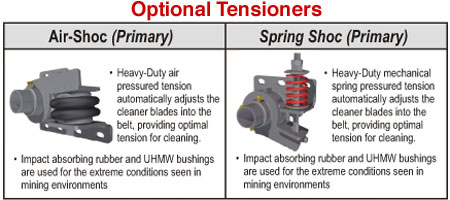

- Spring-Shoc or AIr-Shoc - (both are (Stainless Steel) dual-tensioning systems are available depending on your application to provide consistent self-adjusting pressure for optimal tension against conveyor belt.
- Dual Durometer Skalper MDX Blades - (patent pending) offer the only enhanced application based belt cleaner blades available anywhere.
|
