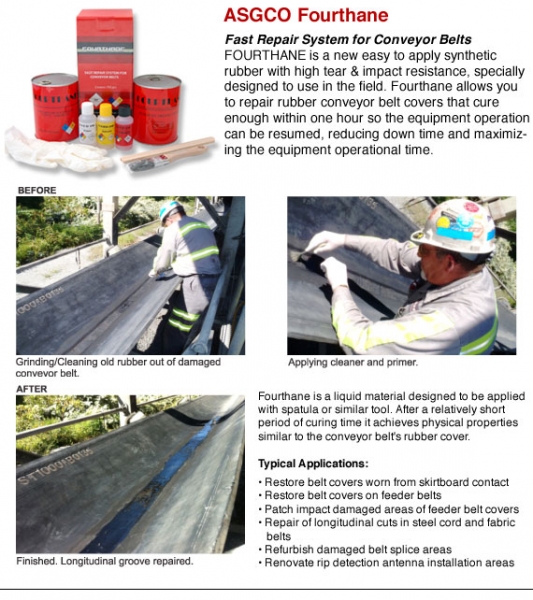

Fast Repair System for Conveyor Belts

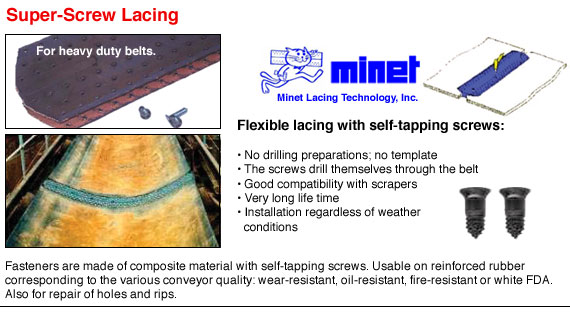

Minet Lacing for Conveyor Belts

Mechanical Fastener Systems

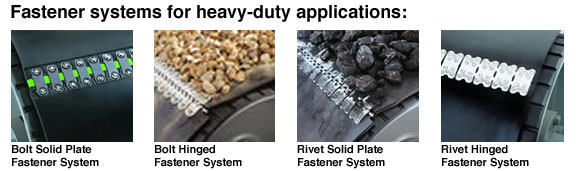

Conveyor accessories in application

How to spedify the right fastener:

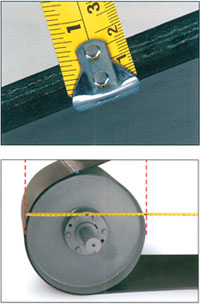

    Fastener pics
  1. Determine belt tension - Most conveyor belting has a mechanical fastener rating, Care should be taken not to operate the belting or fasteners beyond their recommended ratings.
  2. Measure belt thickness - If fasteners are to be counter-sunk, measure the belt thickness after a portion of the belt cover has been removed. Choose a fastener size which corresponds to belt thickness.
  3. Measure the diameter of the smallest pulley in your drive - For tail or take-up of the self-cleaning "wing" type pulley, 25% larger diameter dimensions are generally required. Only consider pulleys over which the belt makes at least a 90 wrap.
  4. Choose the fastener size that is appropriate for your specifications - Consult individual application catalogs to guide your selection.
  5. Hinged or solid plate? - When either style is appropriate, solid plate styles are preferred for longer life and to prevent sifting. Hinged fasteners are preferred on portable conveyors with smaller pulley diameters.
Fastener Metals include: Steel, Stainless Steel, MegAlloy®, RustAlloy®, Everdur, and Promal. Flexco
