Grizzly™ Screw-Splice

The Grizzly™ Screw-Splice conveyor belt splicing and fastening system delivers power, strength, and flexibility in every application. It is the perfect fastener to save you time and money while allowing a quick, accurate, and easy installation. ASGCO^®’s Grizzly™ Screw-Splice outperforms competitor’s products by offering more tensile strength and durability.

FEATURES & BENEFITS

Quick installation
No expensive equipment required
No drilling and no template
Wear and cut resistant
High tensile strength
Strong & Flexible
High-heat belt up to 400°F (204°C)
Compatible with conveyor belt scrapers
Leak-proof
Low temp to -20°F (-28°C)
Available per inch or in complete roll length

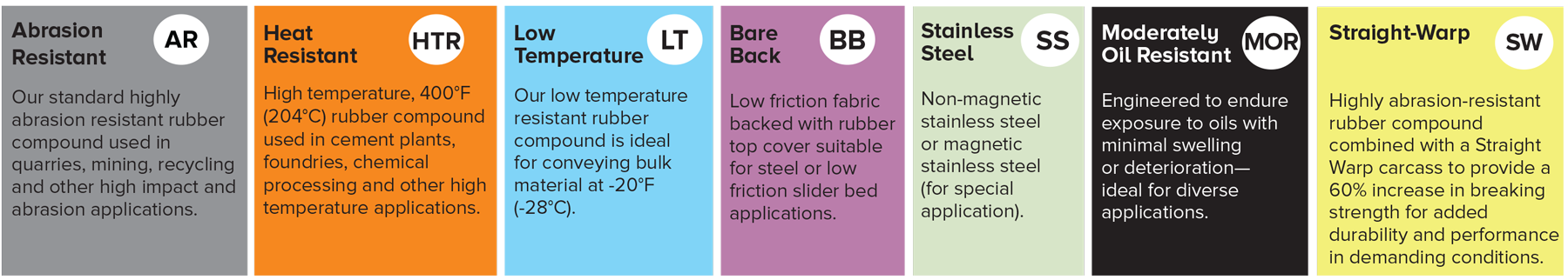

Available Rubber Compound Types

Ready to Install

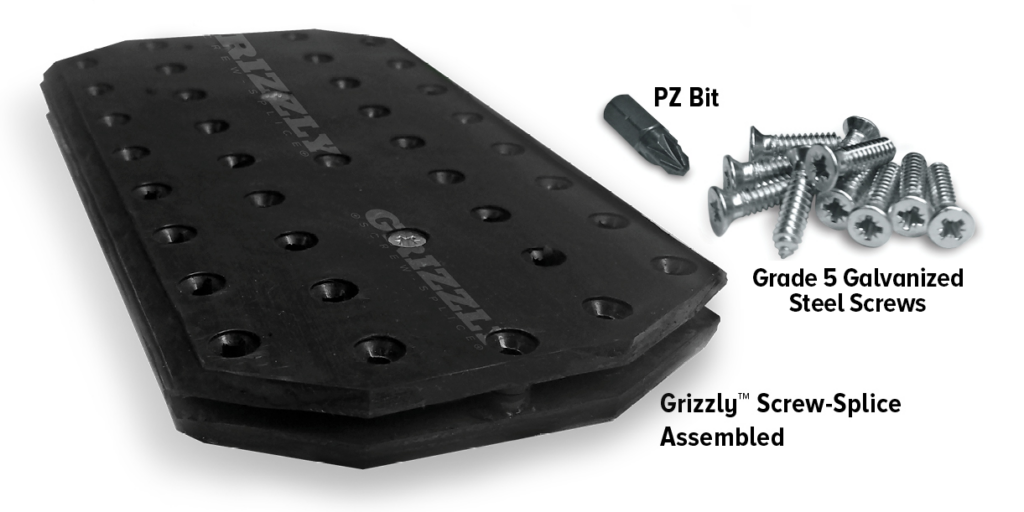

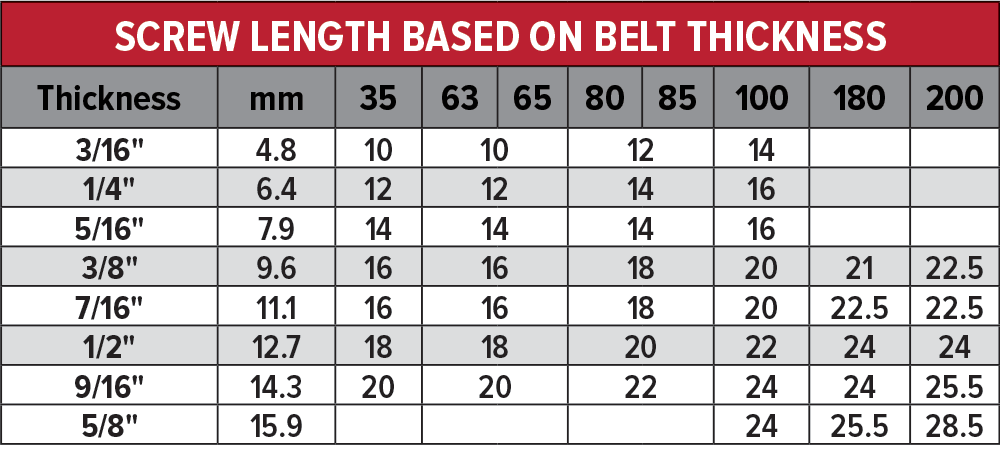

The Grizzly™ Screw-Splice is pre-assembled with the spacers installed, so that the top cover and the bottom cover holes lineup. The Grizzly™ Screw-Splice is delivered with the appropriate number of screws and PZ bits to install the screw splice (matched by inches ordered). It is available in any length between 12 inches up to the length of a roll.

Part Numbers

Grizzly™ Screw-Splice

Available per inch or in complete roll length

- - Abrasion Resistant (AR)
  - Heat Resistant (HTR)
  - Low Temperature (LT)
  - Bare Back (BB)
  - Stainless Steel (SS)

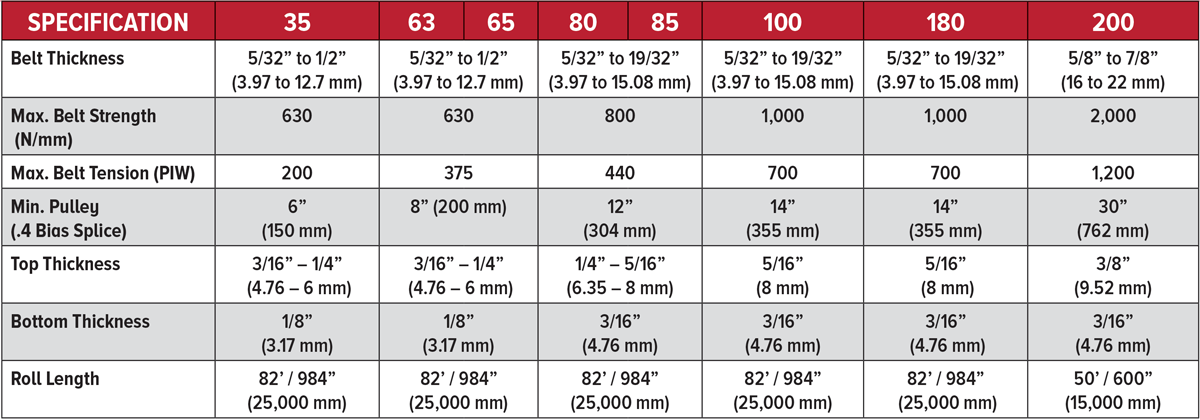

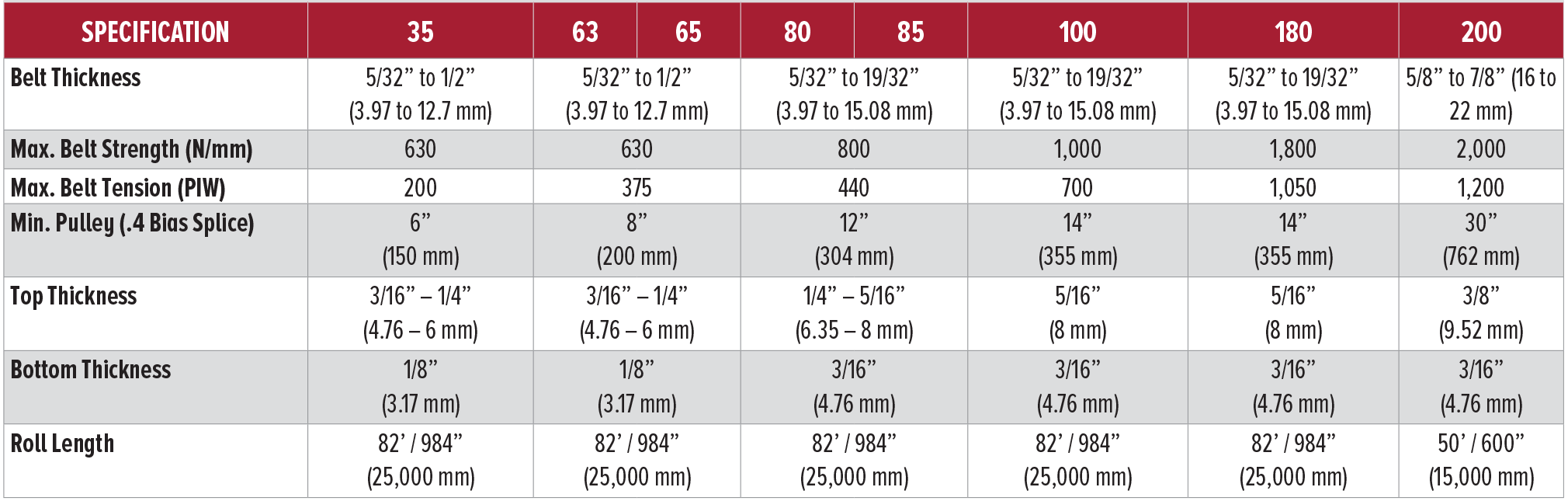

Part Number	Description	Belt Thickness	PIW	Weight Lbs
ASG-GSS-63-AR	Abrasion Resistant	5/32" to 1/2” (3.97 to 12.7 mm)	375	-
ASG-GSS-63-HTR	Heat Resistant	5/32" to 1/2” (3.97 to 12.7 mm)	375	-
ASG-GSS-63-AR-BB	Bare Back	5/32" to 1/2” (3.97 to 12.7 mm)	375	-
ASG-GSS-63-AR-SS	Stainless Steel	5/32" to 1/2” (3.97 to 12.7 mm)	375	-
ASG-GSS-65-LT	Low Temperature	5/32" to 1/2” (3.97 to 12.7 mm)	375	-
ASG-GSS-80-AR	Abrasion Resistant	5/32" to 19/32” (3.97 to 15.08 mm)	440	-
ASG-GSS-80-HTR	Heat Resistant	5/32" to 19/32” (3.97 to 15.08 mm)	440	-
ASG-GSS-85-LT	Low Temperature	5/32" to 19/32” (3.97 to 15.08 mm)	440	-
ASG-GSS-100-AR	Abrasion Resistant	5/32" to 19/32” (3.97 to 15.08 mm)	700	-
ASG-GSS-100-HTR	Heat Resistant	5/32" to 19/32” (3.97 to 15.08 mm)	700	-
ASG-GSS-180-AR	Abrasion Resistant	9/32" to 13/16” (7.14 to 20.64 mm)	1050	-
ASG-GSS-180-HTR	Heat Resistant	9/32" to 13/16” (7.14 to 20.64 mm)	1050	-
ASG-GSS-200-AR	Abrasion Resistant	5/8" - 7/8" (.625 to .875 mm)	1200	-

Part Numbers

DURA-TUFF^® Grizzly™ Screw-Splice

Available per inch

Abrasion Resistant (AR)

Part Number	Description	Belt Thickness	PIW	Weight Lbs
ASG-GSS-63-AR-DT	Abrasion Resistant with Dura-Tuff® Top Cover	5/32" to 1/2” (3.97 to 12.7 mm)	360	-
ASG-GSS-80-AR-DT	Abrasion Resistant with Dura-Tuff® Top Cover	5/32" to 19/32” (3.97 to 15.08 mm)	450	-
ASG-GSS-100-AR-DT	Abrasion Resistant with Dura-Tuff® Top Cover	5/32" to 19/32” (3.97 to 15.08 mm)	650	-
ASG-GSS-180-AR-DT	Abrasion Resistant with Dura-Tuff® Top Cover	9/32" to 13/16” (7.14 to 20.64 mm)	1200	-
ASG-GSS-200-AR-DT	Abrasion Resistant with Dura-Tuff® Top Cover	5/8" - 7/8" (.625 to .875 mm)	1200	-
