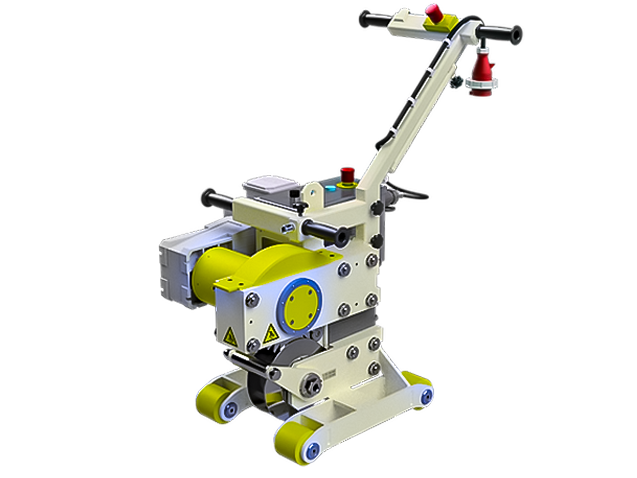

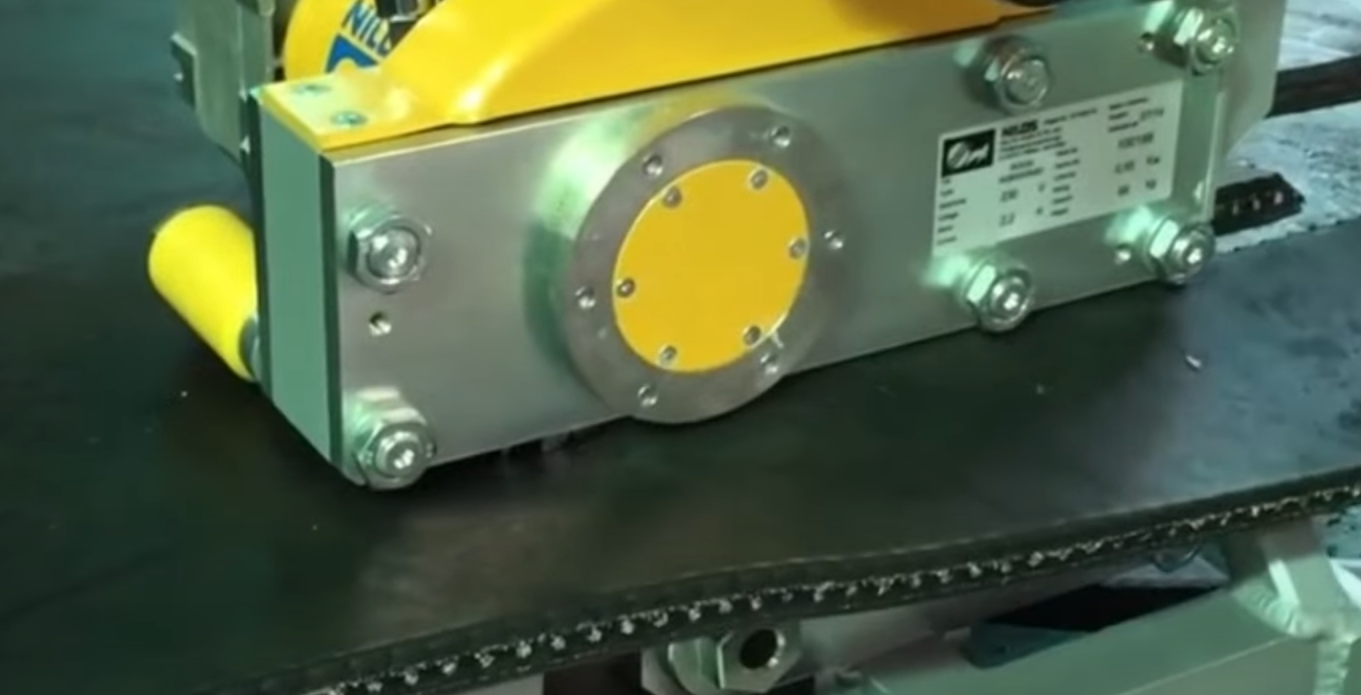

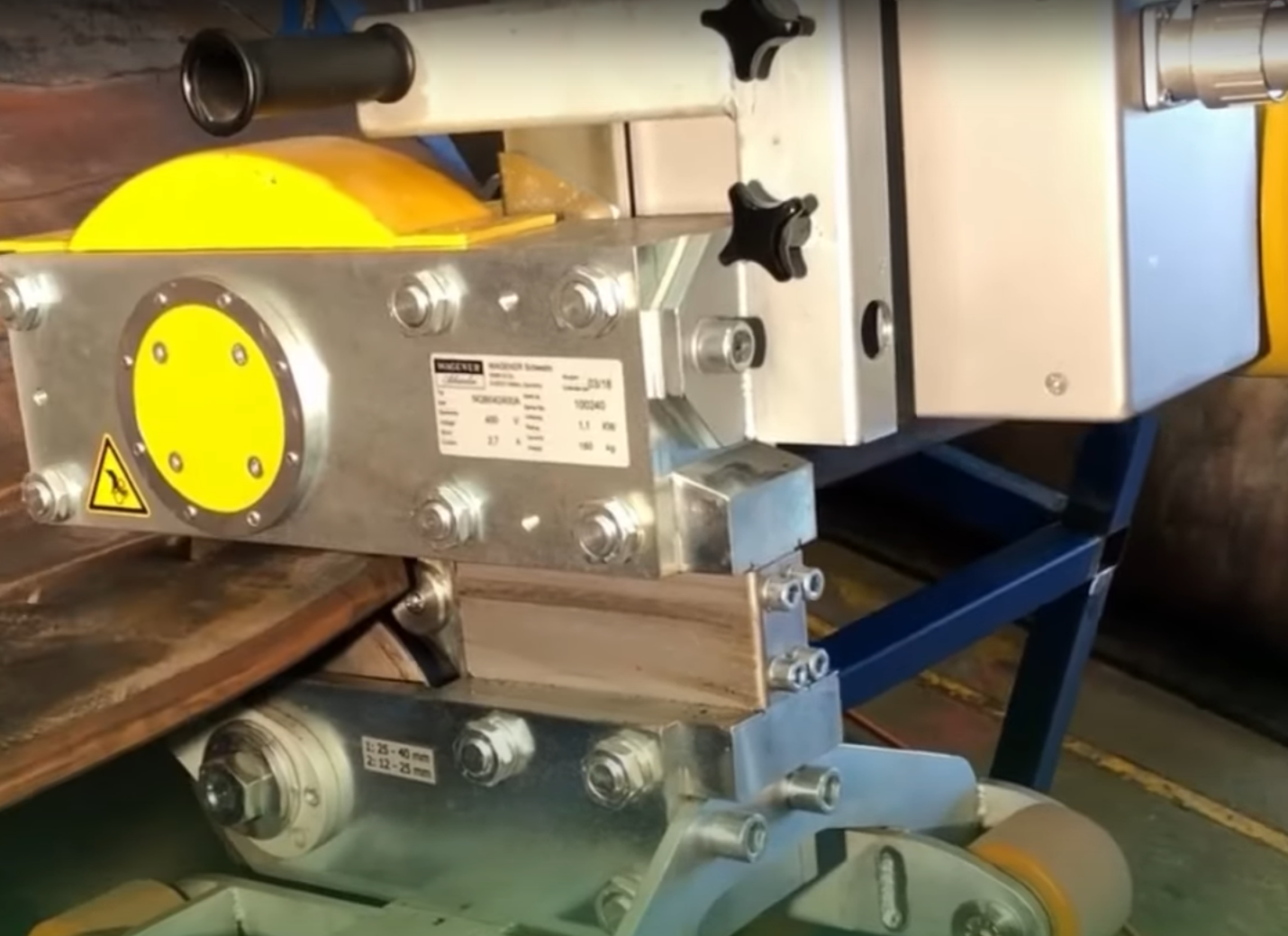

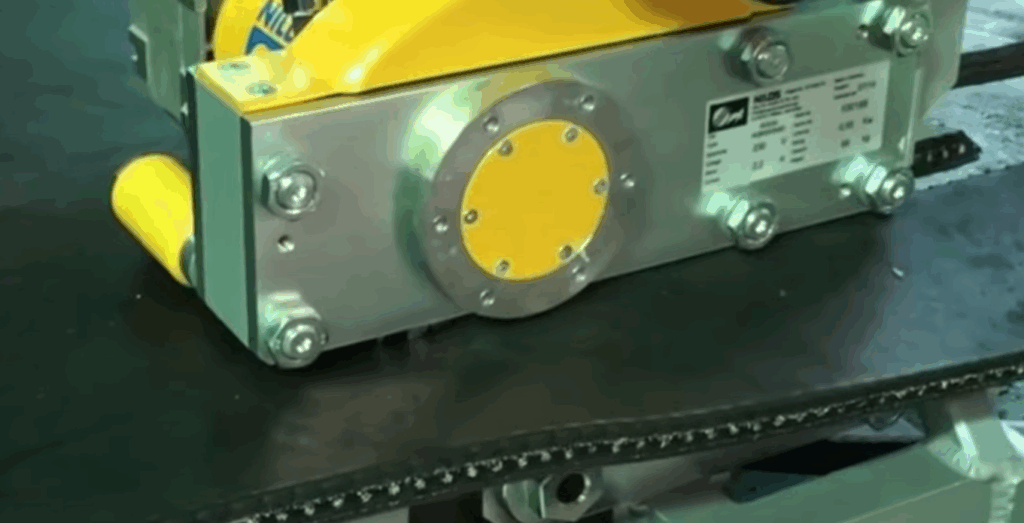

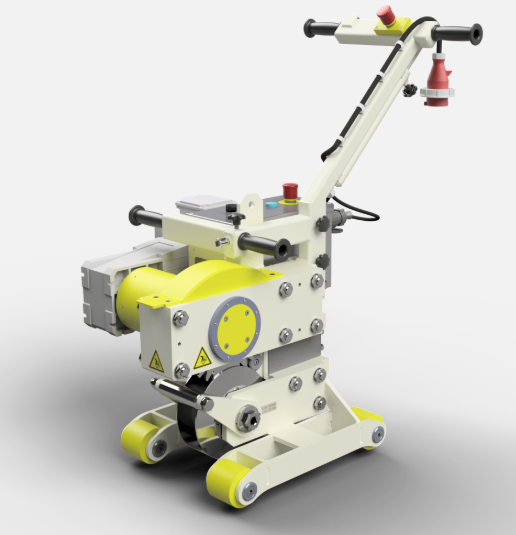

Discover the ROTOCUT – the pioneering cutting tool for steel cord conveyor belts that allows you to cut safely and precisely without the need for a guide rail.
FEATURES
- No sparks or rubber debris.
- WAGENER RCE Rotocut serrated and pinion blades move slowly and within the main body of unit. Very safe.
- WAGENER RCE Rotocut blades do not break, only wear out after extensive use.
- Minimal noise (only crunching noise of steel cord wires). Hearing protection not required.
- No risk of burns due to WAGENER RCE Rotocut cutting method.
- No fire risk as no sparks created.
- No toxic smoke created in cutting process so no risk of respiratory problems for applicator.
- Hot Work Permit not required resulting in less down time.
Product Specifications
- Belt thickness up to 2 in / 40 mm
- Ø steel cable up to 0.5 in / 11 mm (ST5400)
- Power 1.10 kW, 400 V, 50 Hz, 3 Ph (other voltages on request)
- Cutting speed 1.10 m/min
- Load-bearing side max. 0.75 in / 19 mm
- Running side max. 0.4 in / 10 mm
- Weight approx. 408 lbs / 185 kg
- EMERGENCY OFF switch
Part Numbers
This is a custom ASGCO® product, for more information contact us.
