TACKLES THE TOUGHEST CARRY-BACK APPLICATIONS

Durability – the large one-piece or three piece (for tight spaces) over-sized mounting tube is designed to stand up to toughest conditions.

E-Z Torque® HD Tensioner – (lifetime warranty) patented made of all 304 stainless steel mounting plates, collars and springs allows the blades to self adjust throughout the entire life of the blade and is the most robust and accurate belt cleaner tensioner in the industry.

One-Time Tensioning– the patented E-Z Torque® tensioner maintains constant tension throughout the life of the blade.

Blade-Wear Indicator– allows you to monitor blade wear easily without having to shut the system down for inspection.

Torque Spring – provides a greater degree of tensioning per inch of blade, verses compression springs which require more tensioning adjustment for the life of the blade.

Rubber Corrugated Dust-Covers and UHMW Bushings – ensure no build-up in the spring tensioning area and provide smooth non-binding tensioning.

Quick-Change Blade – stainless steel pin blade change-out system, one-minute, no-tool

Lifetime Warranty – on mounting tube and tensioner

MSHA Accepted – #MSHA IC – 174/1

ASGCO E-Z Torque<sup>®</sup> Tensioner Super-Skalper<sup>®</sup> HD Belt Cleaner

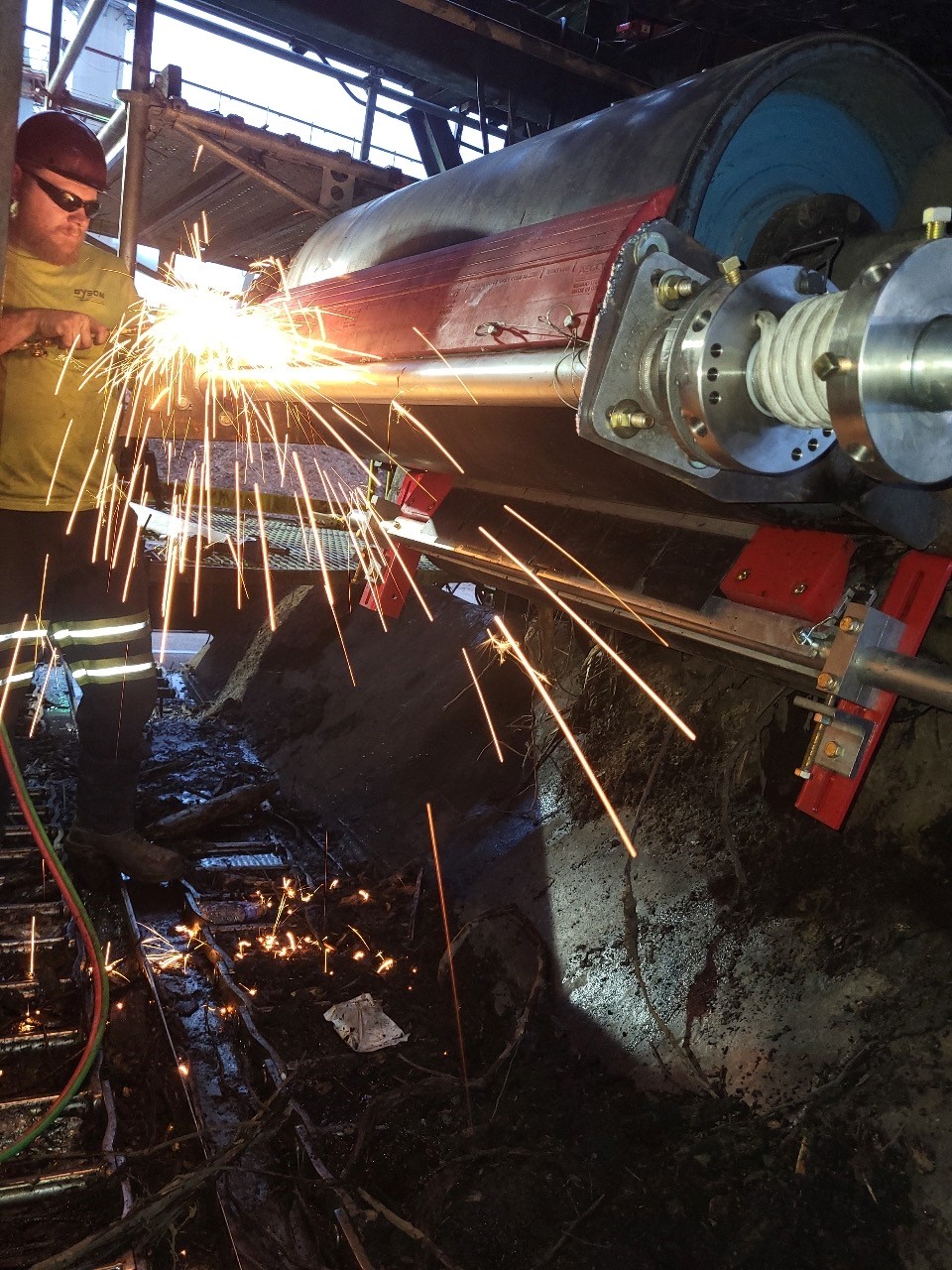

E-Z Torque® Tensioner

One-Time Tensioning – the patented E-Z Torque tensioner maintains constant tension throughout the life of the blade.

Torque Spring – provides a greater degree of tensioning per inch of blade verses compression springs which require more tensioning adjustment for the life of the blade.

Rubber Corrugated Dust Covers and UHMW Bushings – ensures no build up in the spring tensioning area and provides smooth nonbinding tensioning

Quick-Change Blade – stainless steel pin blade change out system uses no-tools

100% LIFETIME WARRANTY





Product Specifications

Maximum Belt Speed – 1200fpm (6.0 m/sec)

Pulley Diameter – 20″ (400mm+)

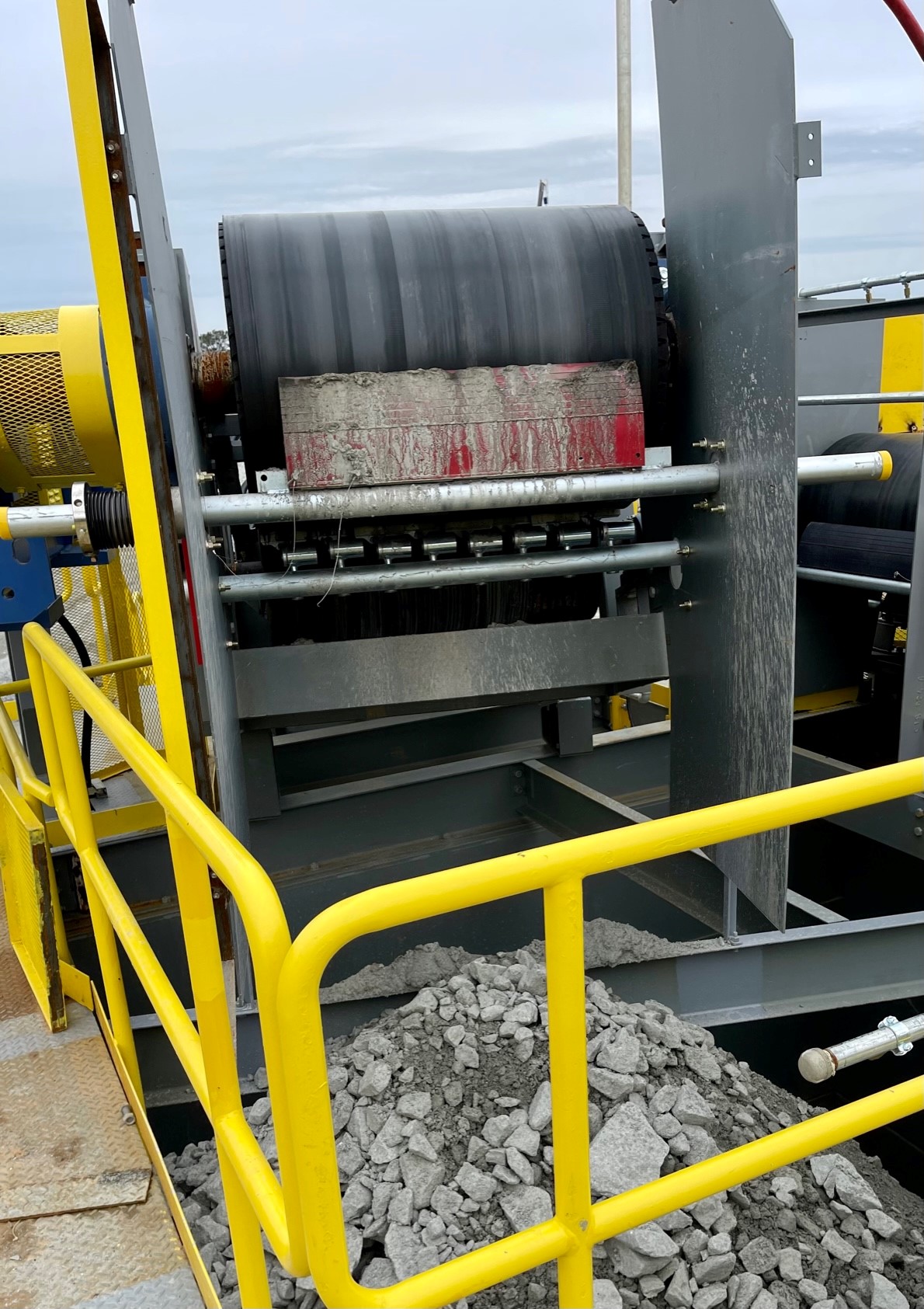

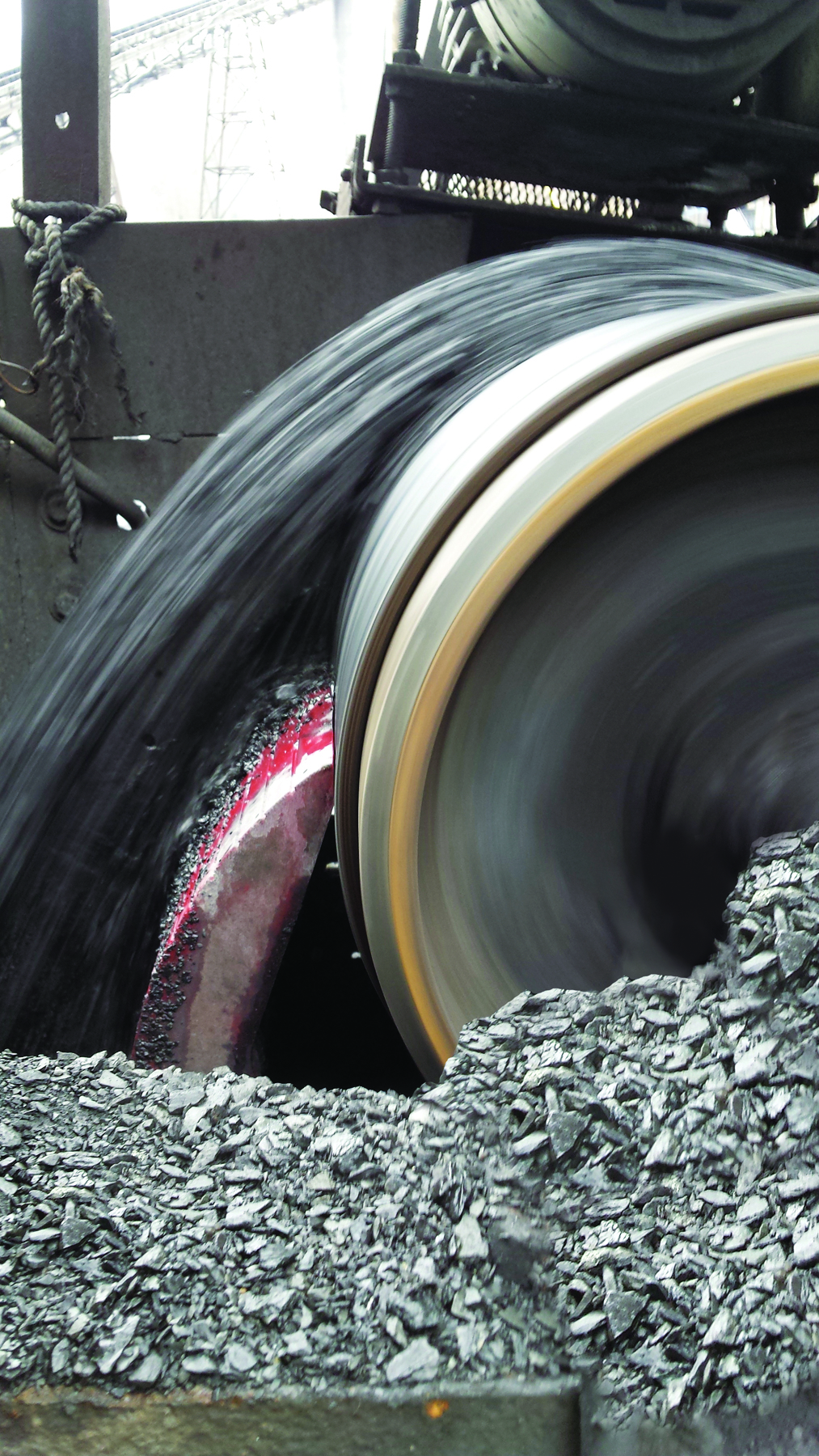

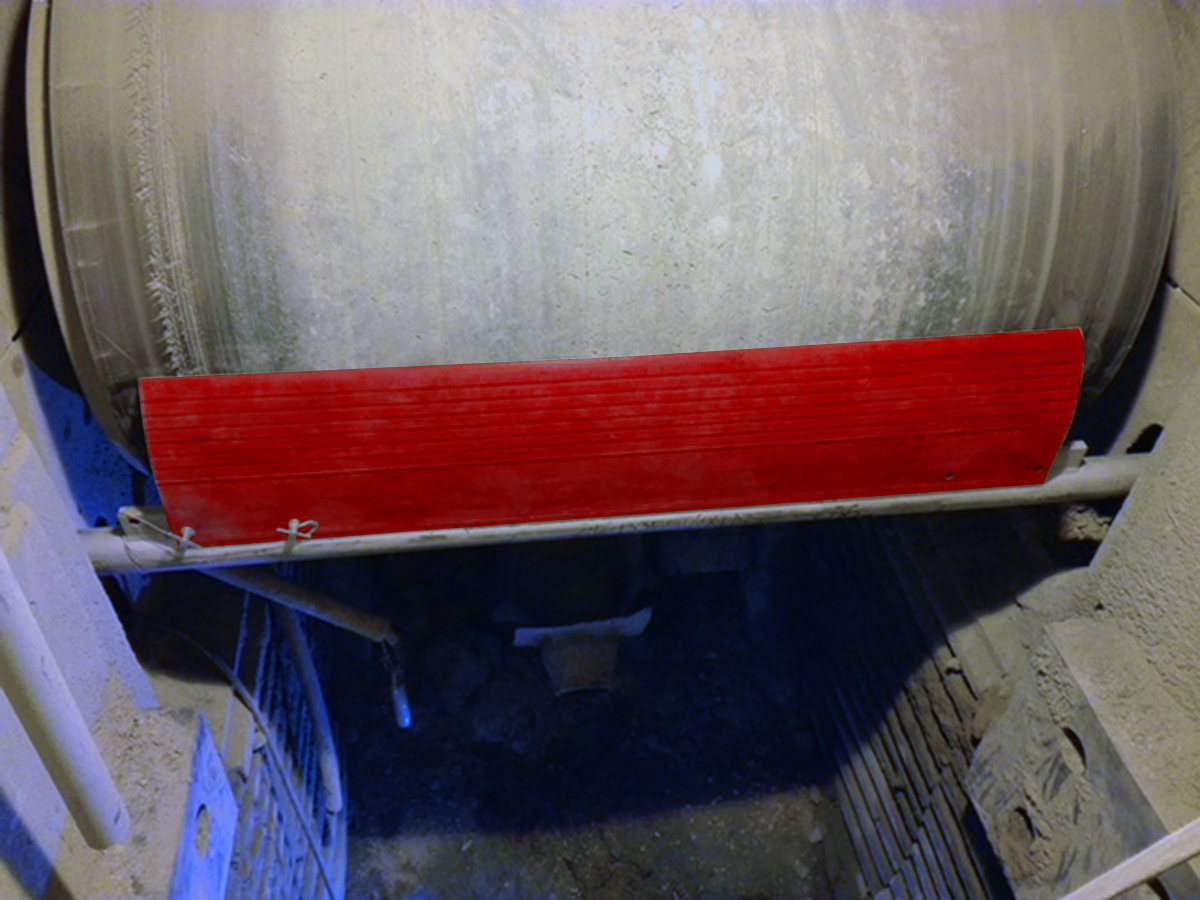

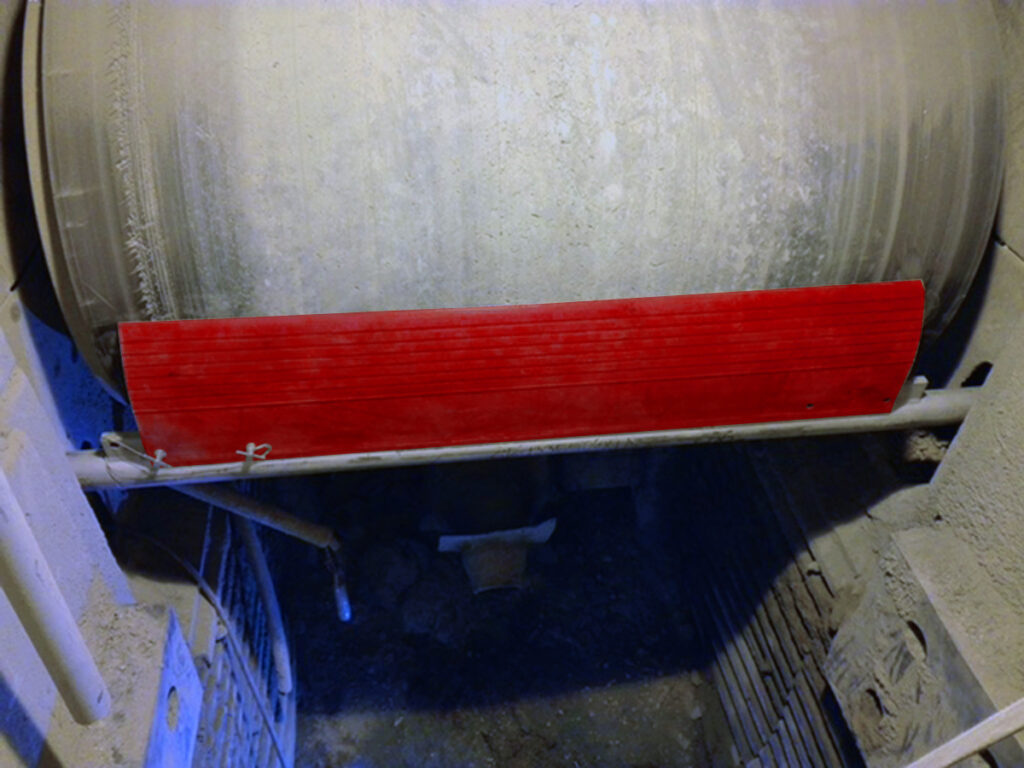

Applications – Underground Mining, Hard Rock Mining, Metals (copper/gold) Mining, Steel Mills, Iron Ore, Bulk Shipping Terminals, Coal Fired Power Plants, Coal Preparation Plants

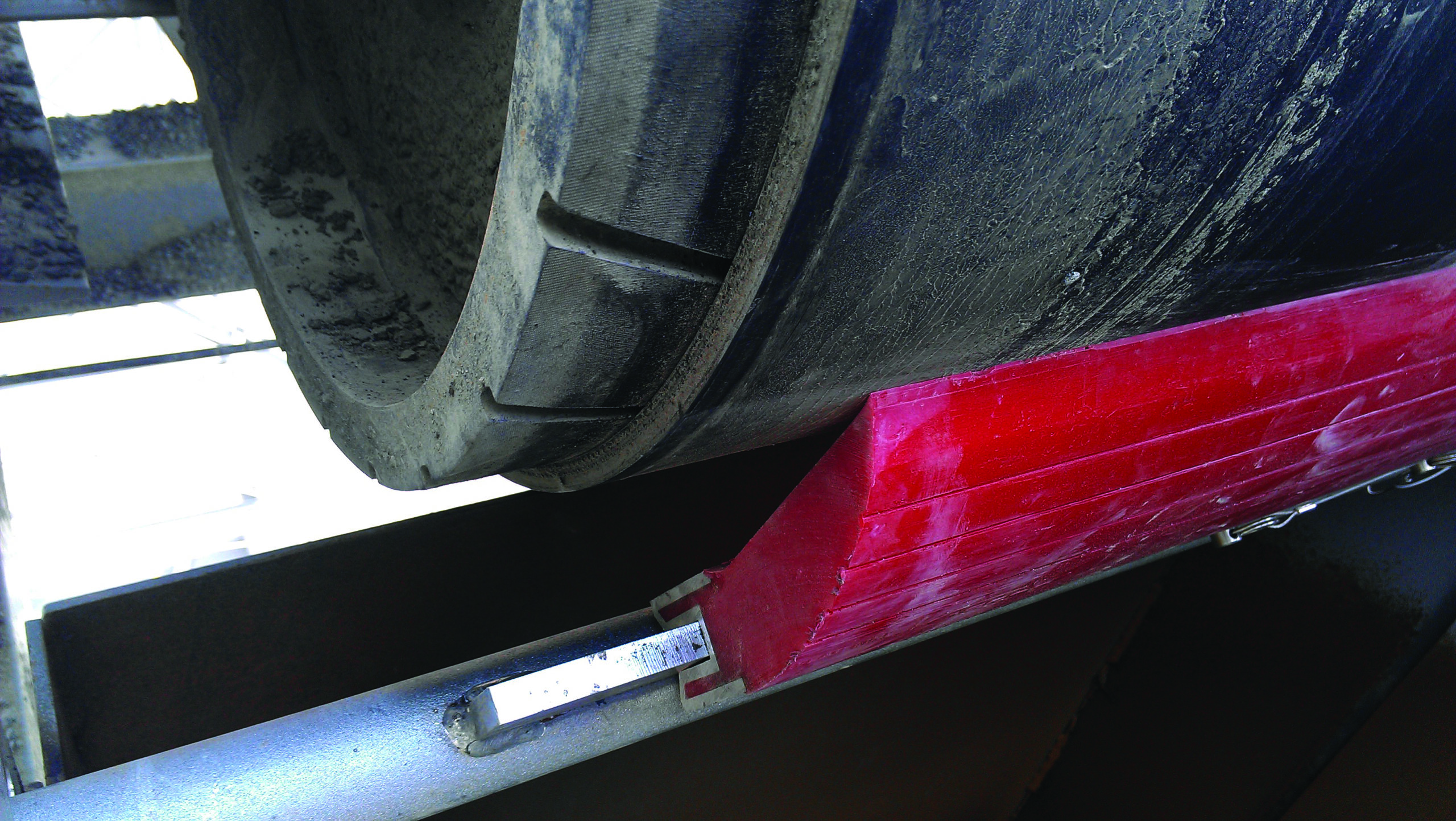

Blade Angle – A flat pulley surface side of the blade ensures a sharp point contact and material clearance.

  • More Aggressive
  • Self-Sharpening
  • Less Abrasion Between Blade and Belt
  • Less Chance of Blade Feathering

Part Numbers


Super-Skalper® HD Primary Full Belt Width with E-Z Torque® Tensioner

Super-Skalper HD Systems with all necessary mounting components in one economical package. Each System includes: one (1)  Super-Skalper Blade, (1) Transverse Mounting Element, (1) Mounting Assembly Kit, (1) E-Z Torque Tensioner. ** Please specify Blade Type: SK2, SK4, HT when ordering **

Part Number Belt Width in. Belt Width mm. Blade Width in. Blade Width mm. Weight lbs
M-SSK*-SYS-36-EZT-HD 36 900 36 900 91
M-SSK*-SYS-42-EZT-HD 42 1050 42 1050 98
M-SSK*-SYS-48-2EZT-HD 48 1200 48 1200 134
M-SSK*-SYS-54-2EZT-HD 54 1350 54 1350 142
M-SSK*-SYS-60-2EZT-HD 60 1500 60 1500 149
M-SSK*-SYS-72-2EZT-HD 72 7800 72 1800 164
M-SSK*-SYS-84-2EZT-HD 84 2100 84 2100 178
M-SSK*-SYS-96-2EZT-HD 96 2400 96 2400 193

Part Numbers

Super-Skalper® HD with E-Z Torque® (Belt Width-6)

Super-Skalper HD Systems with all necessary mounting components in one economical package. Eash System includes: one (1) Super-Skalper Blade, (1) Transverse Mounting Element, (1) Mounting Assembly Kit, (1) E-Z Torque Tensioner. ** Please specify Blade Type: SK2, SK4, HT, UHT when ordering**

Part Number Belt Width in. Belt Width mm. Blade Width in. Blade Width mm. Weight lbs
M-SSK*-SYS-36-EZT-30-HD 36 900 30 750 86
M-SSK*-SYS-42-EZT-36-HD 42 150 36 900 93
M-SSK*-SYS-48-2EZT-42-HD 48 1200 42 1050 129
M-SSK*-SYS-54-2EZT-48-HD 54 1350 48 1200 137
M-SSK*-SYS-60-2EZT-54-HD 60 1500 54 1350 144
M-SSK*-SYS-72-2EZT-66-HD 72 1800 66 1650 159
M-SSK*-SYS-84-2EZT-78-HD 84 2100 78 2000 173
M-SSK*-SYS-96-2EZT-90-HD 96 2400 90 2250 188
