Armorite® Chocky Conveyor Wear Bars

Great Alternative To Expensive and Hard Facing Welding Methods

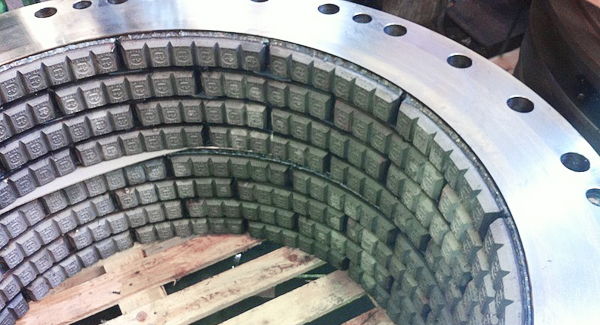

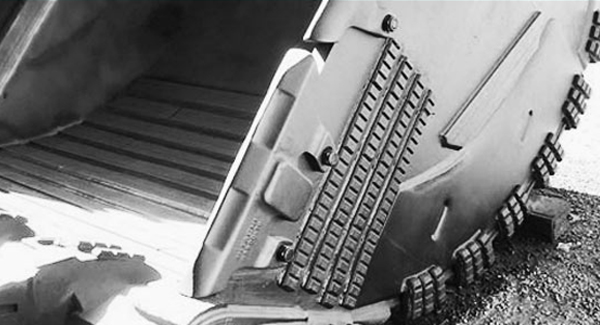

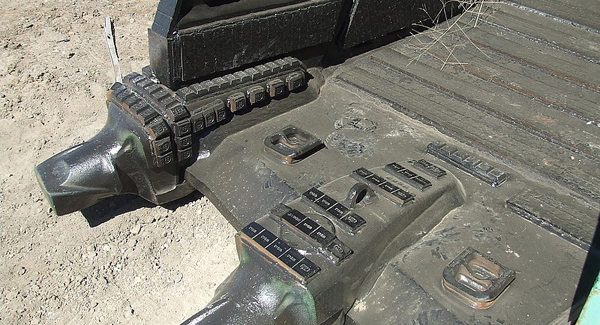

Armorite® Chocky Bars offer protection on contoured surfaces within the conveyor system such as buckets, loaders, excavators and dragline machines, or chute linings and rock box edges.

ASGCO Armorite® Chocky Conveyor Wear Bars

Armorite® Chocky Conveyor Wear Bars

Great Alternative To Expensive and Hard Facing Welding Methods

Armorite® Chocky Bars offer protection on contoured surfaces within the conveyor system such as buckets, loaders, excavators and dragline machines, or chute linings and rock box edges.

ARMORITE® CHOCKY CONVEYOR WEAR BARS

Design Features
  • White Iron: Modified AS2027 15/3 Cr Mo
  • Vacuumed brazed and liquid nitrogen cooled to achieve a high strength joint
  • Mild steel backing offers strength, machinability, and impact resistance

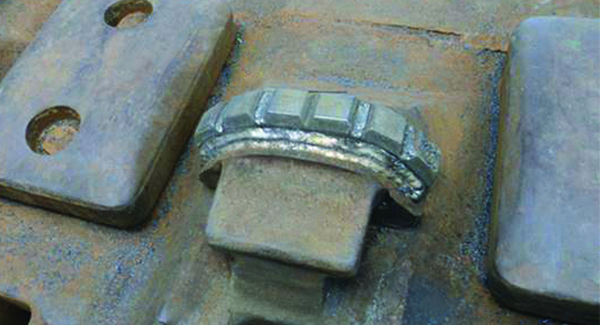

  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
  • Ease if fitment, very versatile
  • Lower operating costs
  • Longer Service when compared to conventional materials
  • Increased production
  • Improved product efficiency
  • Increased equipment availability

PROVIDE MAXIMUM IMPACT AND ABRASION PROTECTION

ASGCO Armorite® is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite® provides maximum protection in high wear areas, with the mild steel backing cushioning the white iron enabling it to withstand impact. Armorite® is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

PRODUCT FEATURES
  • White Iron: Modified AS2027 15/3 Cr Mo
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed
  • Ease if fitment, very versatile

PRODUCT SPECIFICATIONS

Applications – Chute Linings, Rock-Box Edges, Grizzly Caps/Screens, Transfer Points, Impact Plates, Distributor Plates, Arm/Hub Liners, Bin Liners, Hopper Wear Plates, Divder/Splitter Bars, General Wear Protection, Liner Panels

Available Thickness – White Iron 3/4” – Base Plate 3/8”

Custom size available at customers request

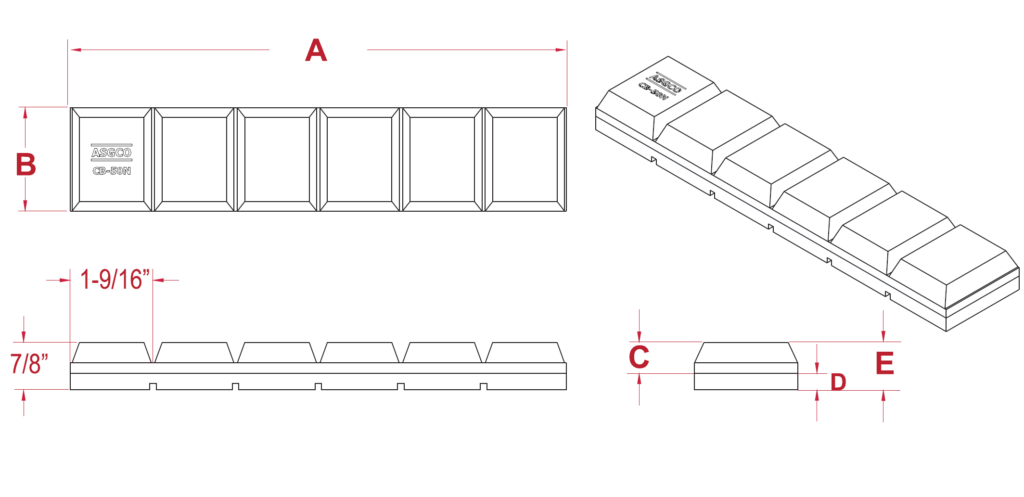

Part Numbers

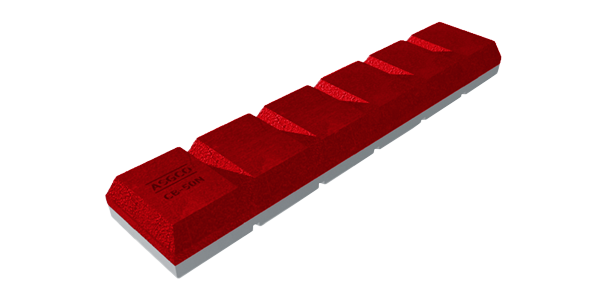

Armorite® Chocky Bar

Thickness White Iron 5/8″ – Thickness Base Plate 3/8″

Part Number Description Length in. Width In. Thickness In. Weight lbs
ASG-AMR-CB-40 Chocky Bar 9-1/2 1-9/16 8 4
ASG-AMR-CB-40N Chocky Bar 9-1/2 1-9/16 8 4
ASG-AMR-CB-50N Notched Chocky Bar 9-1/2 2 1 5
ASG-AMR-CB-65N Notched Chocky Bar 9-1/2 2-3/4 1 5.5
