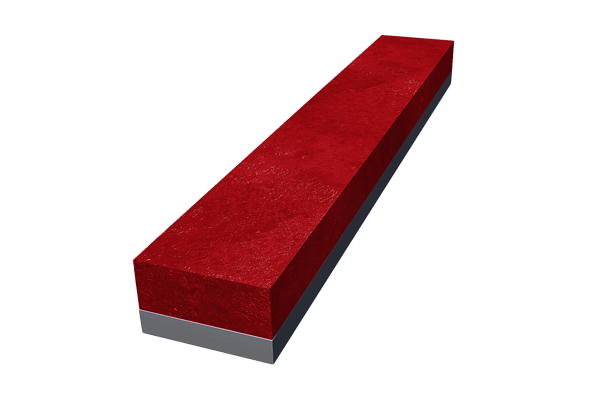

Armorite® Grizzly Screen Cap Conveyor Wear Bars

Ideal For Aggregates and Coal

Armorite® Grizzly Screen Caps and Conveyor Wear Bars will reduce wear and increase the life of a crusher. By removing fines upstream of the crusher as well as spreading bulk material so it is distributed over the width of the crusher, it wears evenly and the life is greatly extended.

Armorite® Grizzly Screen Cap Conveyor Wear Bars

Ideal For Aggregates and Coal

Armorite® Grizzly Screen Caps and Conveyor Wear Bars will reduce wear and increase the life of a crusher. By removing fines upstream of the crusher as well as spreading bulk material so it is distributed over the width of the crusher, it wears evenly and the life is greatly extended.

ARMORITE® GRIZZLY SCREEN CAP CONVEYOR WEAR BARS

Design Features
  • White Iron: Modified AS2027 15/3 Cr Mo
  • Vacuumed brazed and liquid nitrogen cooled to achieve a high strength joint
  • Mild steel backing offers strength, machinability, and impact resistance
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
  • Ease if fitment, very versatile
  • Lower operating costs
  • Longer Service when compared to conventional materials
  • Increased production
  • Improved product efficiency
  • Increased equipment availability

PROVIDE MAXIMUM IMPACT AND ABRASION PROTECTION

ASGCO Armorite® is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite® provides maximum protection in high wear areas, with the mild steel backing cushioning the white iron enabling it to withstand impact. Armorite® is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

PRODUCT FEATURES
  • White Iron: Modified AS2027 15/3 Cr Mo
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed
  • Ease if fitment, very versatile

PRODUCT SPECIFICATIONS

Applications – Grizzly Screens, Chutes, Hoppers, Bins, Rock Box Edges and other high wear applications.

3/4” Armorite – Molded to a Mild Steel Back Plate

Available Thickness – White Iron 3/4” – Base Plate 3/8”

Custom size available at customers request

Part Numbers

Custom sizes available all customers request all dimensions +/- 1/16
All dimensions in inches.
Part Number Description A B C D E Weight lbs
ASG-AMR-50X2X9 Wear Bar 9 1.9375 1.50 0.4375 1.9375 20.0
