Excalibur® Food Grade Primary Belt Cleaners

The Excalibur® Is A Novel Belt Cleaning System

Uses a unique blade, holder and tensioning mechanism. Particularly suited for light duty thermoplastic belts with widths from several inches to 10’. This food grade belt cleaner is designed and configured to meet the most stringent sanitary requirements of the food manufacturing industry and uses USFDA and USDA  approved materials. In fact, no other belt cleaner offers these crucial operational features, saving customers money while assuring safe, high quality manufacturing.

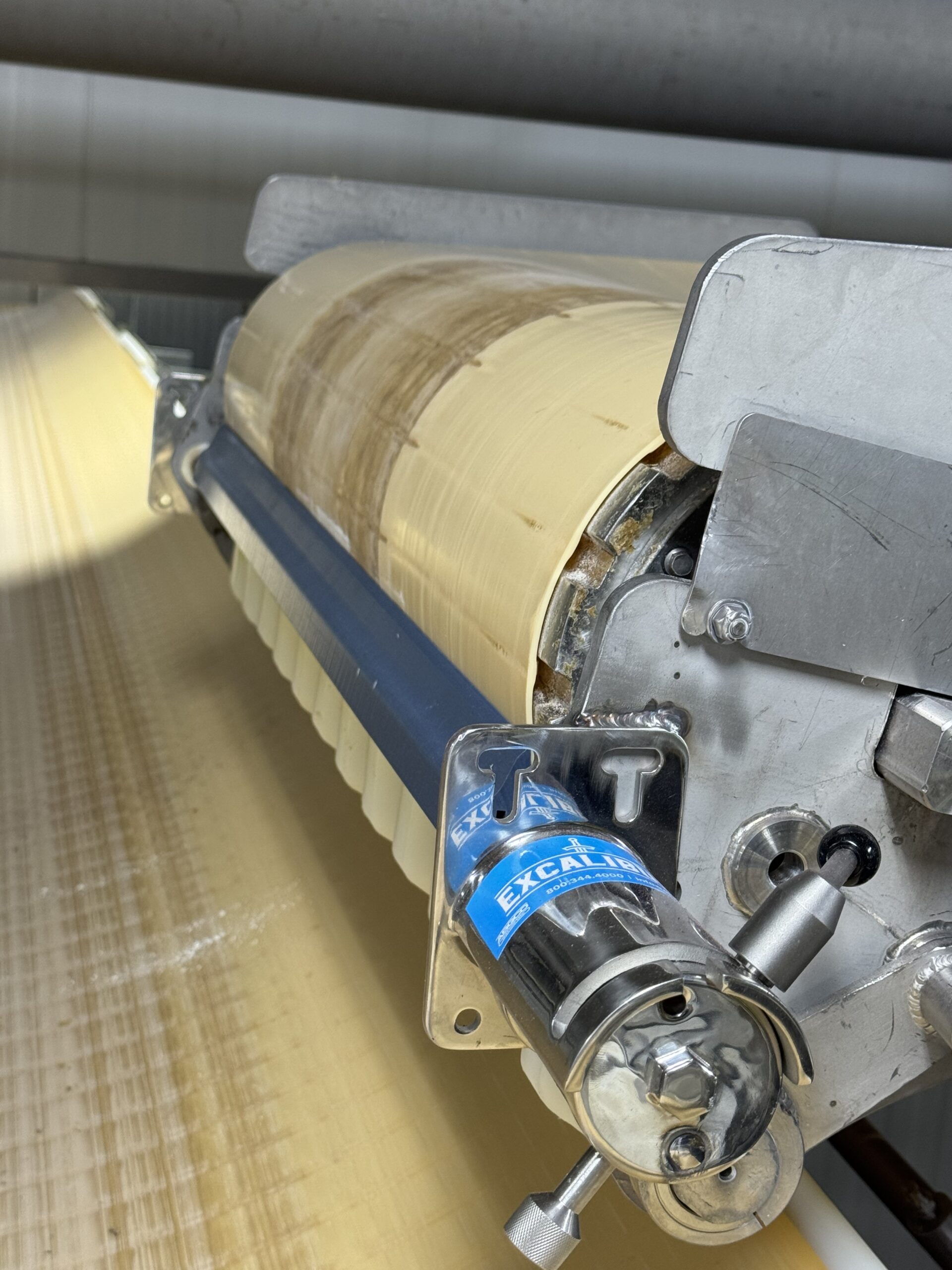

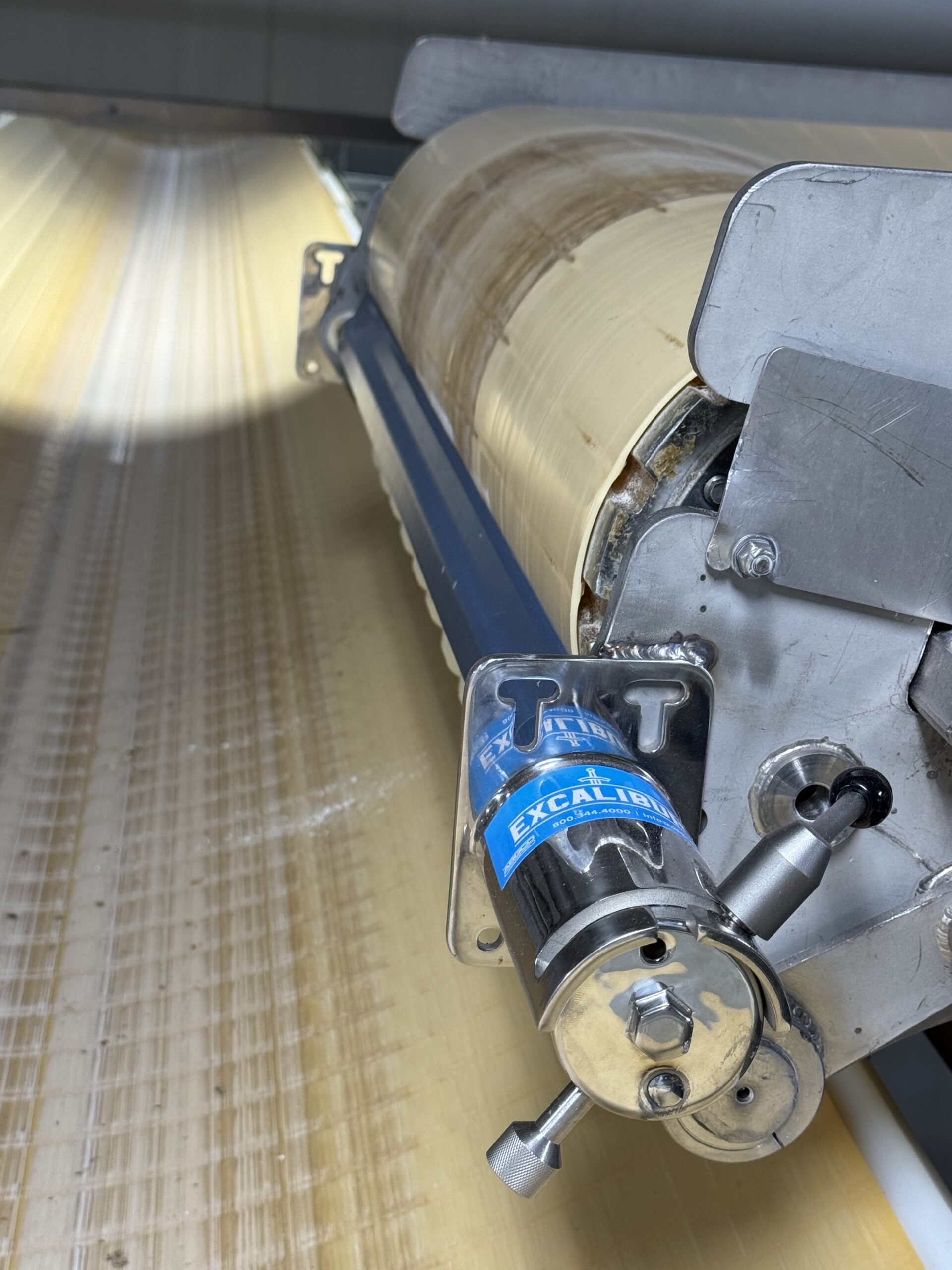

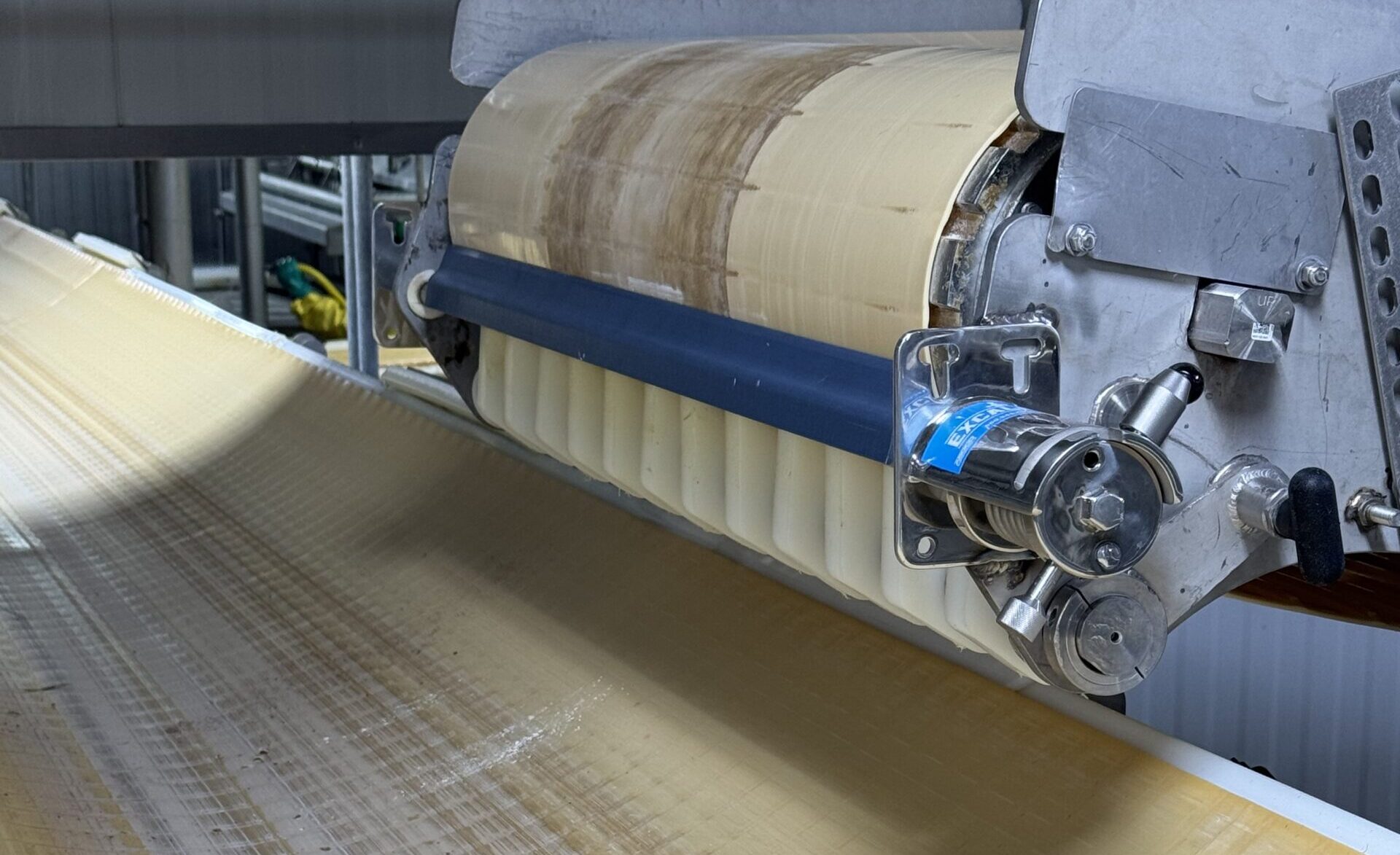

Excalibur Conveyor Belt Cleaner

Excalibur® Food Grade Primary Belt Cleaners

The Excalibur® Is A Novel Belt Cleaning System

Uses a unique blade, holder and tensioning mechanism. Particularly suited for light duty thermoplastic belts with widths from several inches to 10’. This food grade belt cleaner is designed and configured to meet the most stringent sanitary requirements of the food manufacturing industry and uses USFDA and USDA  approved materials. In fact, no other belt cleaner offers these crucial operational features, saving customers money while assuring safe, high quality manufacturing.

THE EXCALIBUR® IS A NOVEL BELT CLEANING SYSTEM

Design Features
  • Works great on flexible modular plastic table top conveyor belting
  • Sanitary and safe lightweight
  • Features a unique blade, holder and tensioning mechanism
  • Snap-on/off conveyor belt scraper blade
  • Many belt cleaning blade materials available
  • Complete disassembly in seconds
  • Precision tension selection with torsion spring tensioner
  • 300 Series Electro-polished stainless steel
  • BISSC certified design
  • FDA/USDA compliant materials
  • Primary and secondary conveyor belt cleaner mounting locations
Excalibur® Snap-On Replacement Blades



SELECTING INSTALLATION

When the Excalibur® is mounted on the Head Pulley, this is referred to as the Primary orientation. This will aid in dislodging fugitive material from the belt and is very effective.

On some conveyors, lack of space at the Head Pulley may result in the need to position the Excalibur® at a Secondary Location. All procedures are the same as preparing for the Primary Installation except the position is Secondary and there is no “N” Dimension involved.

Product Specifications

Temperature Range – UHMW: -20°F to 140°F (-29°C to 60°C)

Blade Height – 3° (76mm)

Blade Width Range – 4° to 120° (102 to 3048mm)

Pole/Mounting Material – 304 Stainless Steel

Blue Hardness – UHMW: 63D Shore Hardness Urethane 85A Shore Hardness

Pulley Diameter Range – -1″ to 8″+ (25 to 457mm)

Blade Material – Food-grade-UHMW, UHMW with Stainless Steel, or Urethane with PVC

SNAP-ON REPLACEMENT BLADES

Simple snap in place blade design allows for easy installment and disassembly in seconds.

Works great on flexible modular plastic table top conveyor belting.

Part Numbers

Excalibur® Belt Cleaning System with (01) UHMW Natural Blade (Right or Left Hand Side) S/S Spring Assembly

Substitute the * in the part number below for one of the following: “R” (Right Hand) or “L” (Left Hand)

Part Number Blade Width in. Blade Width mm. Weight lbs
M-EXSC-01-*H-012.0 12 304 10
M-EXSC-01-*H-013.0 13 330 10
M-EXSC-01-*H-014.0 14 355 11
M-EXSC-01-*H-015.0 15 380 11
M-EXSC-01-*H-016.0 16 406 11
M-EXSC-01-*H-017.0 17 431 11
M-EXSC-01-*H-018.0 18 457 12
M-EXSC-01-*H-019.0 19 482 12
M-EXSC-01-*H-020.0 20 508 12
M-EXSC-01-*H-021.0 21 533 12
M-EXSC-01-*H-022.0 22 558 13
M-EXSC-01-*H-023.0 23 584 13
M-EXSC-01-*H-024.0 24 609 13
M-EXSC-01-*H-025.0 25 635 13
M-EXSC-01-*H-026.0 26 660 14
M-EXSC-01-*H-027.0 27 685 14
M-EXSC-01-*H-028.0 28 711 14
M-EXSC-01-*H-029.0 29 736 14
M-EXSC-01-*H-030.0 30 762 15
M-EXSC-01-*H-031.0 31 787 15
M-EXSC-01-*H-032.0 32 812 15
M-EXSC-01-*H-033.0 33 838 15
M-EXSC-01-*H-034.0 34 863 16
M-EXSC-01-*H-035.0 35 889 16
M-EXSC-01-*H-036.0 36 914 16
M-EXSC-01-*H-037.0 37 939 16
M-EXSC-01-*H-038.0 38 965 17
M-EXSC-01-*H-039.0 39 990 17
M-EXSC-01-*H-040.0 40 1016 17
M-EXSC-01-*H-041.0 41 1041 17
M-EXSC-01-*H-042.0 42 1066 18
M-EXSC-01-*H-043.0 43 1092 18
M-EXSC-01-*H-044.0 44 1117 18
M-EXSC-01-*H-045.0 45 1143 18
M-EXSC-01-*H-046.0 46 1168 20
M-EXSC-01-*H-047.0 47 1193 20
M-EXSC-01-*H-048.0 48 1219 20
M-EXSC-01-*H-049.0 49 1244 20

Part Numbers

Excalibur Belt Cleaning System with (01) UHMW Natural Blade Excalibur Belt Cleaning System for Blade Length > 25″ (Right or Left Hand Side) S/S Spring Assembly

Substitute the * in the part number below for one of the following: “R” (Right Hand) of “L” (Left Hand)

Part Number Blade Width in. Blade Width mm. Weight lbs
M-EXSC-01-*H-026.0 26 660 14
M-EXSC-01-*H-027.0 27 685 14
M-EXSC-01-*H-028.0 28 711 14
M-EXSC-01-*H-029.0 29 736 14
M-EXSC-01-*H-030.0 30 762 15
M-EXSC-01-*H-031.0 31 787 15
M-EXSC-01-*H-032.0 32 812 15
M-EXSC-01-*H-033.0 33 838 15
M-EXSC-01-*H-034.0 34 863 16
M-EXSC-01-*H-035.0 35 889 16
M-EXSC-01-*H-036.0 36 914 16
M-EXSC-01-*H-037.0 37 939 16
M-EXSC-01-*H-038.0 38 965 17
M-EXSC-01-*H-039.0 39 990 17
M-EXSC-01-*H-040.0 40 1016 17
M-EXSC-01-*H-041.0 41 1041 17
M-EXSC-01-*H-042.0 42 1066 18
M-EXSC-01-*H-043.0 43 1092 18
M-EXSC-01-*H-044.0 44 1117 18
M-EXSC-01-*H-045.0 45 1143 18
M-EXSC-01-*H-046.0 46 1168 20
M-EXSC-01-*H-047.0 47 1193 20
M-EXSC-01-*H-048.0 48 1219 20
M-EXSC-01-*H-049.0 49 1244 20

Part Numbers

Excalibur® Belt Cleaning System with (01) UHMW Natural Blade Long Span Blade Holder Frame Width>54 1/2″
(Right or Left Hand Side) S/S Spring Assembly

Substitute the * in the part number below for one of the following:  “R” (Right Hand) or “L” (Left Hand)

Part Number Blade Width in. Blade Width mm. Weight lbs
M-EXSC-01-*H-043.0R 43 1092 29
M-EXSC-01-*H-044.0R 44 1117 29
M-EXSC-01-*H-045.0R 45 1143 29
M-EXSC-01-*H-046.0R 46 1168 29
M-EXSC-01-*H-047.0R 47 1193 29
M-EXSC-01-*H-048.0R 48 1219 29
M-EXSC-01-*H-049.0R 49 1244 29
M-EXSC-01-*H-050.0 50 1270 29
M-EXSC-01-*H-051.0 51 1295 30
M-EXSC-01-*H-052.0 52 1320 30
M-EXSC-01-*H-053.0 53 1346 30
M-EXSC-01-*H-054.0 54 1371 30
M-EXSC-01-*H-055.0 55 1397 30
M-EXSC-01-*H-056.0 56 1422 32
M-EXSC-01-*H-057.0 57 1447 32
M-EXSC-01-*H-058.0 58 1473 32
M-EXSC-01-*H-059.0 59 1498 32
M-EXSC-01-*H-060.0 60 1524 32
M-EXSC-01-*H-061.0 61 1549 34
M-EXSC-01-*H-062.0 62 1675 34
M-EXSC-01-*H-063.0 63 1600 34
M-EXSC-01-*H-064.0 64 1625 34
M-EXSC-01-*H-065.0 65 1651 34
M-EXSC-01-*H-066.0 66 1676 36
M-EXSC-01-*H-067.0 67 1702 36
M-EXSC-01-*H-068.0 68 1727 36
M-EXSC-01-*H-069.0 69 1753 36
M-EXSC-01-*H-070.0 70 1778 36
M-EXSC-01-*H-071.0 71 1803 36
M-EXSC-01-*H-072.0 72 1829 38
M-EXSC-01-*H-073.0 73 1854 38
M-EXSC-01-*H-074.0 74 1880 38
M-EXSC-01-*H-075.0 75 1905 38
M-EXSC-01-*H-076.0 76 1930 38
M-EXSC-01-*H-077.0 77 1956 38
M-EXSC-01-*H-078.0 78 1981 38
M-EXSC-01-*H-079.0 79 2006 38
