Armorite™ Conveyor Wear Knife Edge & Shredder Tips

Specifically Designated For Sugar and Recycling Industries

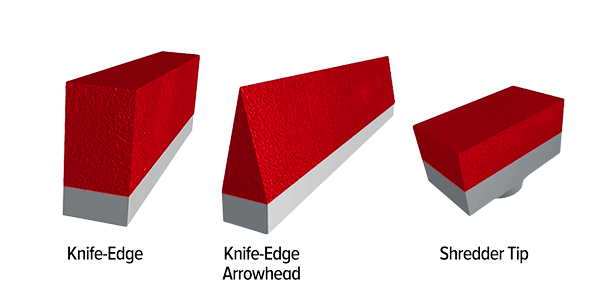

Armorite™ Knife Edges and Hammer/Shredder Tips is a 700BHN weld on or bolt on; Specifically designated for the Sugar and Re-cycling industries.

Armorite™ Conveyor Wear Knife Edge & Shredder Tips

Specifically Designated For Sugar and Recycling Industries

Armorite™ Knife Edges and Hammer/Shredder Tips is a 700BHN weld on or bolt on; Specifically designated for the Sugar and Re-cycling industries.

ARMORITE® CONVEYOR WEAR KNIFE EDGE & SHREDDER TIPS

Design Features
  • White Iron: Modified AS2027 15/3 Cr Mo
  • Vacuumed brazed and liquid nitrogen cooled to achieve a high strength joint
  • Mild steel backing offers strength, machinability, and impact resistance
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
  • Ease if fitment, very versatile
  • Lower operating costs
  • Longer Service when compared to conventional materials
  • Increased production
  • Improved product efficiency
  • Increased equipment availability

PROVIDE MAXIMUM IMPACT AND ABRASION PROTECTION

ASGCO Armorite® is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite® provides maximum protection in high wear areas, with the mild steel backing bonded to the white iron enabling it to withstand impact. Armorite® is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

PRODUCT FEATURES
  • White Iron: Modified AS2027 15/3 Cr Mo
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed
  • Ease if fitment, very versatile

PRODUCT SPECIFICATIONS

Applications – designed for the sugar and re-cycling industries

Custom sizes available at customer request

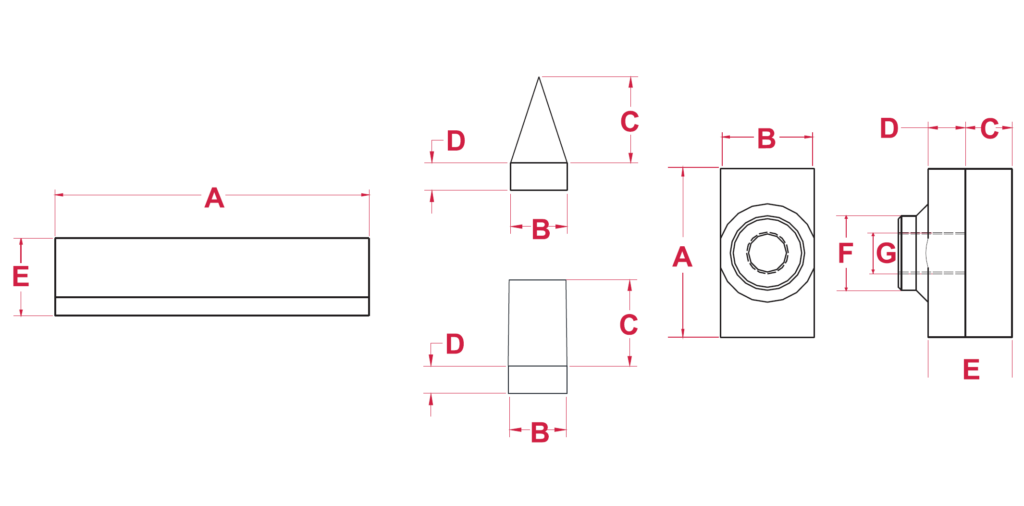

Part Numbers

Armorite® Knife Edge

Custom sizes available all customers request all dimensions +/- 1/16
All dimensions in inches.
Part Number Description A B C D E Weight lbs
ASG-AMR-KEB-8X1-A Knife Edges - Arrowhead - TYPE 1 8 0.9375 1.5 0.5 2 3.0
ASG-AMR-KEB-8X1-B Knife Edges - Blunt - TYPE 2 8 0.9375 1.5 0.5 2 4.2

Part Numbers

Armorite® Shredder Tips

Custom sizes available all customers request all dimensions +/- 1/16
All dimensions in inches.
Part Number Description A B C D E F G Weight lbs
ASG-AMR-ST-3X2X2 Shredder Tip - Threaded - TYPE 3 3.5 1.9375 1 0.75 1.75 1.5625 7/8-14 UNF 3.5
