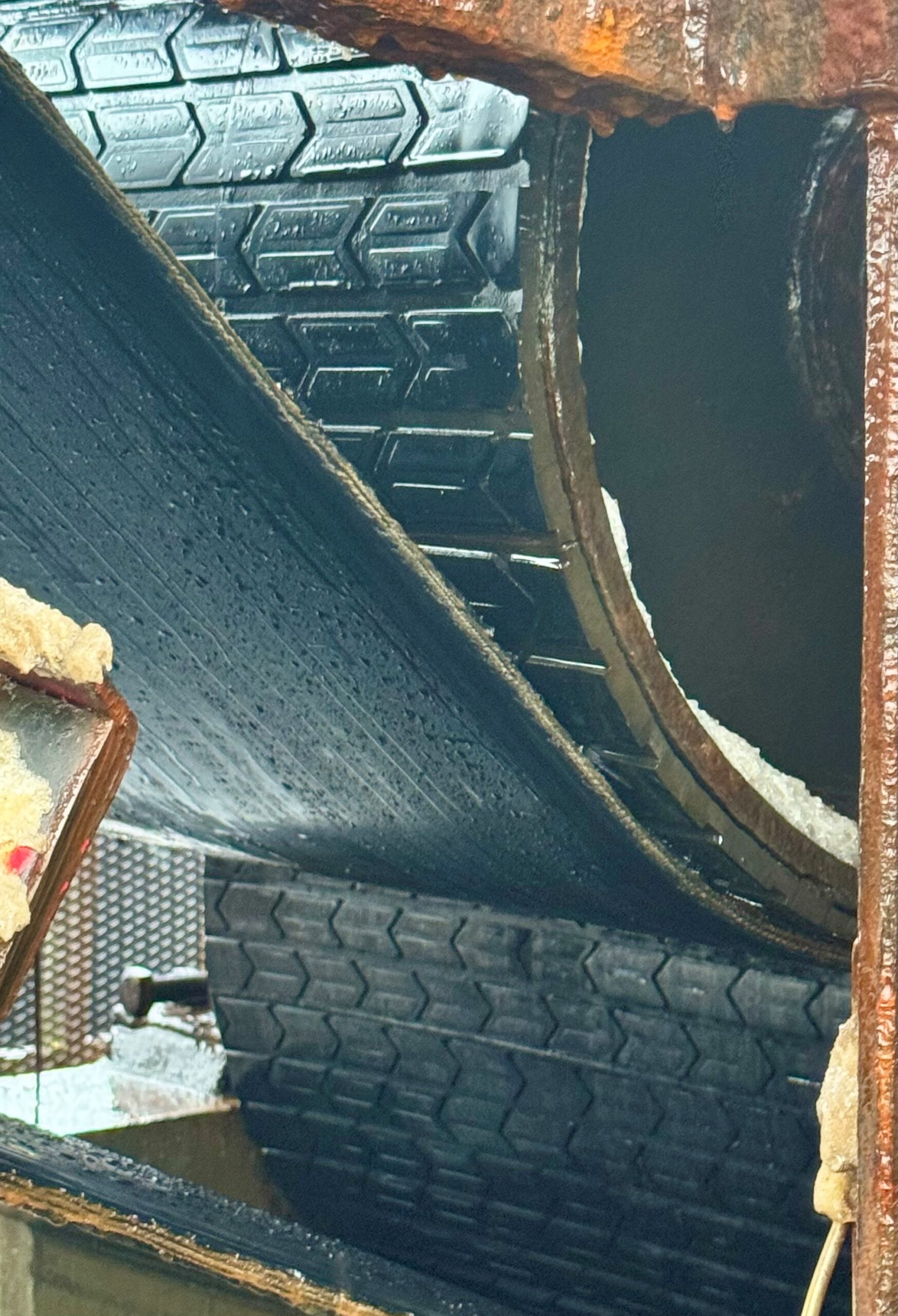

Corrects Belt Slippage And Premature Wear
Design Features
- MSHA approved for mine use – meets all requirements for flame resistant solid products taken into mines. Acceptance Marking No. MSHA IC -174/2
- Increase Productivity – by delivering increased traction between the conveyor belt and pulley, and increasing pulley life and reducing buildup.
- Improved Conveyor Belt Tracking – due to the Arrowhead patterns self-cleaning ability, which reduces material carry-back build up and thereby eliminates the major source of misalignment.
- Superior Wear – ability in abrasive or highly wet or dry applications as seen in below ground and above ground mining.
- Bonding Strength – that is superior to others, due to 3mm of our neoprene compound vulcanized into bottom-side of the lagging.
- Easy Installation – can be done in place, on plant site, at your local distributor or at the pulley manufacturer. Each roll is ½” or ¾” thick x 10” wide by 21.3’ long. 300’ (90m) long rolls will be available in January of 2006.
- Available – in Drive and Non-Drive Rubber Pulley Lagging and Natural and MSHA Grade
ELIMINATES SPILLAGE AND EXCESS WEAR
Natural & MSHA Grade – pulley lagging. Designed – specifically for higher drive friction factors and increased service life in contaminated conditions. Self cleaning – of the pulley surface occurs due to spaces between the pads and double grooving.
Gallery
PRODUCT SPECIFICATIONS
Thickness – 5/8” and 1” Width – 10” (400 mm) Length – 21.3’ Rolls – 300’ (90m)Part Numbers
Arrowhead® Rubber Pulley Lagging
| Part Number | Style | Durometer | Thickness | Width | Weight lbs |
|---|---|---|---|---|---|
| ASG-10X21.33-1/2-TRL | Drive | 60 | 1/2" | 10 | 42 |
| ASG-10X21.33-3/4-TRL | Drive | 60 | 3/4" | 10 | 60 |
| ASG-10X21.33-1/2-TRL-PLN | Smooth | 60 | 1/2" | 10 | 48 |
| ASG-10X21.33-1/2-TRL-SM | Smooth | 45 | 1/2" | 10 | 52 |
| ASG-10X278-1/2-TRL | Drive | 60 | 1/2" | 10 | 626 |
Part Numbers
Arrowhead® MSHA Rubber Lagging
| Part Number | Style | Durometer | Thickness | Width | Weight lbs |
|---|---|---|---|---|---|
| ASG-10X21.33-1/2-MSHA-TRL | Arrowhead | 60 | 1/2" | 10 | 42 |
| ASG-10X21.33-3/4-MSHA-TRL | Arrowhead | 60 | 3/4" | 10 | 56 |
| ASG-10X278-1/2-MSHA-TRL | Arrowhead | 65 | 1/2" | 10 | 626 |
| ASG-10X21.33-1/2-MSHA-PLN | Smooth | 60 | 1/2" | 10 | 51 |
