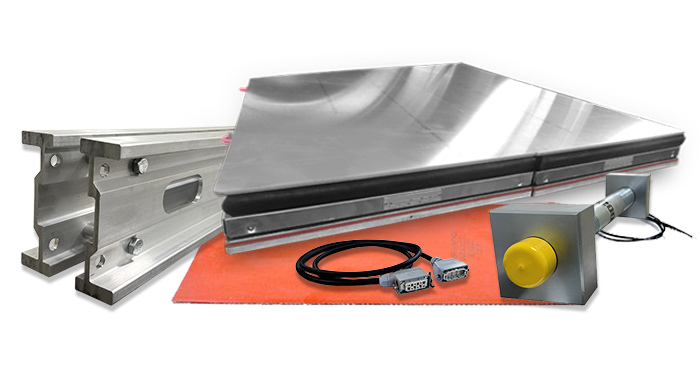

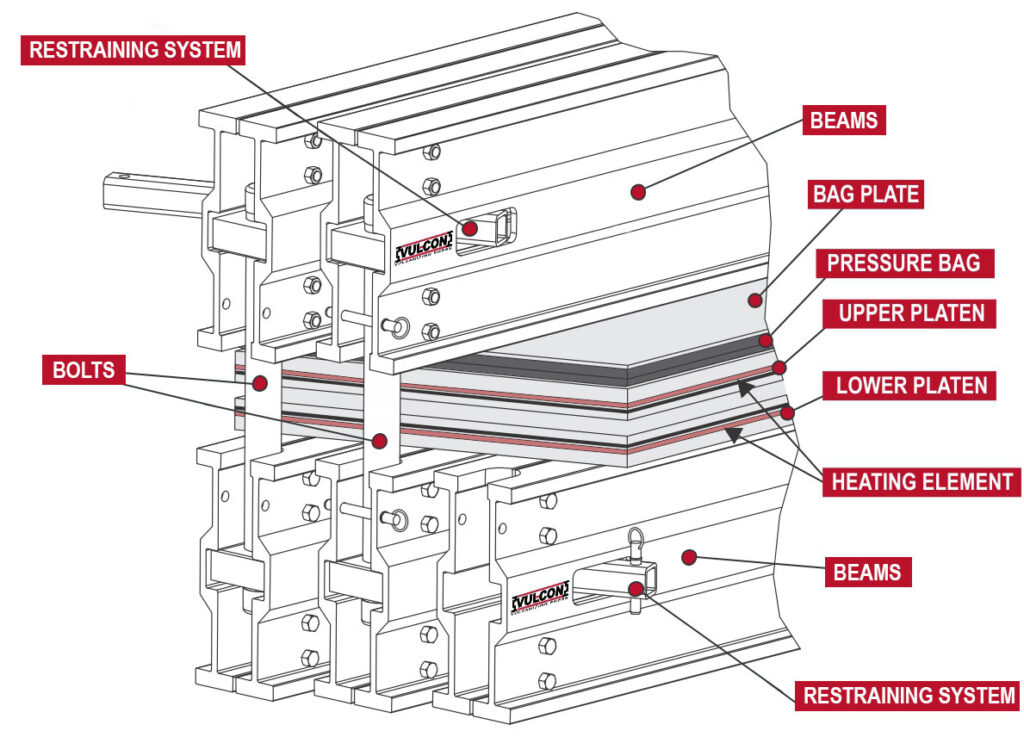

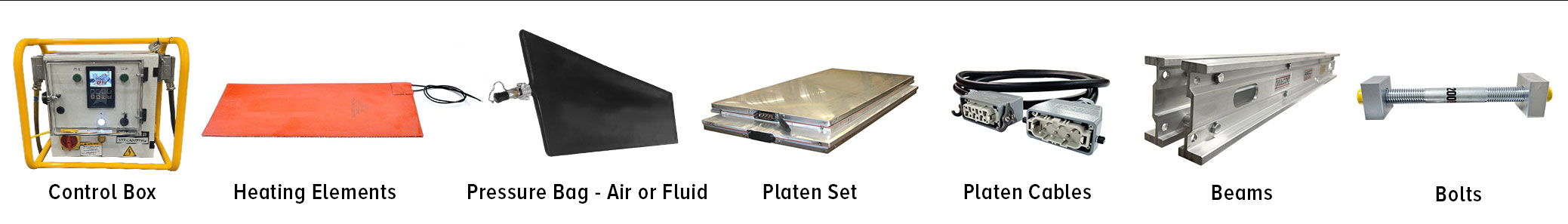

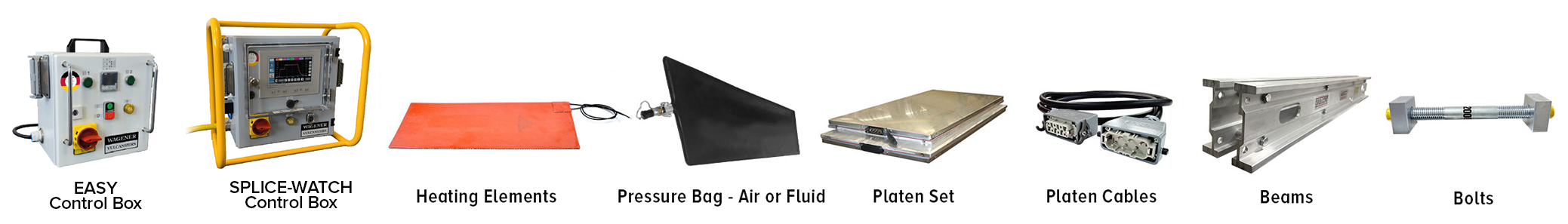

Vulcanizing Press Components
Design Features
- Control Box – The VUL-CON Switchgear Box is the most advanced control system in the world. Incorporating controls for 2 platens. Splice data can be stored and recalled through the built-in data logger.

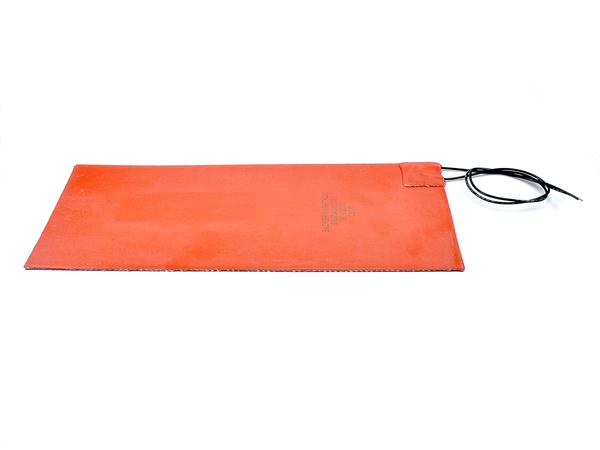

- Heating Element – Silicone Rubber heaters with wire-wound elements provide excellent physical strength capable of withstanding repeated flexing without compromising the life and performance of the heater.
- Robust Rubber Pressure Bag – with aramid reinforcement distributes uniform pressure and is available in 22° bias and can be custom made upon request.
- Platens – contours to belt irregularities, ensuring uniform distribution of pressure due to surface pressure system. Recessed power connections are sealed for moisture resistance. Maximum Temperature 350°F (180°C). Platens are available, either in the rhombic or rectangular design.
- Platen Cables – Connects to the temperature controller and
vulcanizing platens.
Part Numbers

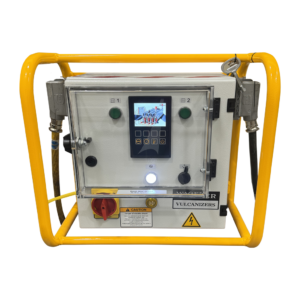

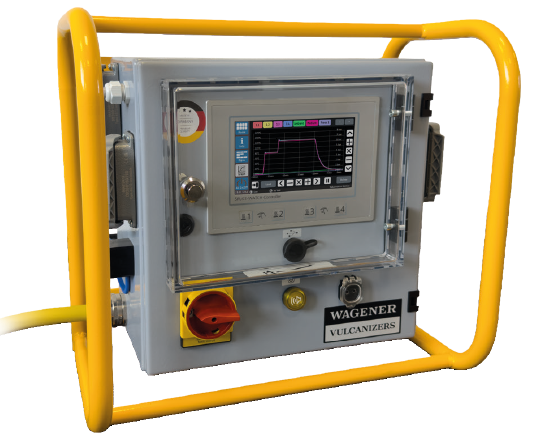

Control Box
ASGCO® recommends having a spare control box on hand to mitigate any potential downtime.
Part Number | Weight |
---|---|
M-ASG-VC-CB-DL-480-3PH | - |
Part Numbers

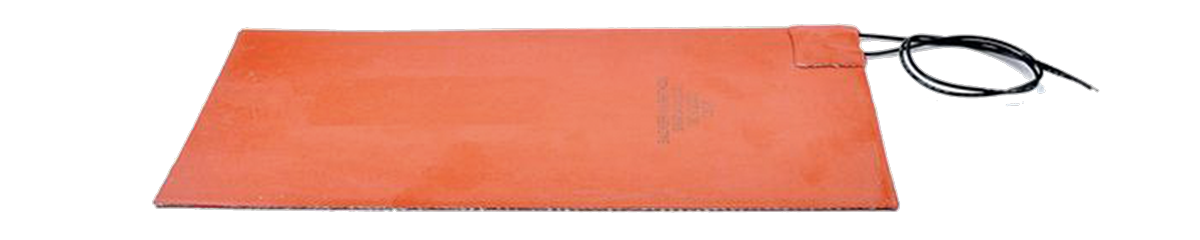

Heat Element
ASGCO® recommends having a spare element on hand to mitigate any potential downtime.
Please specify size – ** (asterisks)
Part Number | Weight |
---|---|
ASG-VC-HE-**x** | - |
Part Numbers

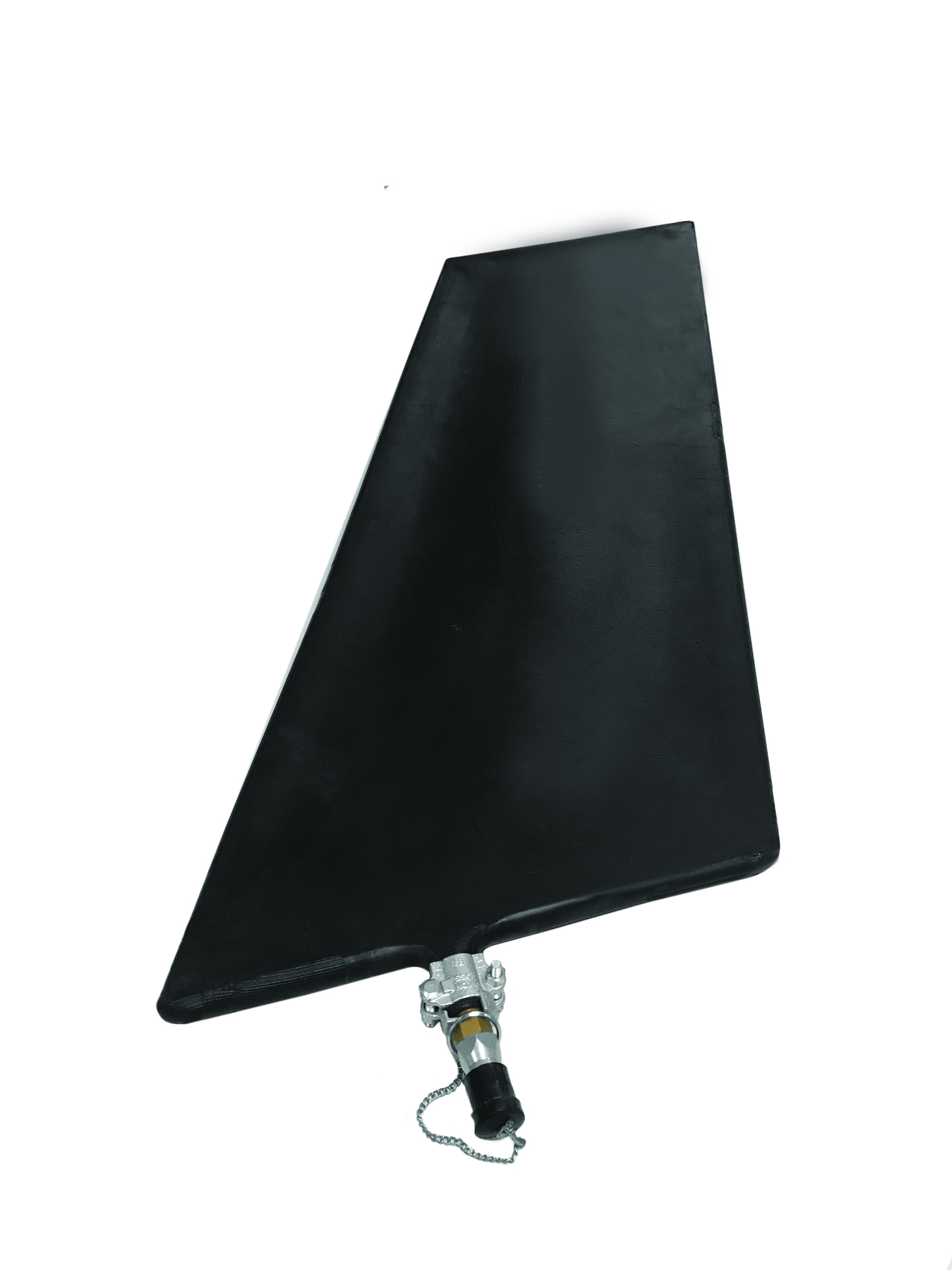

Pressure Bag – Air or Fluid
ASGCO® recommends having a spare airbag on hand to mitigate any potential downtime. Available in 22° bias and can be custom made upon request.
Please specify size – ** (asterisks)
Part Number | Weight |
---|---|
ASG-VC-AIRBAG-**x** | - |
ASG-VC-FBAG-**x** | - |
Part Numbers

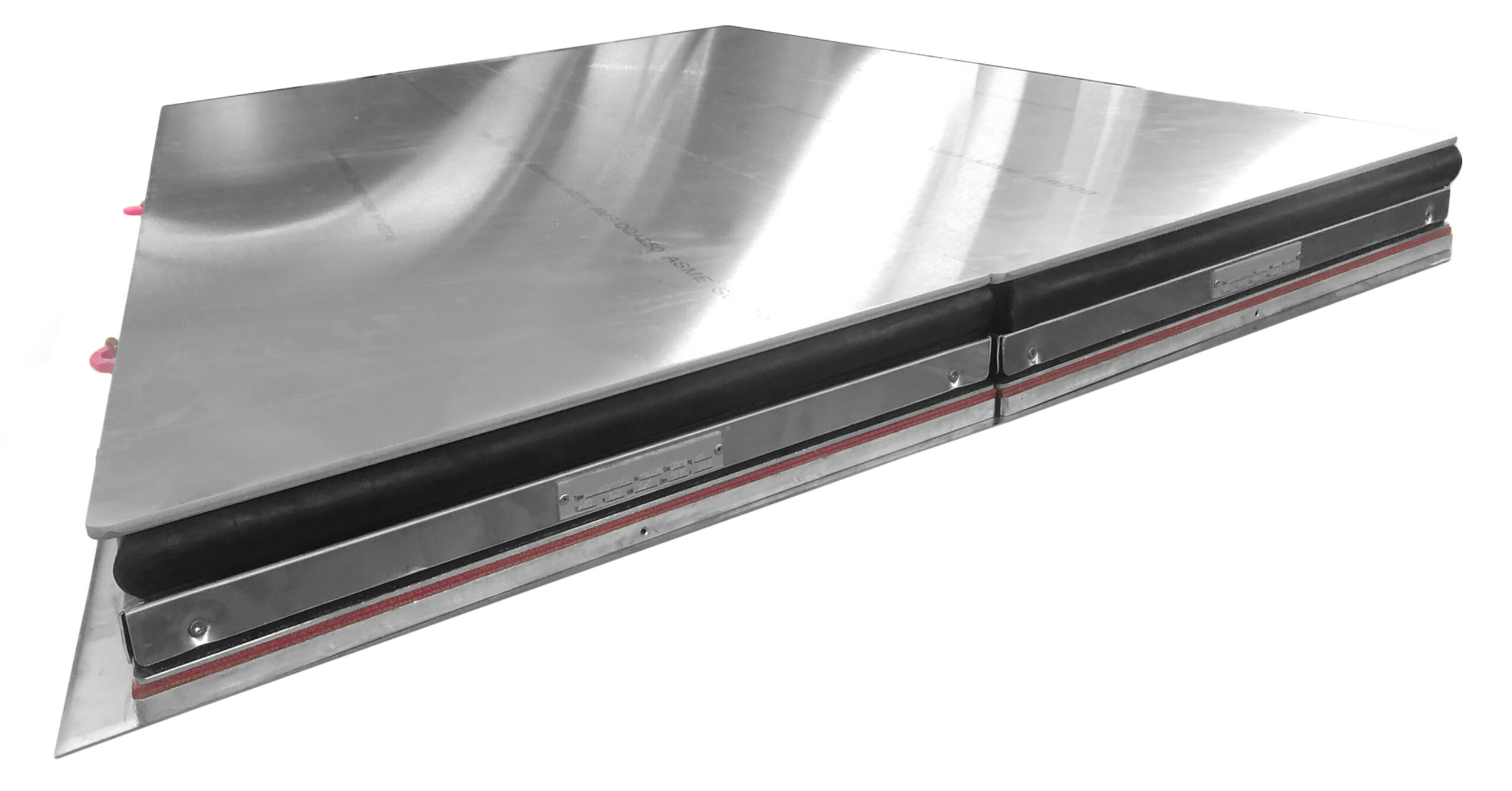

Platen Set
Maximum Temperature 350°F (180°C). Platens are available, either in the rhombic or rectangular design.
Please specify size – ** (asterisks)
Part Number | Weight |
---|---|
ASG-VC-PLT-**** | - |
Part Numbers

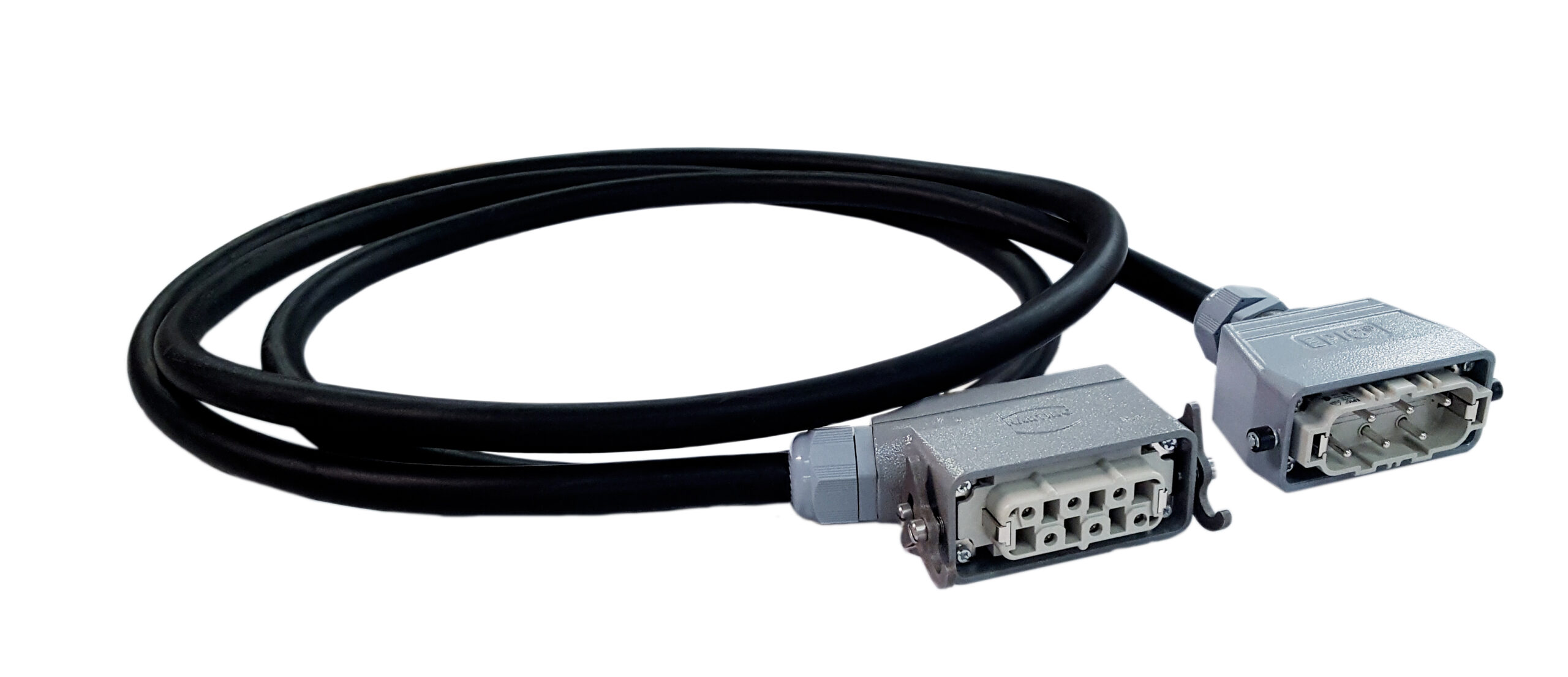

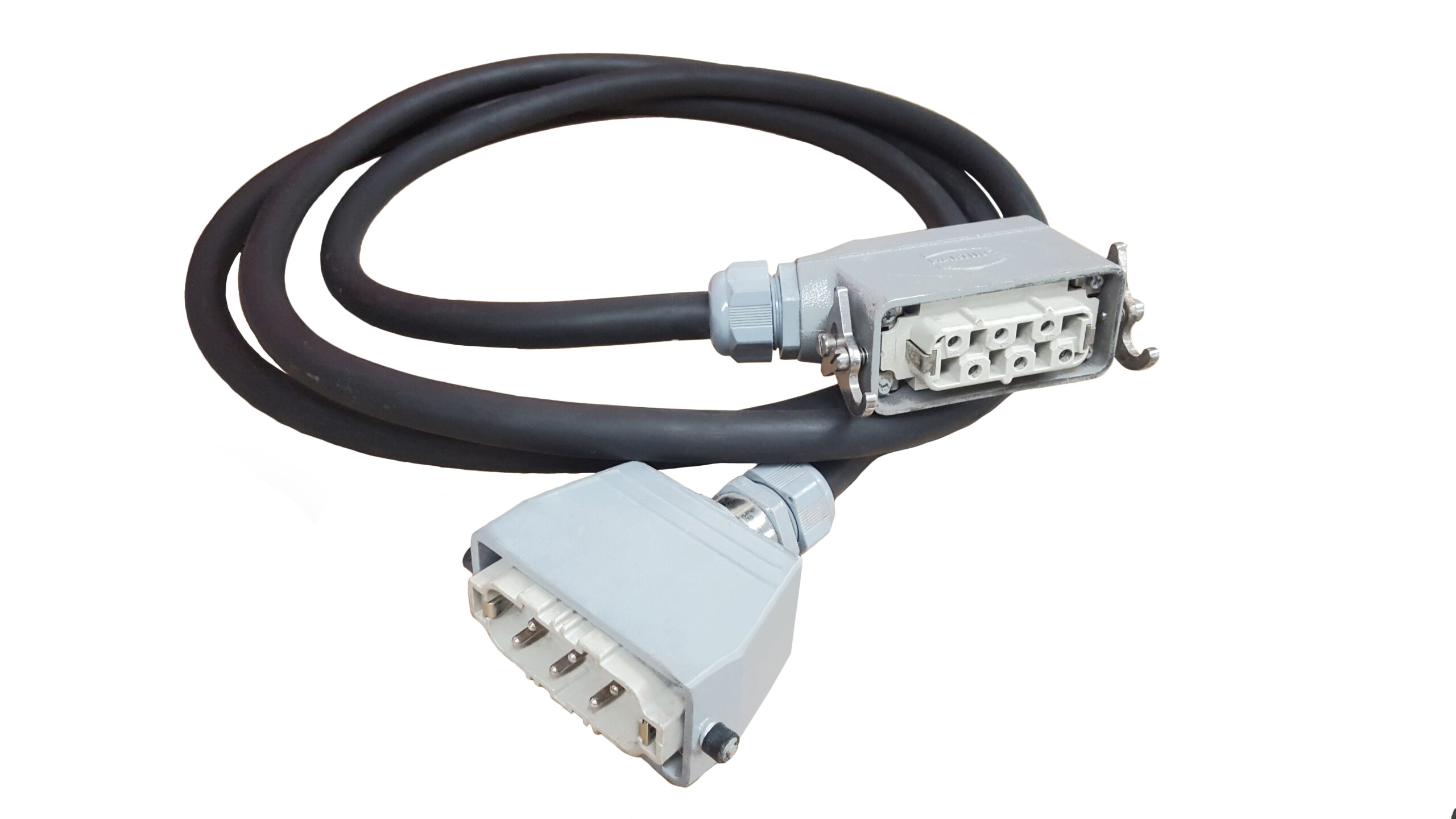

Platen Cable
Part Number | Weight |
---|---|
ASG-VC-PC-DL-480V-16A | - |
