FEATURES AND BENEFITS
- Versatile for use in heavy and medium applications.

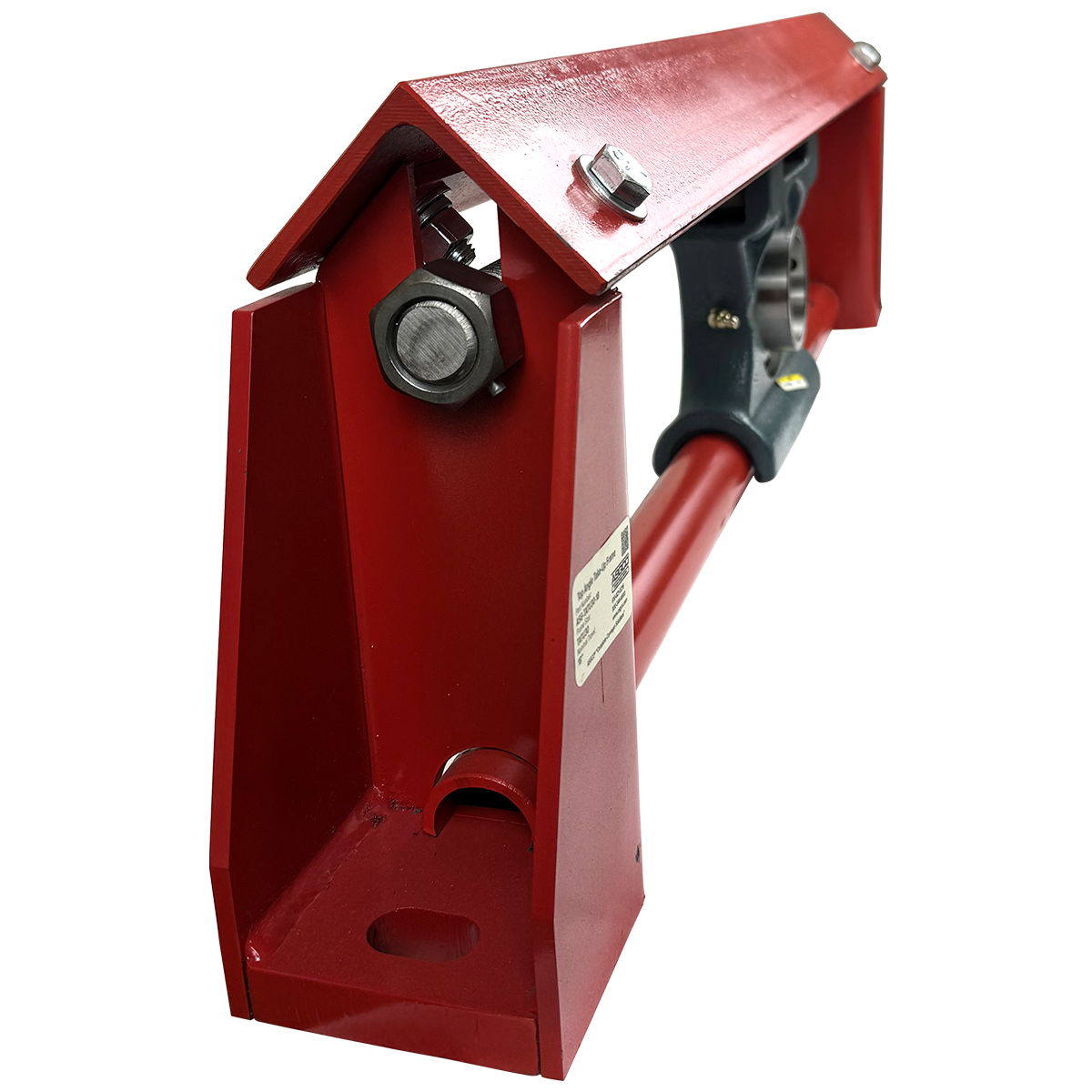

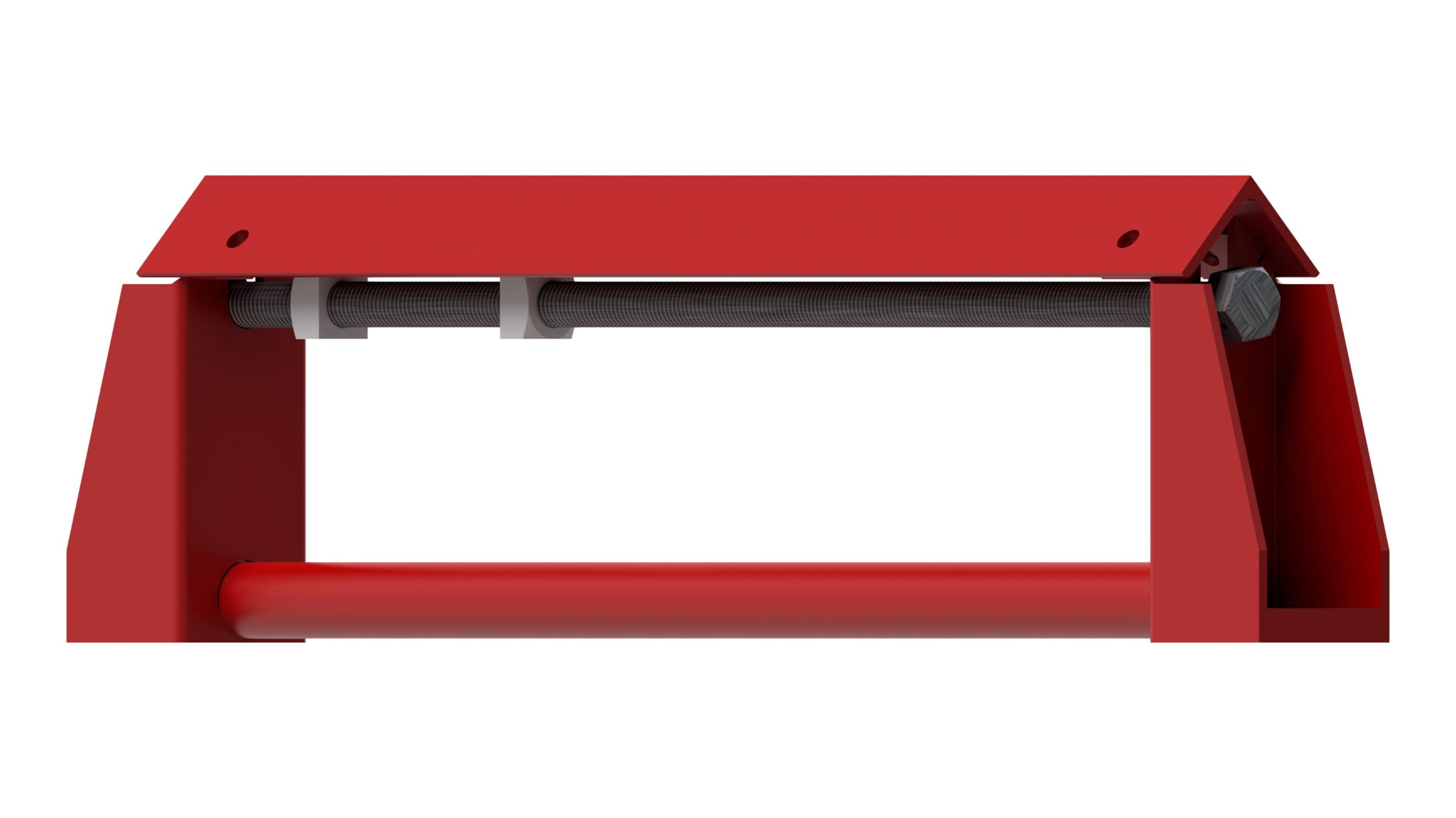

- The threaded rod/screw is shielded by an angle iron to prevent damage from material spillage.

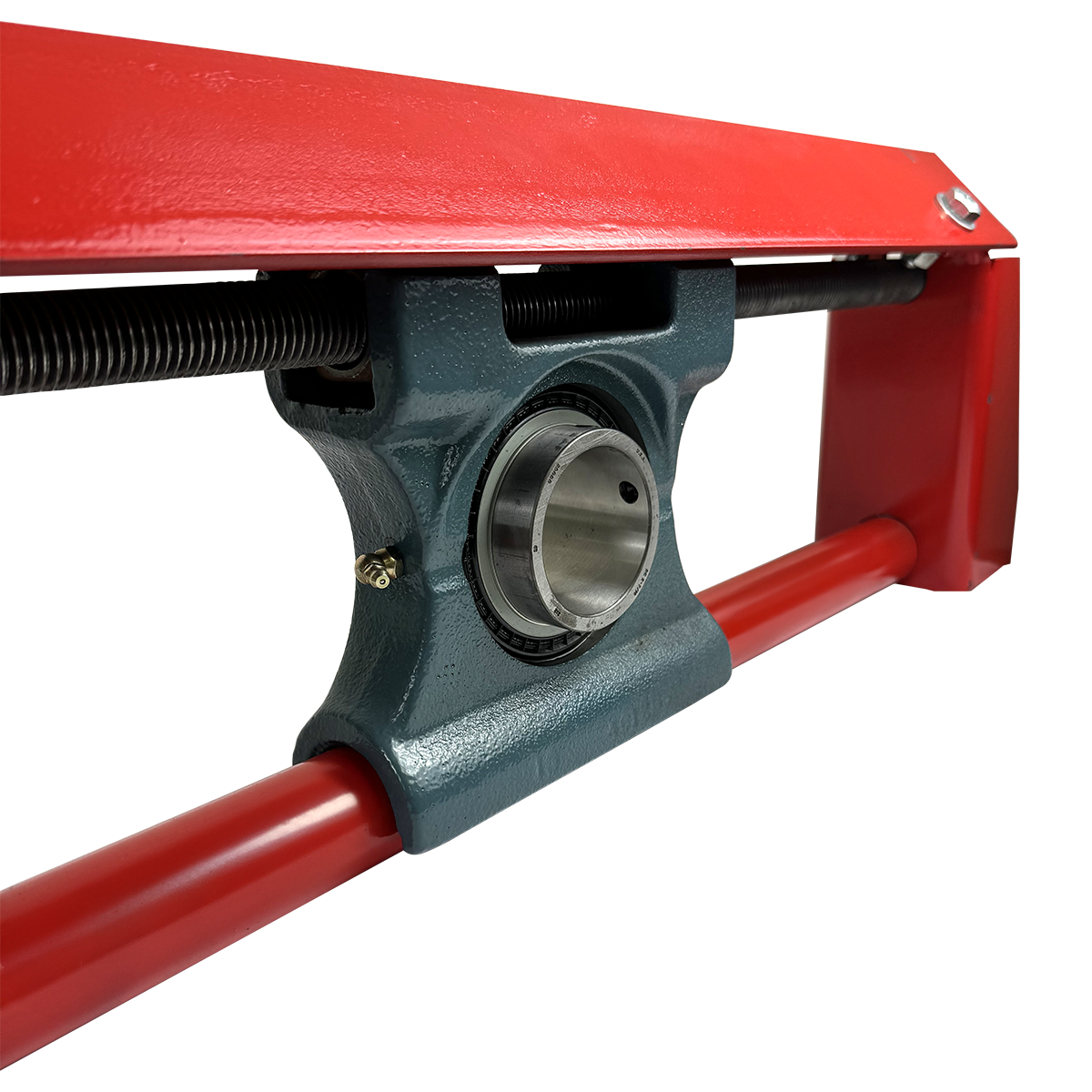

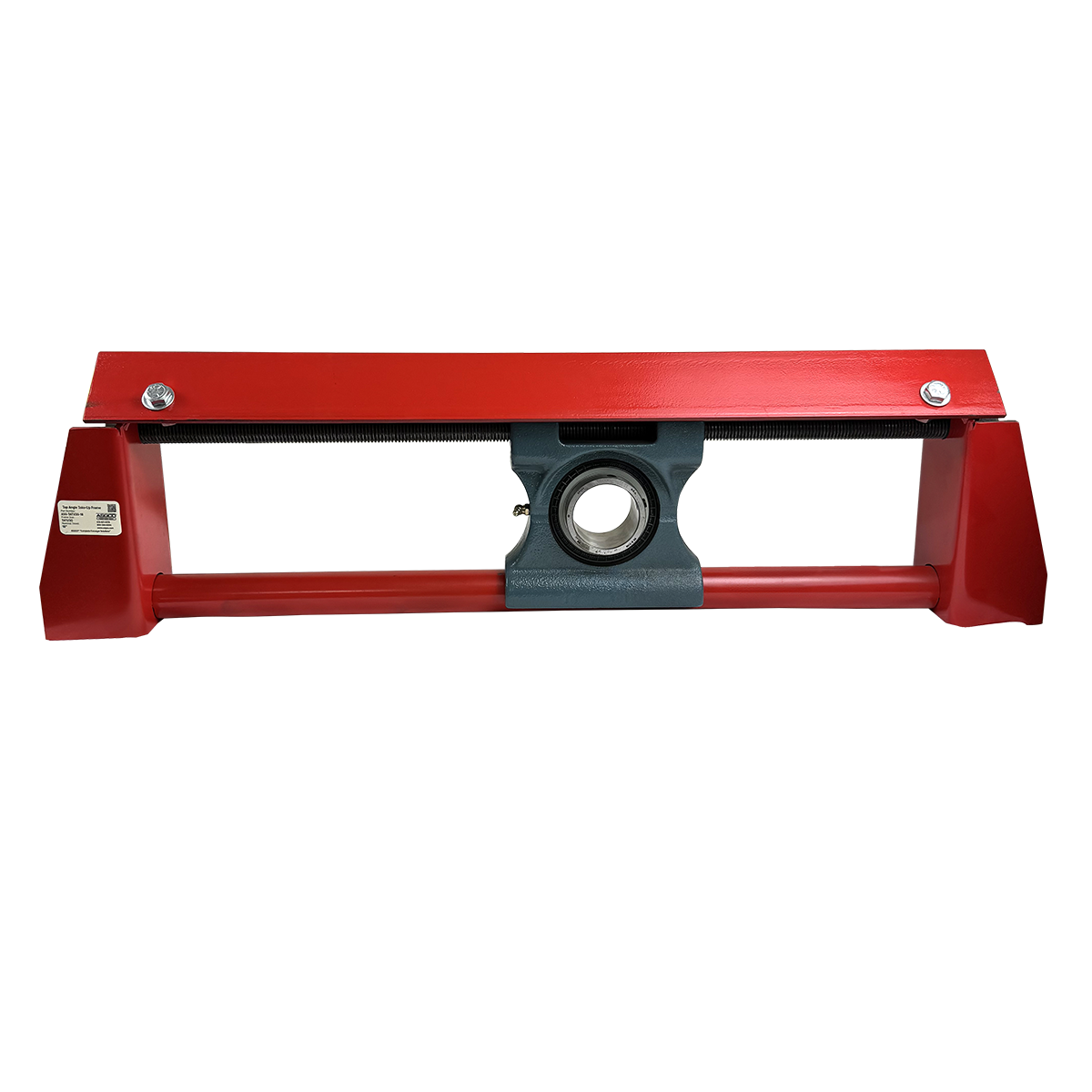

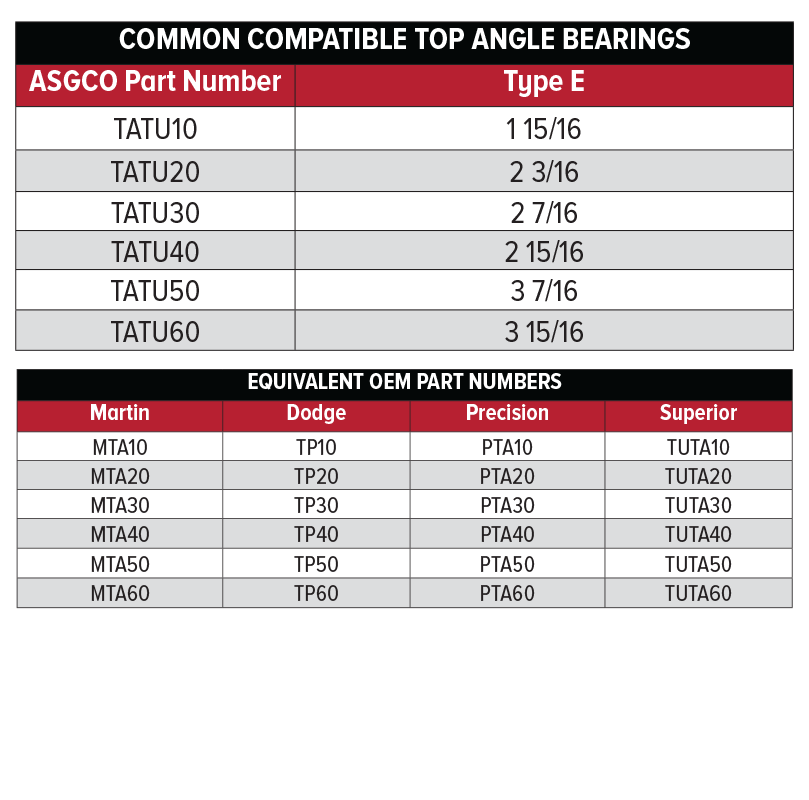

- Top Angle Roller or Ball Bearing
- Top Angle bearings can be supplied with the frame upon request.
- Top-mounted configuration

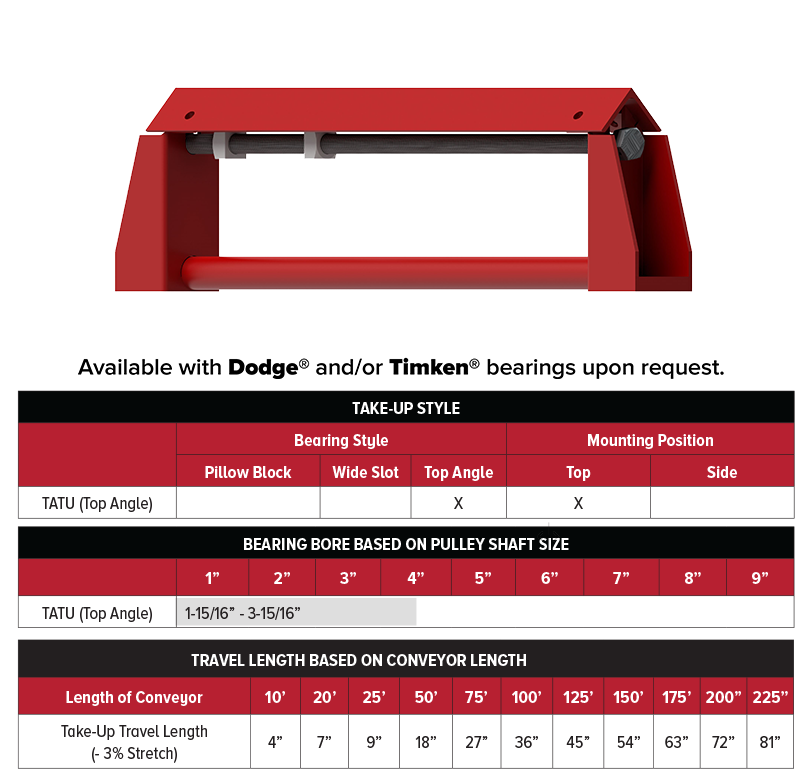

- Available with Dodge® and/or Timken® bearings upon request.
Part Numbers
| Part Number | Description | Travel Distance | Weight KG | Weight LB |
|---|---|---|---|---|
| ASG-TATU10-12 | ASGCO® Top Angle Take-Up Frame (TATU) | 12" | 14.51 | 32 |
| ASG-TATU10-18 | ASGCO® Top Angle Take-Up Frame (TATU) | 18" | 16.33 | 36 |
| ASG-TATU10-24 | ASGCO® Top Angle Take-Up Frame (TATU) | 24" | 18.14 | 40 |
| ASG-TATU20-12 | ASGCO® Top Angle Take-Up Frame (TATU) | 12" | 15.42 | 42 |
| ASG-TATU20-18 | ASGCO® Top Angle Take-Up Frame (TATU) | 18" | 17.69 | 39 |
| ASG-TATU20-24 | ASGCO® Top Angle Take-Up Frame (TATU) | 24" | 19.50 | 43 |
| ASG-TATU30-12 | ASGCO® Top Angle Take-Up Frame (TATU) | 12" | 22.68 | 50 |
| ASG-TATU30-18 | ASGCO® Top Angle Take-Up Frame (TATU) | 18" | 26.31 | 58 |
| ASG-TATU30-24 | ASGCO® Top Angle Take-Up Frame (TATU) | 24" | 29.94 | 66 |
| ASG-TATU30-30 | ASGCO® Top Angle Take-Up Frame (TATU) | 30" | 33.57 | 74 |
| ASG-TATU30-36 | ASGCO® Top Angle Take-Up Frame (TATU) | 36" | 37.19 | 82 |
| ASG-TATU30-48 | ASGCO® Top Angle Take-Up Frame (TATU) | 48" | 44.00 | 97 |
| ASG-TATU40-12 | ASGCO® Top Angle Take-Up Frame (TATU) | 12" | 25.40 | 56 |
| ASG-TATU40-18 | ASGCO® Top Angle Take-Up Frame (TATU) | 18" | 28.58 | 63 |
| ASG-TATU40-24 | ASGCO® Top Angle Take-Up Frame (TATU) | 24" | 31.75 | 70 |
| ASG-TATU40-30 | ASGCO® Top Angle Take-Up Frame (TATU) | 30" | 34.93 | 77 |
| ASG-TATU40-36 | ASGCO® Top Angle Take-Up Frame (TATU) | 36" | 38.10 | 84 |
| ASG-TATU40-48 | ASGCO® Top Angle Take-Up Frame (TATU) | 48" | 44.45 | 98 |
| ASG-TATU50-12 | ASGCO® Top Angle Take-Up Frame (TATU) | 12" | 30.84 | 68 |
| ASG-TATU50-18 | ASGCO® Top Angle Take-Up Frame (TATU) | 18" | 34.47 | 76 |
| ASG-TATU50-24 | ASGCO® Top Angle Take-Up Frame (TATU) | 24" | 38.10 | 84 |
| ASG-TATU50-30 | ASGCO® Top Angle Take-Up Frame (TATU) | 30" | 41.73 | 92 |
| ASG-TATU50-36 | ASGCO® Top Angle Take-Up Frame (TATU) | 36" | 45.36 | 100 |
| ASG-TATU50-48 | ASGCO® Top Angle Take-Up Frame (TATU) | 48" | 52.62 | 116 |
| ASG-TATU60-12 | ASGCO® Top Angle Take-Up Frame (TATU) | 12" | 43.54 | 96 |
| ASG-TATU60-18 | ASGCO® Top Angle Take-Up Frame (TATU) | 18" | 48.08 | 106 |
| ASG-TATU60-24 | ASGCO® Top Angle Take-Up Frame (TATU) | 24" | 52.62 | 116 |
| ASG-TATU60-30 | ASGCO® Top Angle Take-Up Frame (TATU) | 30" | 57.15 | 126 |
| ASG-TATU60-36 | ASGCO® Top Angle Take-Up Frame (TATU) | 36" | 61.69 | 136 |
| ASG-TATU60-48 | ASGCO® Top Angle Take-Up Frame (TATU) | 48" | 70.76 | 156 |
