VUL-CON® PowerPack™

Reliable All-in-One Power. Built for Easy Transport. Ready Anywhere.

The VUL-CON® PowerPack™ is a fully integrated, field-ready solution designed to supply power, compressed air, and coolant for vulcanizing operations. Built for mobility and reliability, it eliminates the need for multiple standalone units—streamlining setup and improving efficiency on-site.

VUL-CON® PowerPack™

Reliable All-in-One Power. Built for Easy Transport. Ready Anywhere.

The VUL-CON® PowerPack™ is a fully integrated, field-ready solution designed to supply power, compressed air, and coolant for vulcanizing operations. Built for mobility and reliability, it eliminates the need for multiple standalone units—streamlining setup and improving efficiency on-site.

VUL-CON® PowerPack™

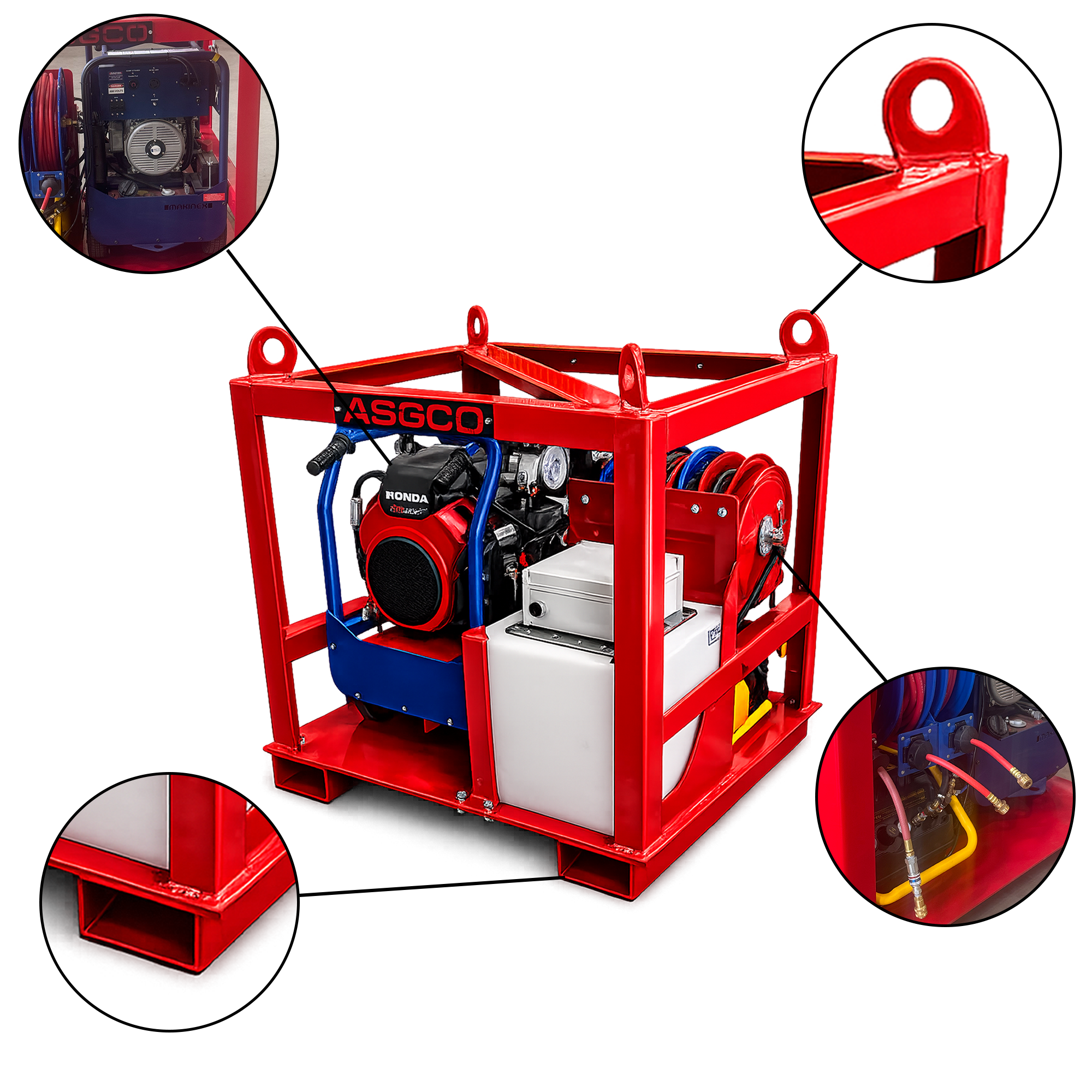

FEATURES AND BENEFITS
  • All-in-one power, air, and cooling solution

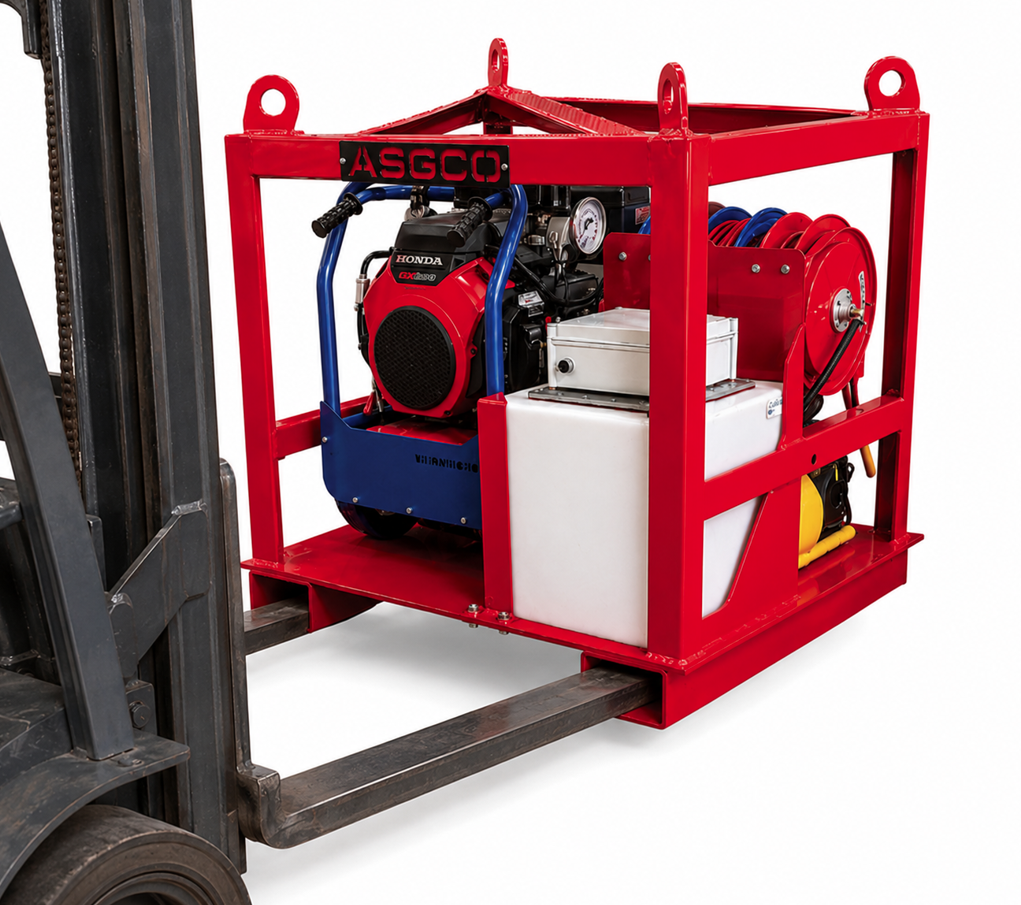

  • Easy transport with forklift pockets

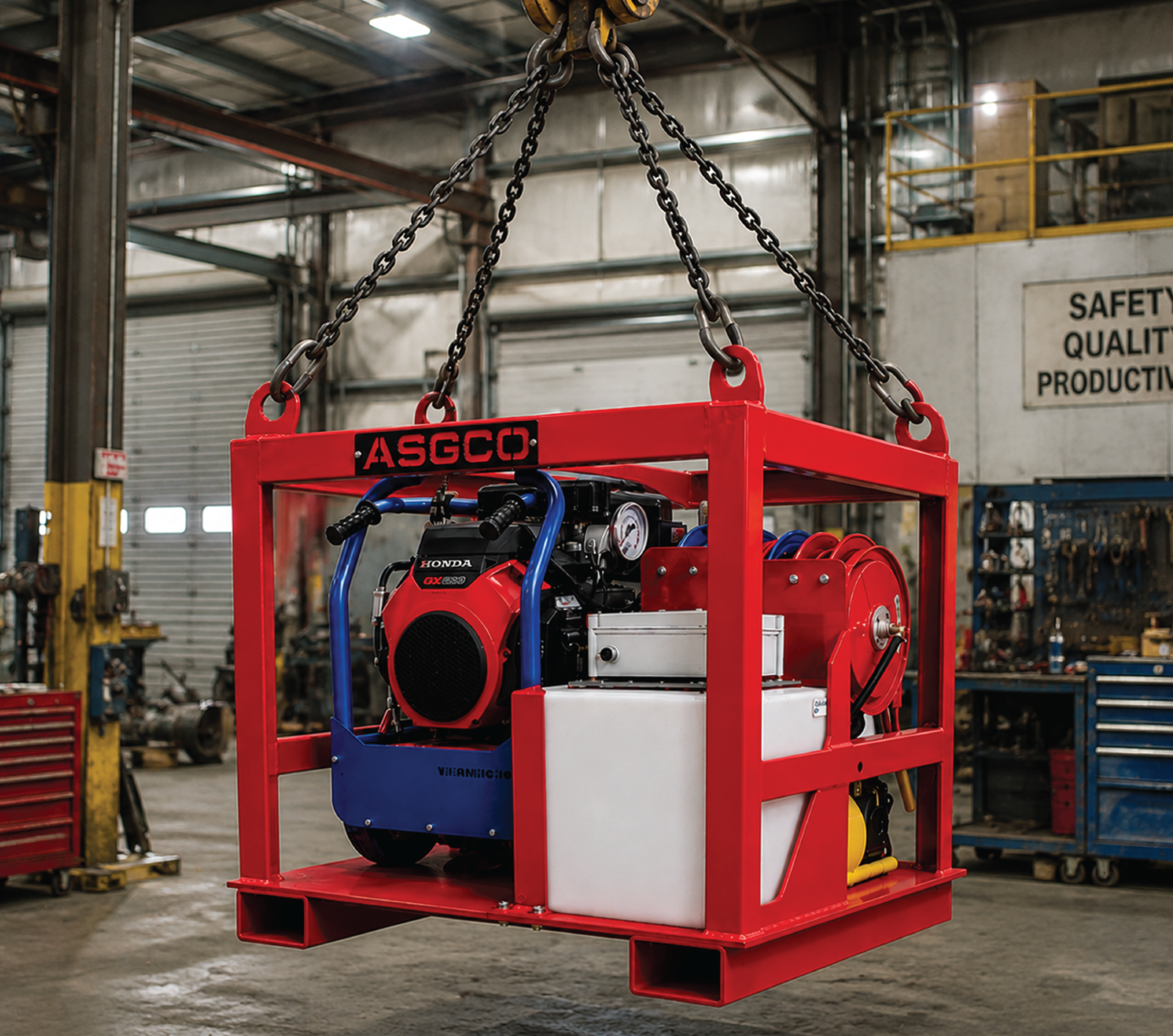

  • Integrated lifting points for quick setup
  • Reliable performance in demanding environments
PowerPack™ Generator System
  • 480V, 3-Phase, 16kW Power Output
  • Maximum 16.9 Amps Capacity
  • 110V Single-Phase Power (Up to 30 Amps)
  • Electric Start for Reliable Operation
  • 9.0-Gallon Gasoline Fuel Tank
  • Honda GX690 Engine for Proven Performance
PowerPack™ Compressor System
  • Up to 200 PSI Maximum Pressure
  • 3.0 CFM at 90 PSI Output
  • 2.5-Gallon Air Tank Capacity
  • 50-Foot Retractable Hose Reel
PowerPack™ Water/Coolant System
  • 25 Gallon Collant Reservoir (Can be Used for Water or Water/Glycol Mix)
  • Integrated Cooling Pump System
  • 1.6 GPM Flow Rate
  • Maximum Feet of Head 230ft
  • Dual 50’ Retractable Hose Reels For Coolant Supply and Return to Tank.
  • Regulated 20 PSI Air System Integrated to Blow Out System (Including Press) to Return All Fluid Back to the Reservoir.



Engineered for the Field. Built to Perform Anywhere.

Powered by a dependable Honda GX690 engine, this compact unit delivers consistent performance in demanding environments. With integrated forklift pockets and lifting points, the PowerPack™ is engineered for easy transport and quick deployment wherever the job takes you.

  • Voltage: 480V, 3-Phase
  • Power Output: 16kW
  • Max Current: 16.9 Amps
  • Auxiliary Power: 110V Single-Phase (Up to 30 Amps)
  • Start Type: Electric Start
  • Generator Fuel Type: Gasoline
  • Generator Fuel Capacity: 9.0 Gallons
  • Generator Engine: Honda GX690
  • Compressor Max Pressure: 200 PSI
  • Air Flow: 3.0 CFM @ 90 PSI



  • Compressor Tank Capacity: 2.5 Gallons
  • Hose Reel: 50 ft Retractable
  • Reservoir Capacity: 25 Gallons
  • Fluid Type: Water or Water/Glycol Mix
  • Pump Type: Integrated Cooling Pump
  • Flow Rate: 1.6 GPM
  • Max Head: 230 ft
  • Hose Reels: Dual 50 ft (Supply & Return)
  • Air System Pressure: 20 PSI (For Blow-Out & Fluid Return)
