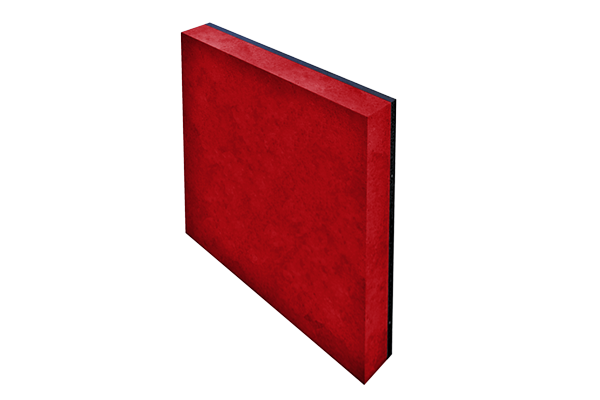

ARMORITE® SMOOTH CONVEYOR WEAR PLATES

Design Features
  • White Iron: Modified AS2027 15/3 Cr Mo
  • Vacuumed brazed and liquid nitrogen cooled to achieve a high strength joint
  • Mild steel backing offers strength, machinability, and impact resistance
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed.
  • Ease if fitment, very versatile
  • Lower operating costs
  • Longer Service when compared to conventional materials
  • Increased production
  • Improved product efficiency
  • Increased equipment availability

PROVIDE MAXIMUM IMPACT AND ABRASION PROTECTION

ASGCO Armorite® is a combination of high chromium and molybdenum white iron metallurgically bonded to a mild steel plate. Armorite® provides maximum protection in high wear areas, with the mild steel backing cushioning the white iron enabling it to withstand impact. Armorite® is easily weldable to areas of the conveyor system with minimal preparation providing unsurpassed resistance to abrasive bulk material wear.

PRODUCT FEATURES
  • White Iron: Modified AS2027 15/3 Cr Mo
  • Can be welded in place, through-bolted, stud bolted, drilled, tapped, keyed
  • Ease if fitment, very versatile

PRODUCT SPECIFICATIONS

Applications – Chutes, Hoppers, Bins, impact Walls, Screen Plates

1” Armorite – Molded to a Mild Steel Back Plate

Custom size available at customers request

Part Numbers

Armorite® Wear Plate

Thickness White Iron 3/4″- Thickness Base Plate 1/4″

Part Number Description Length in. Width in. Thickness in Weight lbs
ASG-AMR-5X10X1 Wear Plate 10 5 1 17
ASG-AMR-6X12X1 Wear Plate 12 6 1 20
ASG-AMR-12X12X1 Wear Plate 12 12 1 37
