FEATURES AND BENEFITS

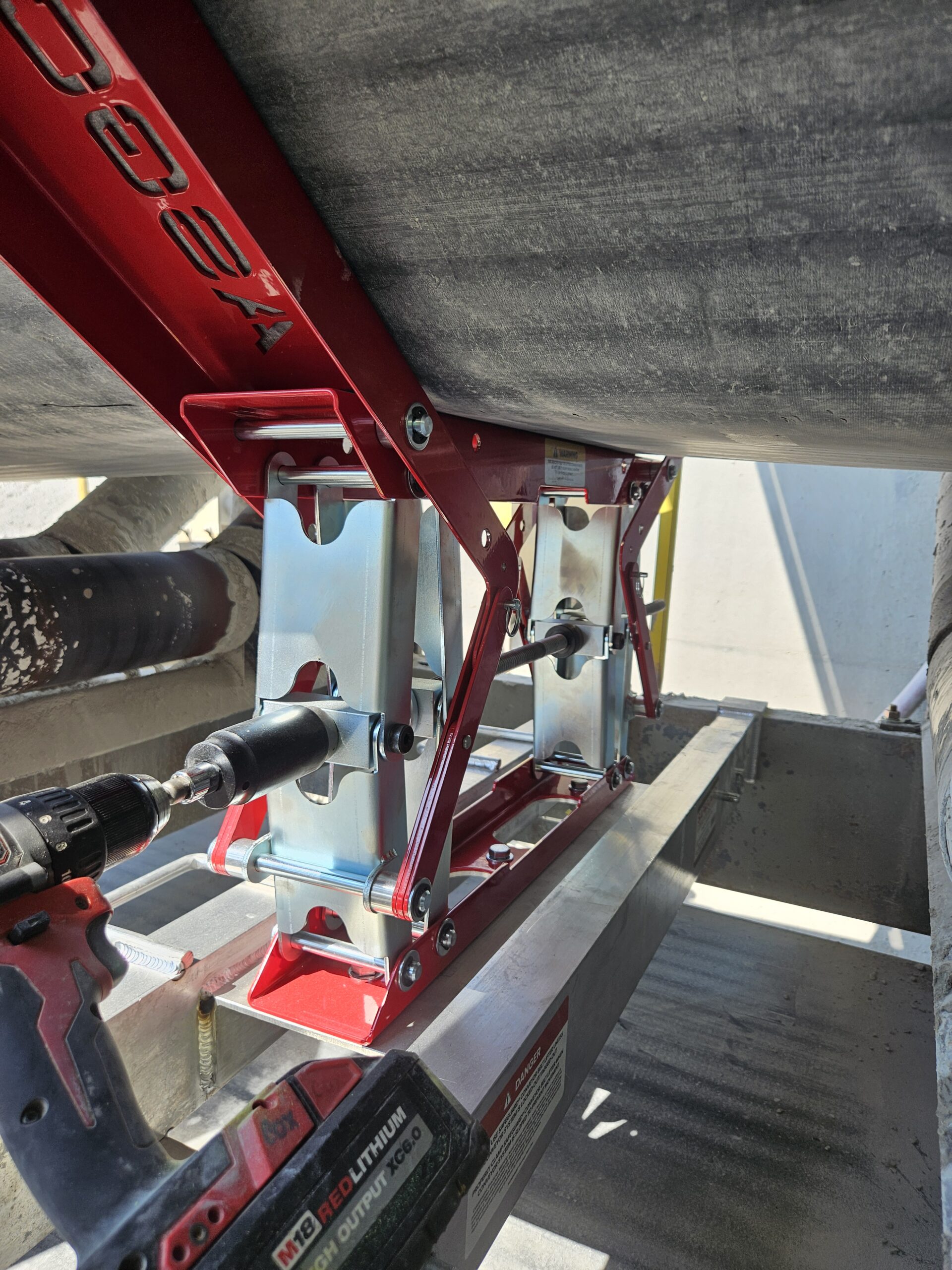

- Easy to use. The Safe-Guard® Conveyor Belt Lifter can be easily operated with a manual ratched or drill.
- Works on a wide range of conveyors. The Belt Lifter is for the belt widths 36”-60” (900-1500 mm). Belt can either be lifted flat or in troughed position.
- Safe. Features a extendable study dual-rail base and high lift capacities.
- Easy operation. Its compact and lightweight design ensures an easy to use operation.

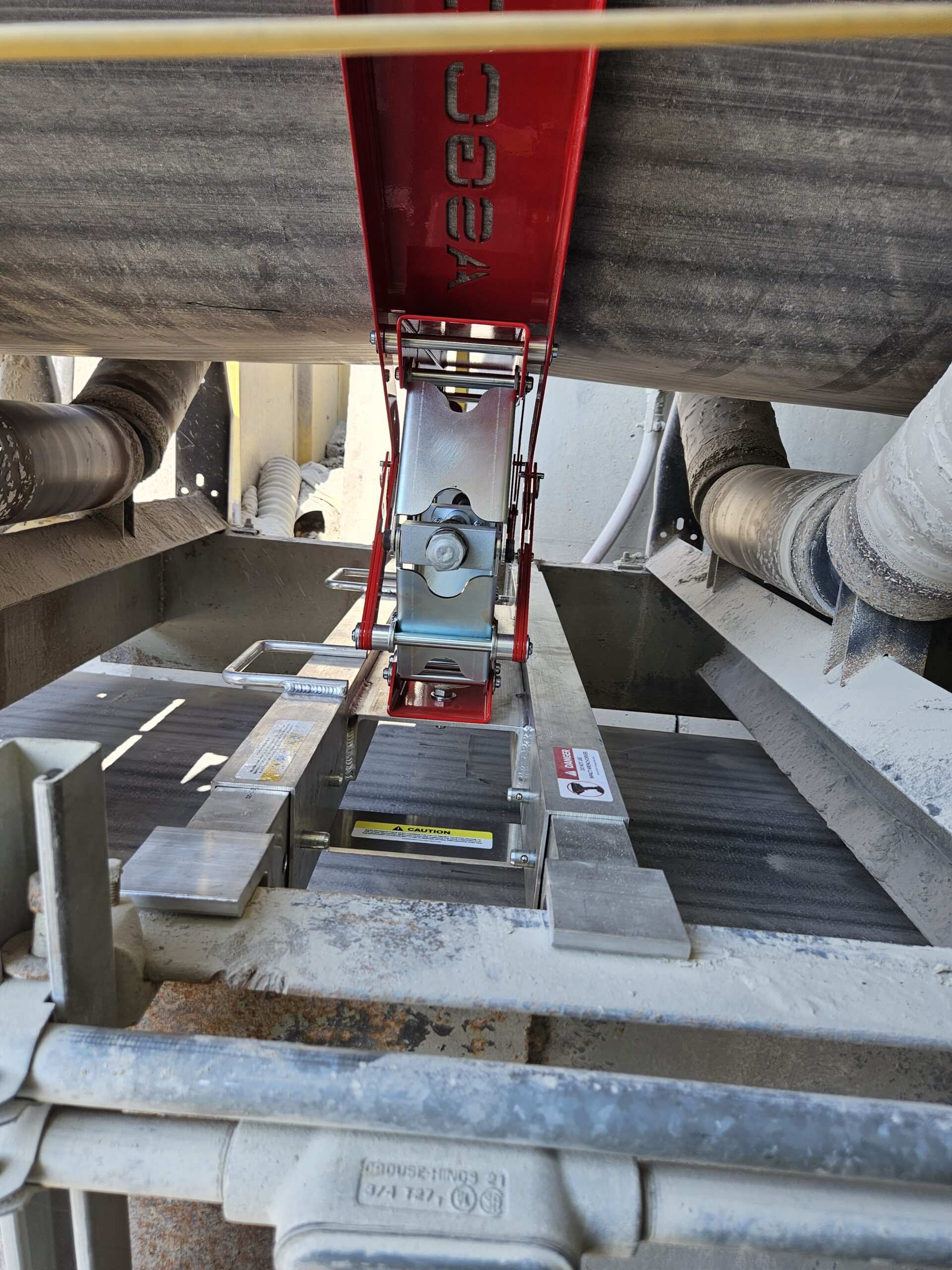

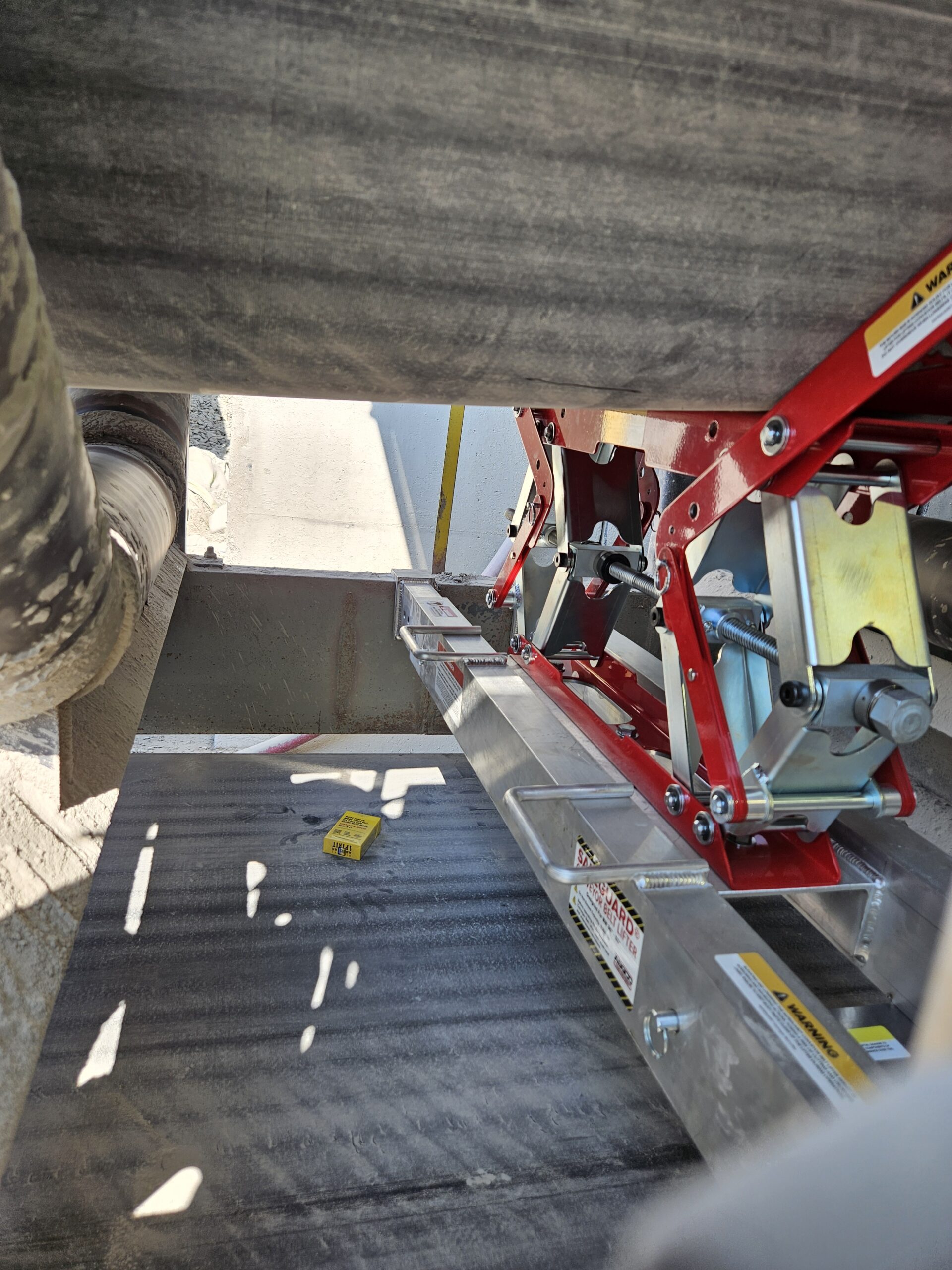

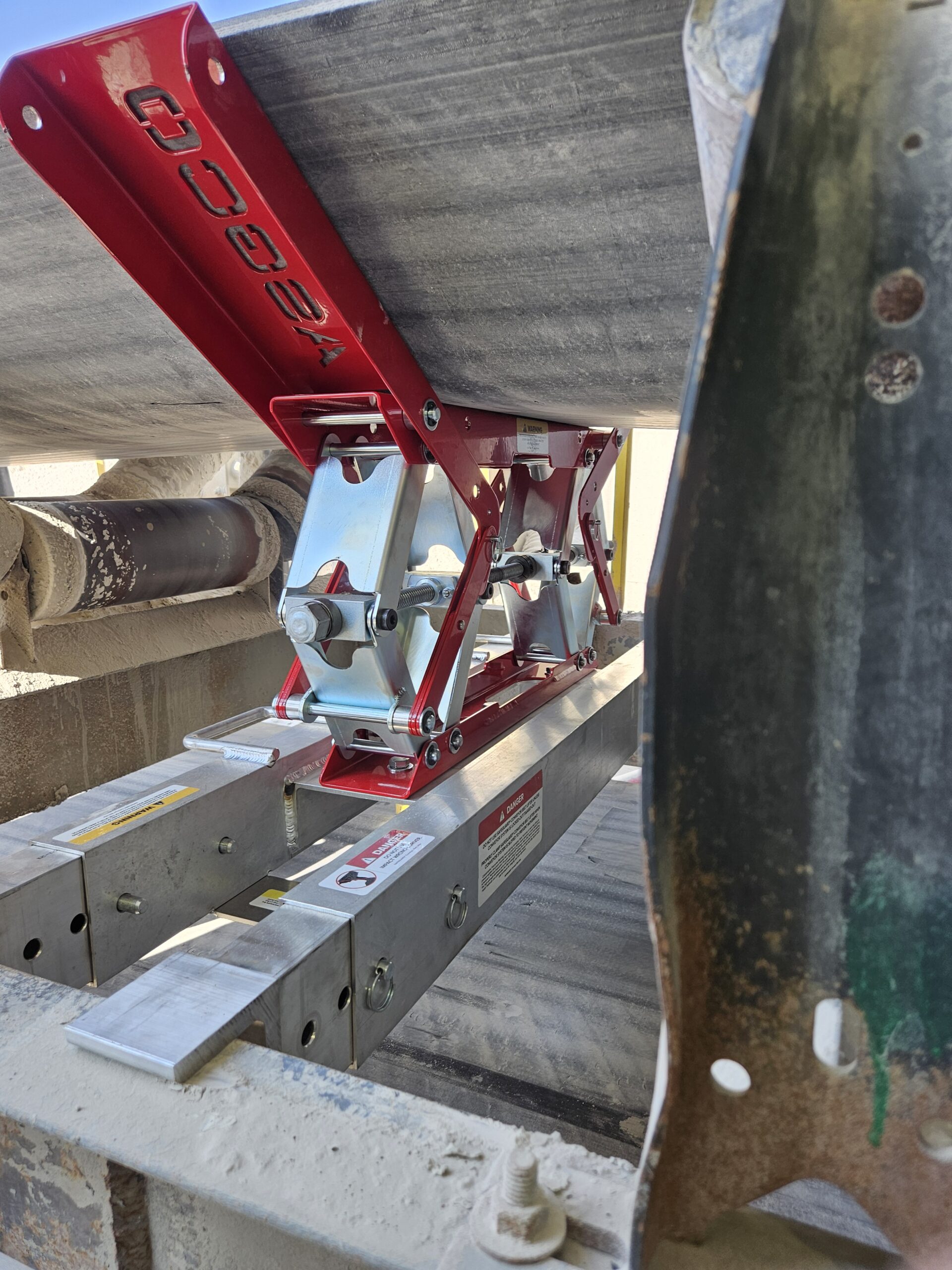

- Won’t damage the belt. Lift the belt from underneath. Does not clamp onto the belt’s edges or cover.
SPECS AND GUIDELINES
Product Specifications
- Belt Width Range – 36″ – 60″ (900 mm – 1500 mm) or 48″ – 72″ (1200 mm – 1800 mm)
- Conveyor Span – MIN: 1130 mm (44.5”) – MAX: 1892 mm (74.5”) or MIN: (1435) mm (56.50″) – MAX: (2197) mm (86.50″)
- Weight – 39.9 kg – 88.0 lbs. or 47.2 kg – 104.0 lbs

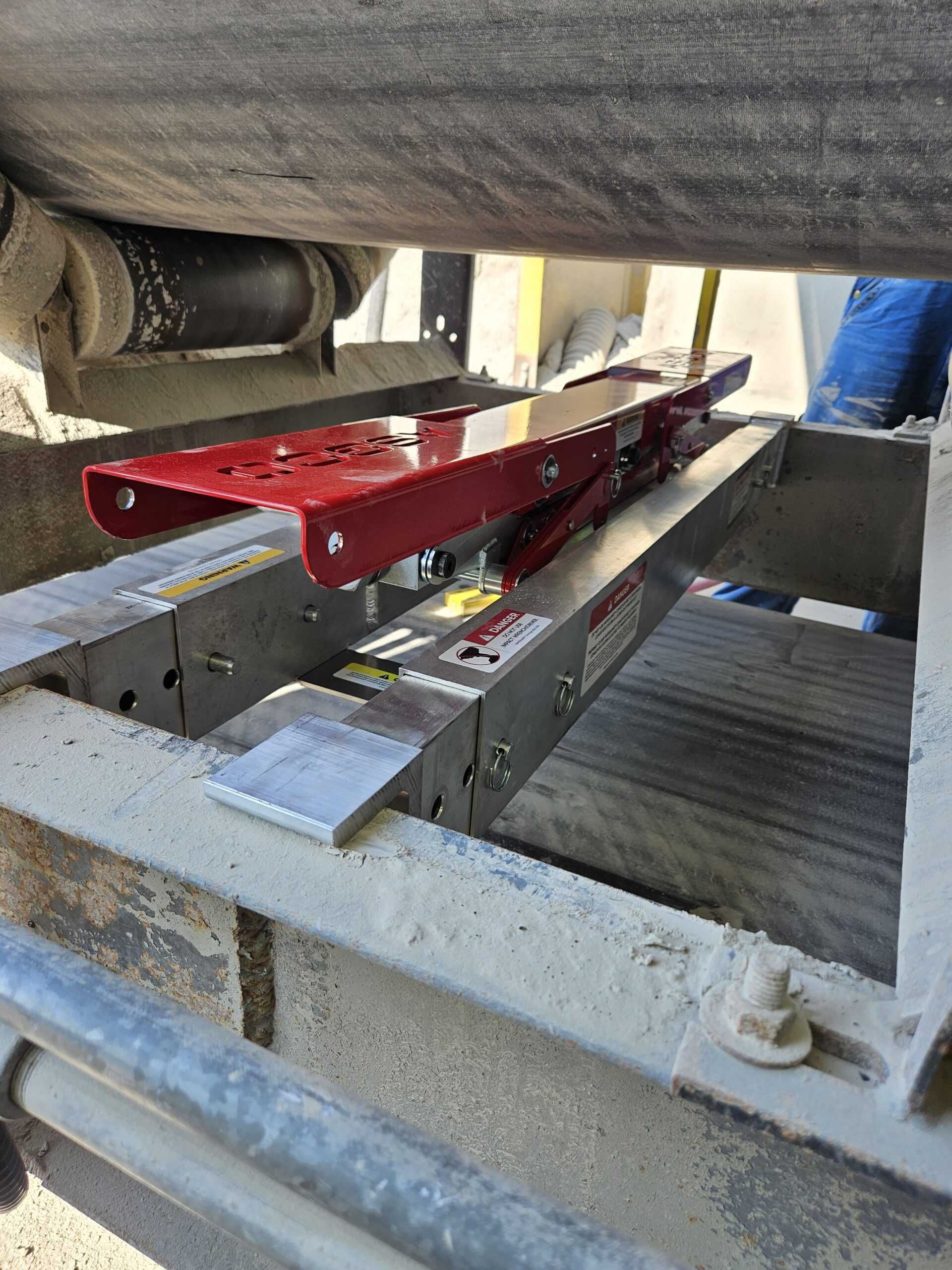

- Closed Height – 216 mm – 8.5″
- Max Lift Height – 482 mm – 19.0″
Part Numbers
| Part Number | belt width in | belt width mm | Conveyor Span min | Conveyor Span max | weight kgs | weight lbs | Closed Height | Max Lift Height |
|---|---|---|---|---|---|---|---|---|
| M-ASG-SGBL-3660 | 36 - 60 | 900 - 1500 | 1130 mm (44.5") | 1892 mm (74.5") | 39.9 | 88.00 | 216 mm (8.50") | 482 mm (19.00") |
| M-ASG-SGBL-4872 | 48 - 72 | 1200 - 1800 | 1435 mm (56.50") | (2197) mm (86.50") | 47.2 | 104.00 | 216 mm (8.50") | 482 mm (19.00") |
