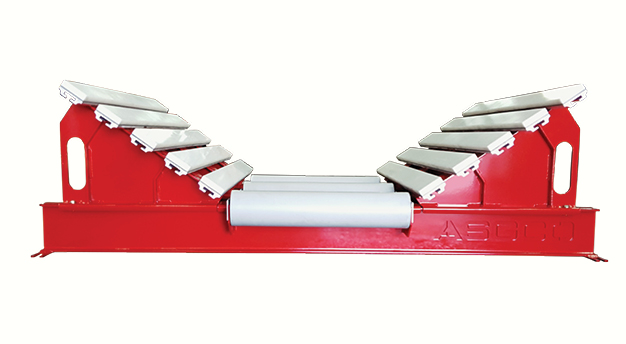

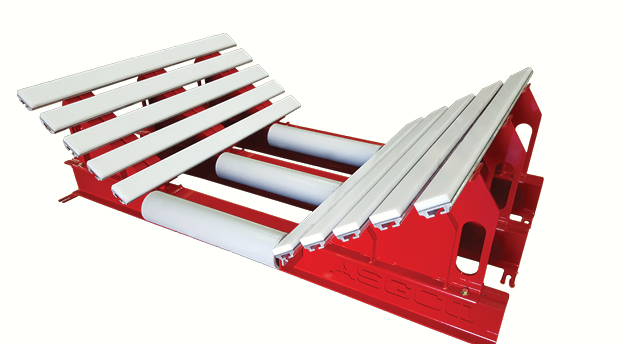

Slide-N-Roll Conveyor Slider Bed

Provides Powerful Load Support

Slide-N-Roll Beds provide for an powerful load support while helping to stop dust and spillage in the conveyor load zone. By replacing the side troughing idlers with low friction UHMW bars, reduced belt friction will occur. In addition it will remove gaps between the conveyor belt idlers to provide an effective sealing surface for surrounding skirting.

Slide-N-Roll Conveyor Slider Bed

Provides Powerful Load Support

Slide-N-Roll Beds provide for an powerful load support while helping to stop dust and spillage in the conveyor load zone. By replacing the side troughing idlers with low friction UHMW bars, reduced belt friction will occur. In addition it will remove gaps between the conveyor belt idlers to provide an effective sealing surface for surrounding skirting.

PROVIDES POWERFUL LOAD SUPPORT

Design Features
  • Increase Belt Life – by eliminating the gaps, scalloping and pinch points between the belt and the skirt liners which can cut and gouge the belt, are eliminated.

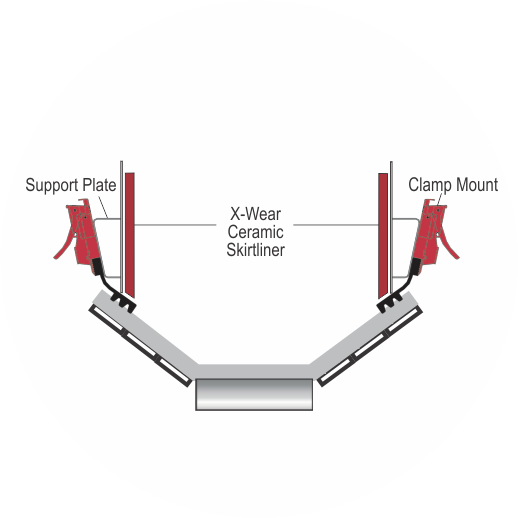

  • Seals the Transfer Point – by supporting the belt edge on a flat surface that allows the skirting to work more effectively for an effective seal.
  • Robust Designed – steel frames and 1” (25mm) thick UHWM slider bars provide excellent wear life.
  • Engineered and Designed – beds can be made into 4′ (1200mm), 5′ (1500mm), 6’ (1800mm) or 10′ (3000mm) lengths.

    • Any troughing angle.
    • Number of frames will be determined by each application.

ELIMINATE SPILLAGE AND PROVIDE EFFECTIVE LOAD SUPPORT

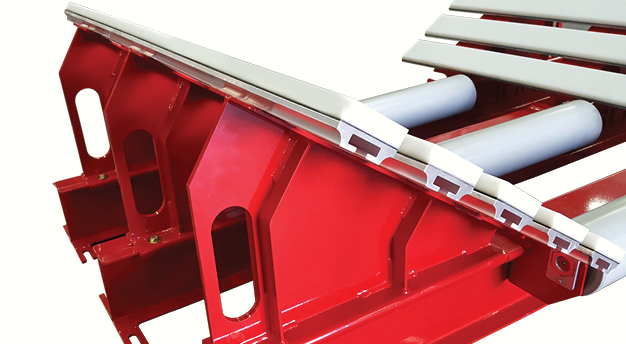

Robust Design – using steel frames and 1” thick UHMW slider bars to provide excellent wear life.

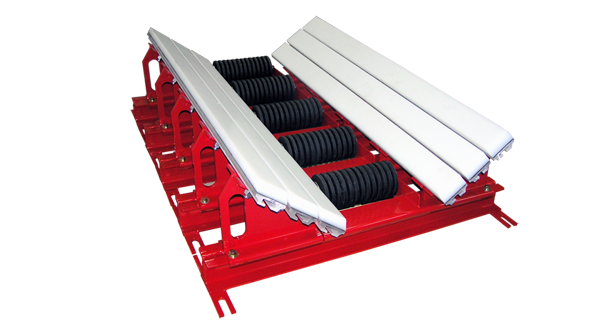

Impact Bars – Cushioned with rubber to absorbs impact.

Available– Impact Slide-N-Roll and 3 Roll CEMA F Impact Slide-N-Roll Bed

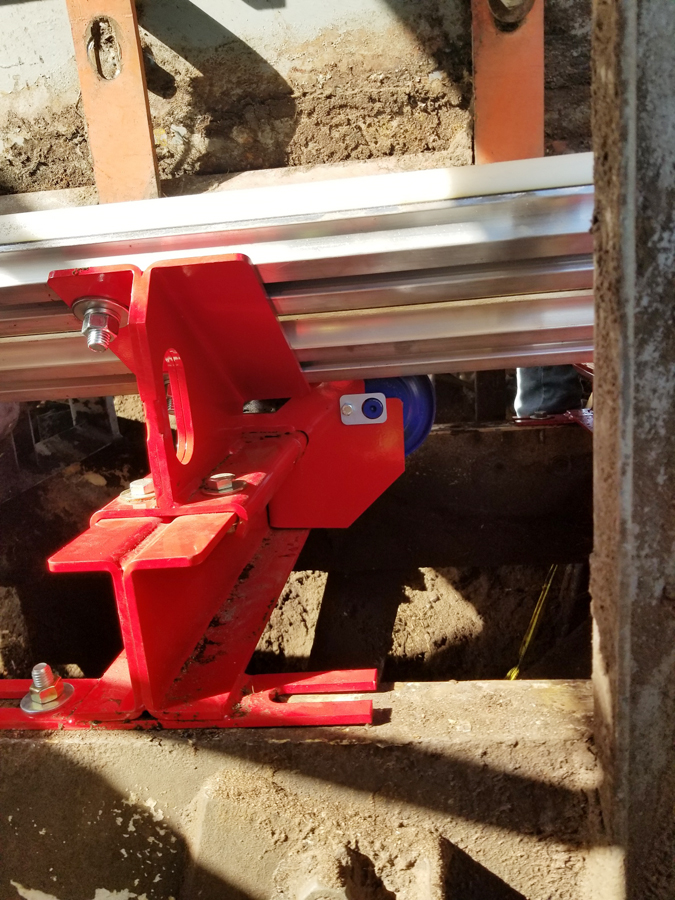

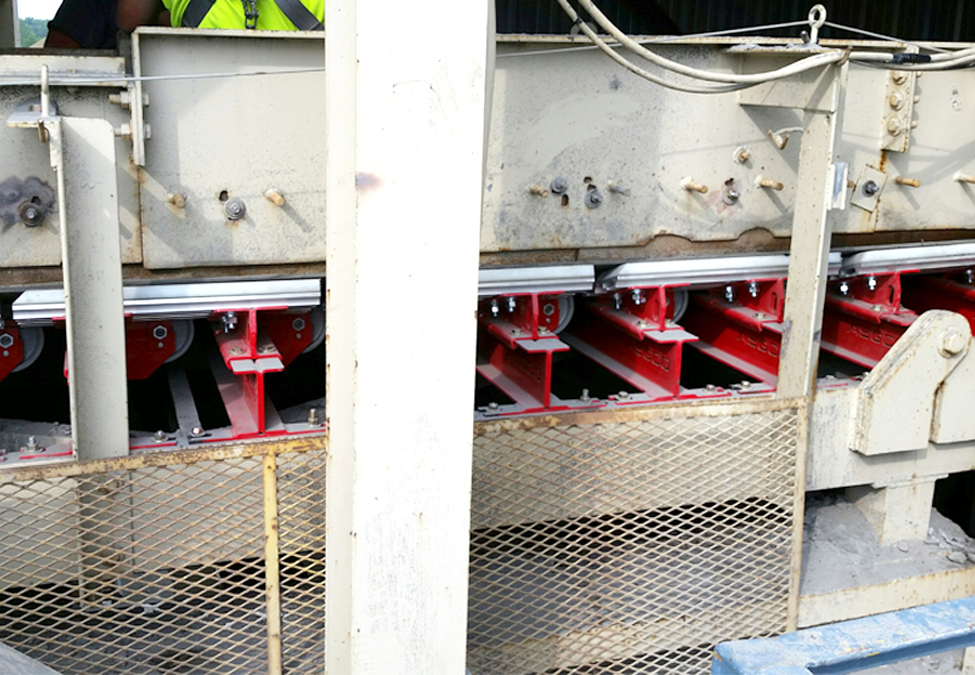

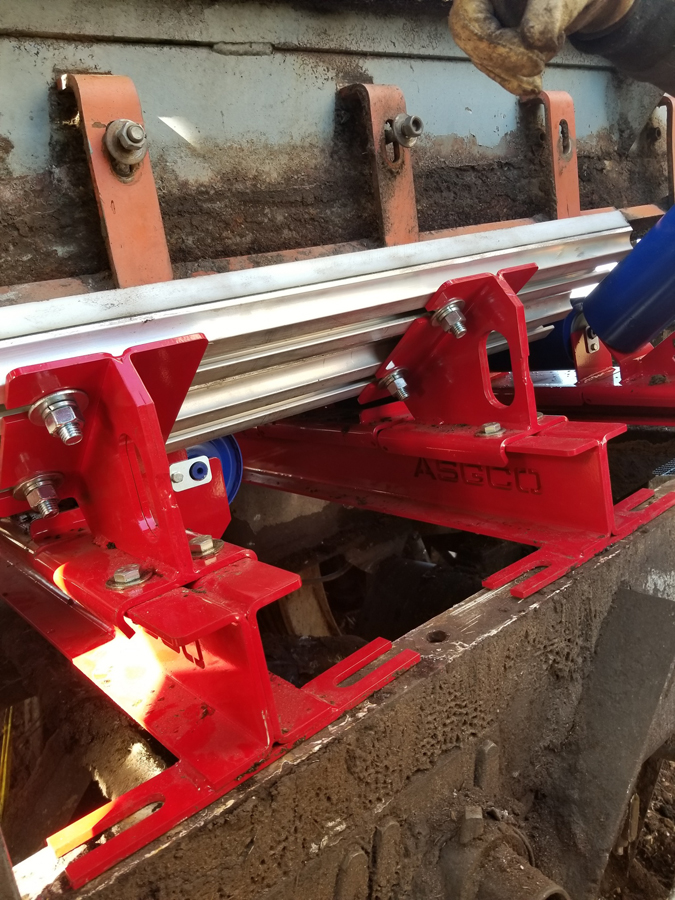

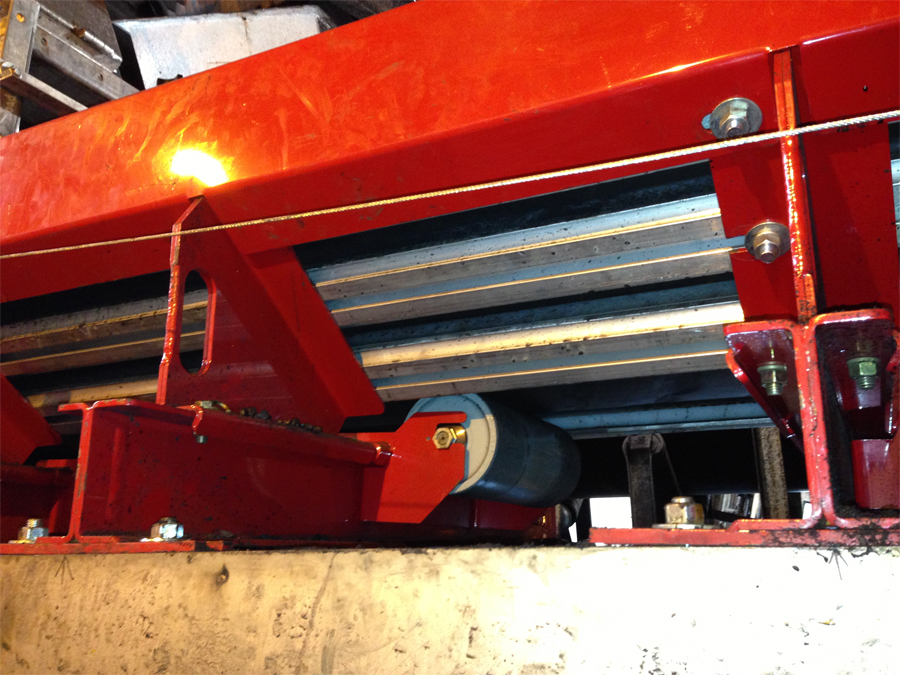

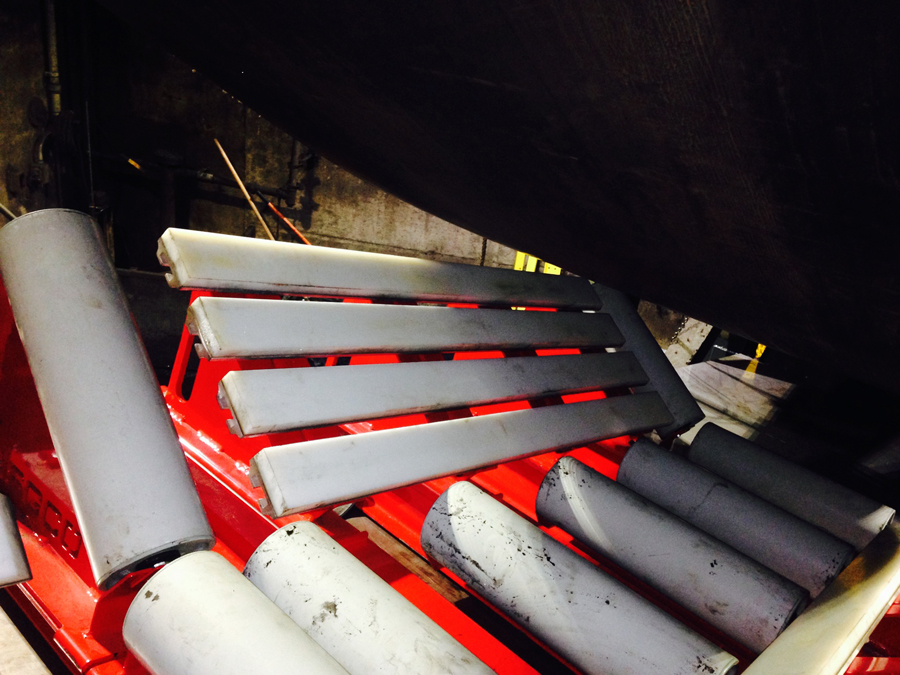

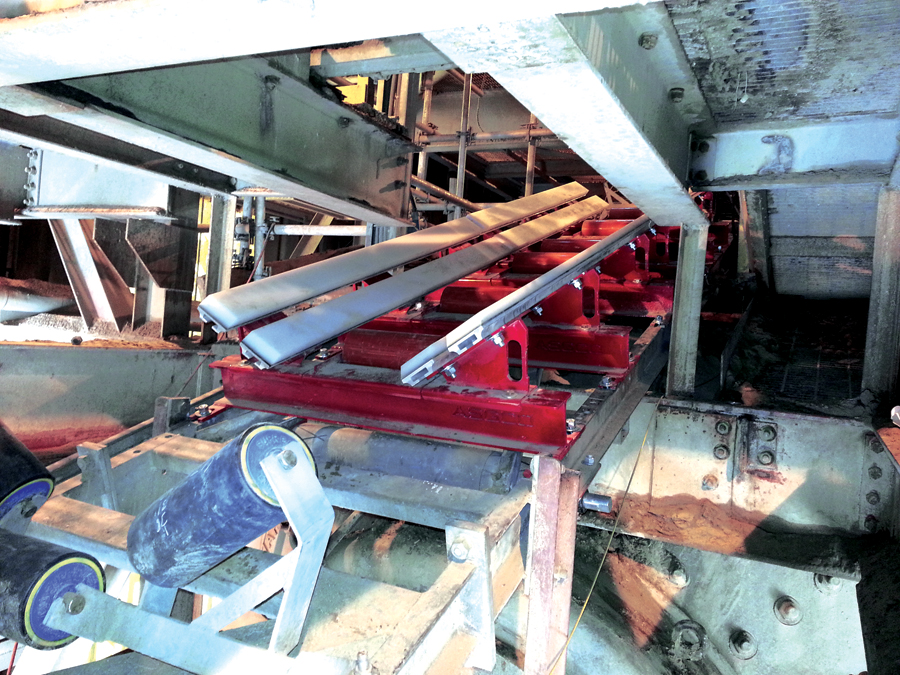

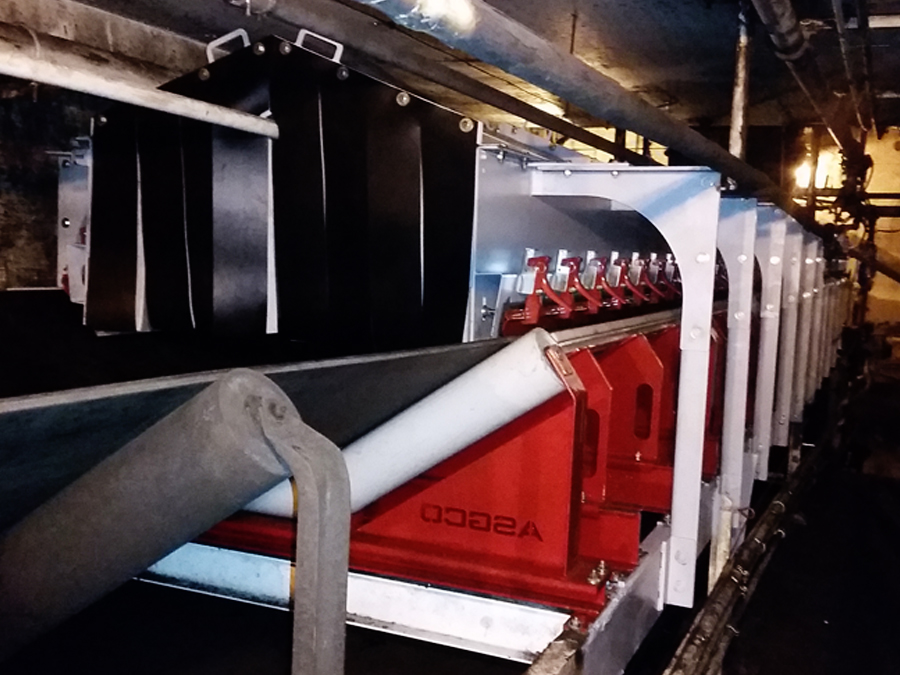

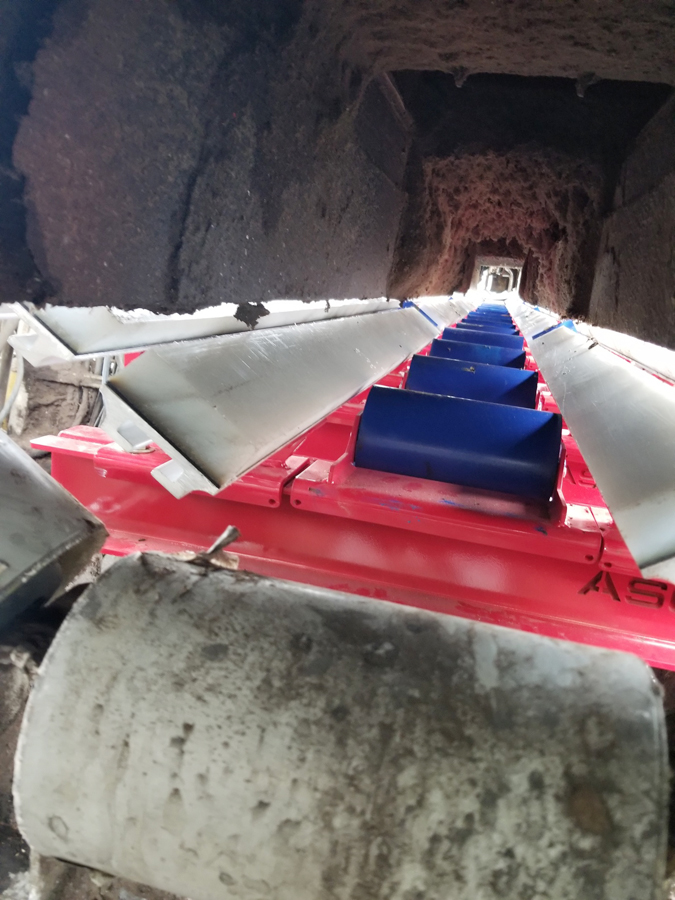

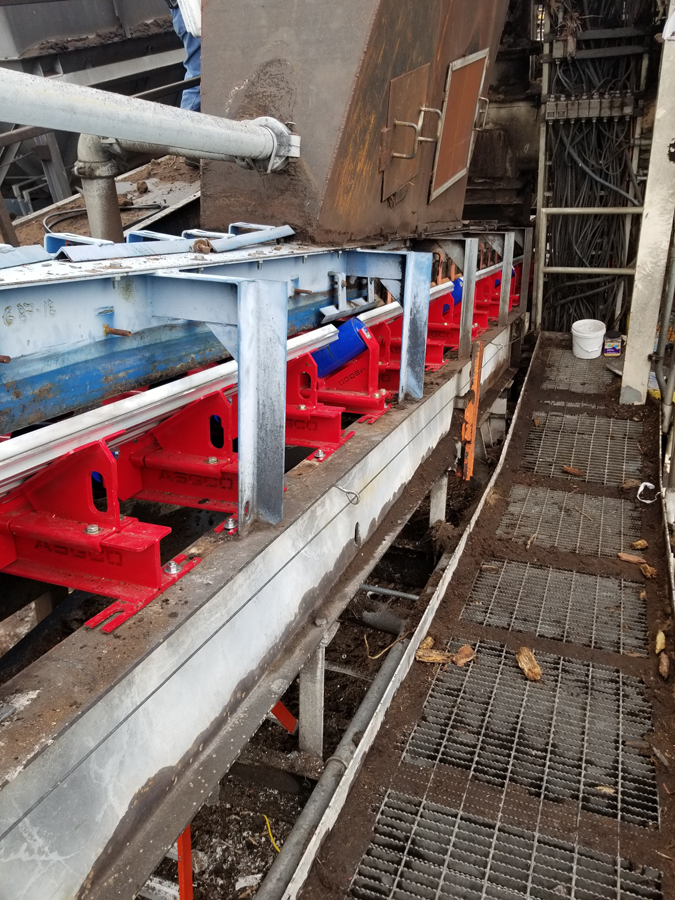

Gallery

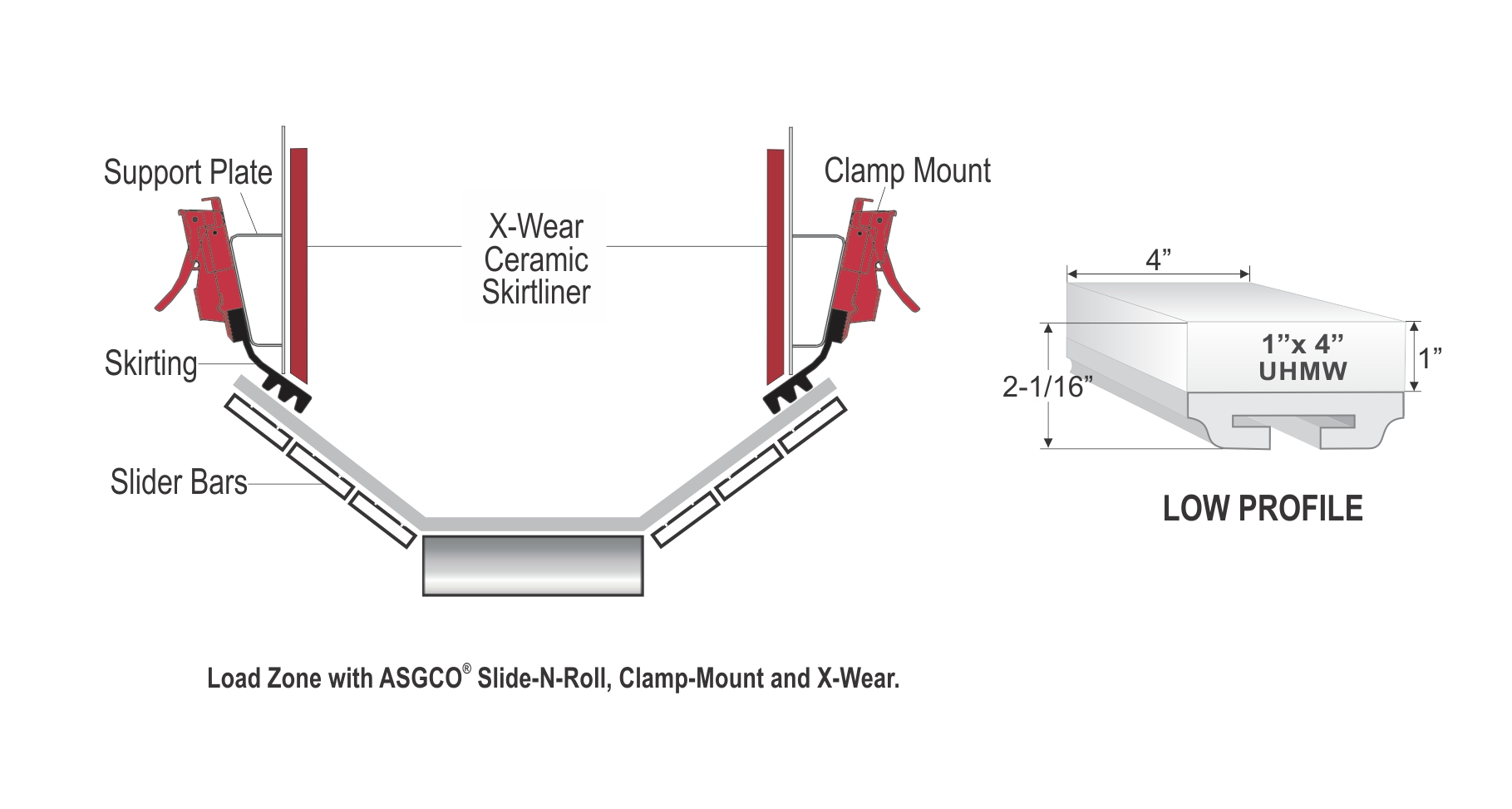

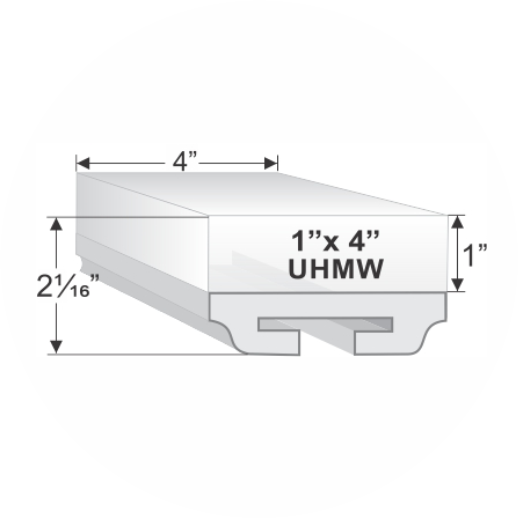

Replacement Bar



Product Specifications

Maximum Belt Speed – 800 fpm (4.0 m/sec)

Applications – Aggregate, Sand & Gravel, Redi-Mix and Asphalt, Cement, Wood Processing, Recycling

Replacement Parts – Center Idler Rolls, Low Profile Frame (1” thick, 4” wide) and S&R Low Profile Frame.

Impact Bars – Length 2”, 4” or 5”

Trough Angle – available in 20°, 35° and 45°

Part Numbers

Slide-N-Roll™ – 4 Ft. Long Bed (No Center Bars) 2 Supports – 20,35,45

Part Number No.of Bars Belt Width in. Belt Width mm. Weight Lbs
M-S&RLD-24-4-48-2-(XX) 4 24 600 179
M-S&RLD-30-4-48-2-(XX) 4 30 750 205
M-S&RLD-36-6-48-2-(XX) 6 36 900 272
M-S&RLD-42-6-48-2-(XX) 6 42 1050 305
M-S&RLD-48-6-48-2-(XX) 6 48 1200 347
M-S&RLD-54-8-48-2-(XX) 8 54 1350 389
M-S&RLD-60-8-48-2-(XX) 8 60 1500 431
M-S&RLD-72-10-48-2-(XX) 10 72 1800 472

Part Numbers

Slide-N-Roll™ – 5 Ft. Long Bed (No Center Bars) 3 Supports – 20,35,45

Part Number No. of Bars Belt Width in. Belt Width mm. Weight Lbs
M-S&RLD-24-4-60-3-(XX) 4 24 600 252
M-S&RLD-30-4-60-3-(XX) 4 30 750 305
M-S&RLD-36-6-60-3-(XX) 6 36 900 381
M-S&RLD-42-6-60-3-(XX) 6 42 1050 436
M-S&RLD-48-6-60-3-(XX) 6 48 1200 490
M-S&RLD-54-8-60-3-(XX) 8 54 1350 805
M-S&RLD-60-8-60-3-(XX) 8 60 1500 1120
M-S&RLD-72-10-60-3-(XX) 10 72 1800 1352
